Daylight Signal Lamp - Francis Signal Lamps - ALDIS Signalling Lamp - Naval Long-Range Signalling Lamp FSP127 - Marine Equipment Directive (MED) 2014/90/EU MED
SOLAS & MED Approved Signal Lamp. Featuring a Polypropylene carrying case, with bespoke foam inserts & integrated charging socket, 4 lamps, battery in case, switch mode battery charger and red / green coloured filter set.
Daylight Signalling Light – Francis Searchlights – ALDIS Morse Signal Light – Naval Long-Range Communication Lamp FSP127

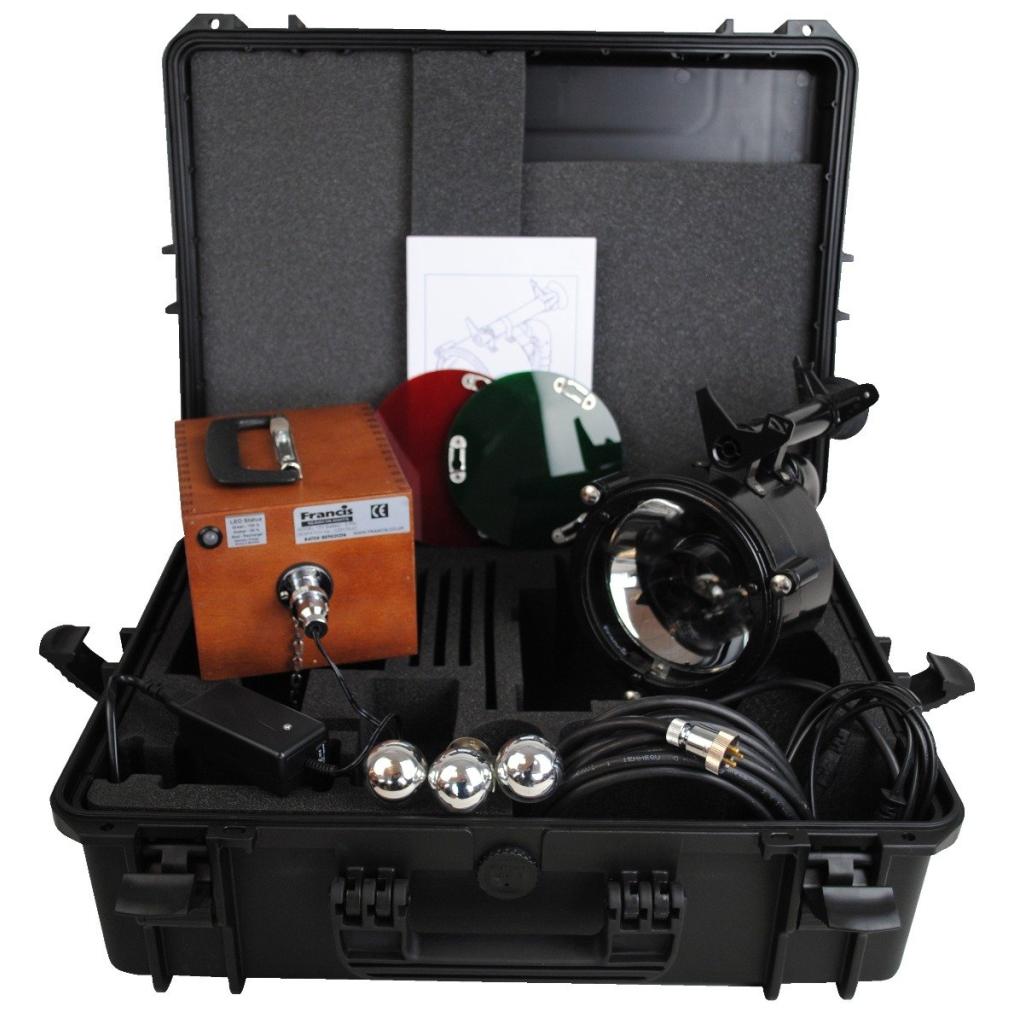

This 60W Francis FSP127 / MK 5 Aldis Lantern is fully type approved to MED / SOLAS requirements — world renown, high quality and dependable. Now available in the FSP127 complete kit solution! Featuring a superior Polypropylene carrying case for transporting the equipment, designed with bespoke foam inserts & integrated charging socket, 4 lamps, battery in case, switch mode battery charger and red /green coloured filter set.
Replacment 12V and 24V 60W Bulbs Here
Meets MED / SOLAS Regulations:
The FRANCIS FSP 127 (MKV) signalling lantern fulfils the requirements and is fully approved to the MED Regulations and SOLAS, which states that:
“all ships of over 150 tons gross tonnage, when engaged on International voyages, shall have onboard an efficient daylight signalling lamp which shall not be solely dependent upon the ship’s main source of electrical power."
FSP127 Complete Kit Key Features & Equipment Benefits
- SOLAS & MED Approved
- The 127mm (5”) handheld signalling light can be used on all vessels, for ship to ship signalling using Morse Code.
- The light is of aluminium, lightweight and robust construction and is fully waterproofed.
- If desired this unit can be used as a spotlight if thesignalling trigger and lamp switch are both left on.
- The Francis Signalling Lantern is approved by the UK Maritime & Coastguard Agency (MCA)
- Polypropylene carrying case for easy transportation of equipment
- bespoke foam inserts ]
- Integrated charging socket
- 4 x lamps
- Battery in case
- switch mode battery charger
- red /green coloured filter set
SPECIFICATION
Features
• Capable of daylight signalling range of 8 miles.
• Beam divergence of 5°.
• Transmission rate of 12 words per minute achievable
• Light reduction & coloured filters provide control of
light output as required.
• 5.5 metres of supply cable fitted as standard.
• All aluminium construction, fitted with a super purity
aluminium parabolic reflector.
• Tubular and V sights are fitted as standard.
• Handle mounted switch to operate the lantern
• Signals made by triggering the tubular shutter system
which interrupts the light from the reflector.
• Semi gloss black stoved enamel paint finish.
