Fast-Inflation Shelter
Product Description:
Introducing the Sealed Beam Fast-Inflation Shelter from I.C. Brindle, your ultimate solution for rapid deployment and versatile usage in various scenarios.
Made with detail and precision using the latest flame-retardant, waterproof, and water-repellent materials—to meet your exact needs. This shelter features large vehicle flaps for anchoring, versatile window options, connectable doors, and conveniently located inflation/deflation valves.
Each unit serves as your 'turnkey' solution, fully equipped and 'ready to go' with service ports, carry bags, repair kits, and heavy-duty stakes.
CAD drawings are available for customisation, and onsite training is provided. Ideal for versatile and efficient deployment in critical situations, with organisational branding available upon request.
Request your free quote
Answer the following questions below so we can give you a quote on your selected item(s)
Key Features & Equipment Benefits:
- Large vehicle flaps on the sides of the shelters allowing the shelter to be weighed down on a hard surface.
- Windows on each side which have 3 usable options, a fly mesh for ventilation.
- Clear PVC Cover to allow light and a Cover for complete privacy.
- The ends of the shelters have full sized doors which are connectable so you could put two or more shelters together to make a large welfare area if required.
- There is also a smaller pedestrian door inset into the larger door, this not only helps with privacy but regulates personnel flow and acts as a single door opening.
- Inflation/Deflation Valves for inflation with an electric pump or BA Cylinder and Hose.
- An Over Pressure Valve which makes sure you cannot over inflate the shelter .
- A Pressure Sensor Valve that allows and regulation pump to be used, this is particularly useful if your using the shelters for long periods of time as the pump will detect any drop in pressure and top up accordingly.
- 'D' Rings sewn into the internal beams to allow accessories (such as lighting) to be secured to.
- Service port at each end.
- Carry Valise/Bag.
- Full Repair Kit.
- Heavy Duty Stakes.
Used For:
- Medical Triage and Field Hospitals
- Military Operations (Command Centres)
- Search and Rescue Missions
- Humanitarian Relief Efforts
- Crime Scene Preservation
- Airport Emergency Response
What to Expect Once an Order is Placed:
- After receiving your order we will discuss your requirements in full then providing you with full set of CAD drawings for your approval prior to the manufacturing. This enable all parties be assured that the shelters are supplied exactly as required.
- All shelters are made to order, This allows us to tailor your order to meet your exact needs, making any specific changes or additions you feel would be beneficial, such as adding room dividers, pockets or changing window/door position for example.
- On request we offer a morning's onsite training to demonstrate the correct inflation, deflation and packing methods to any trainers or end user if required.

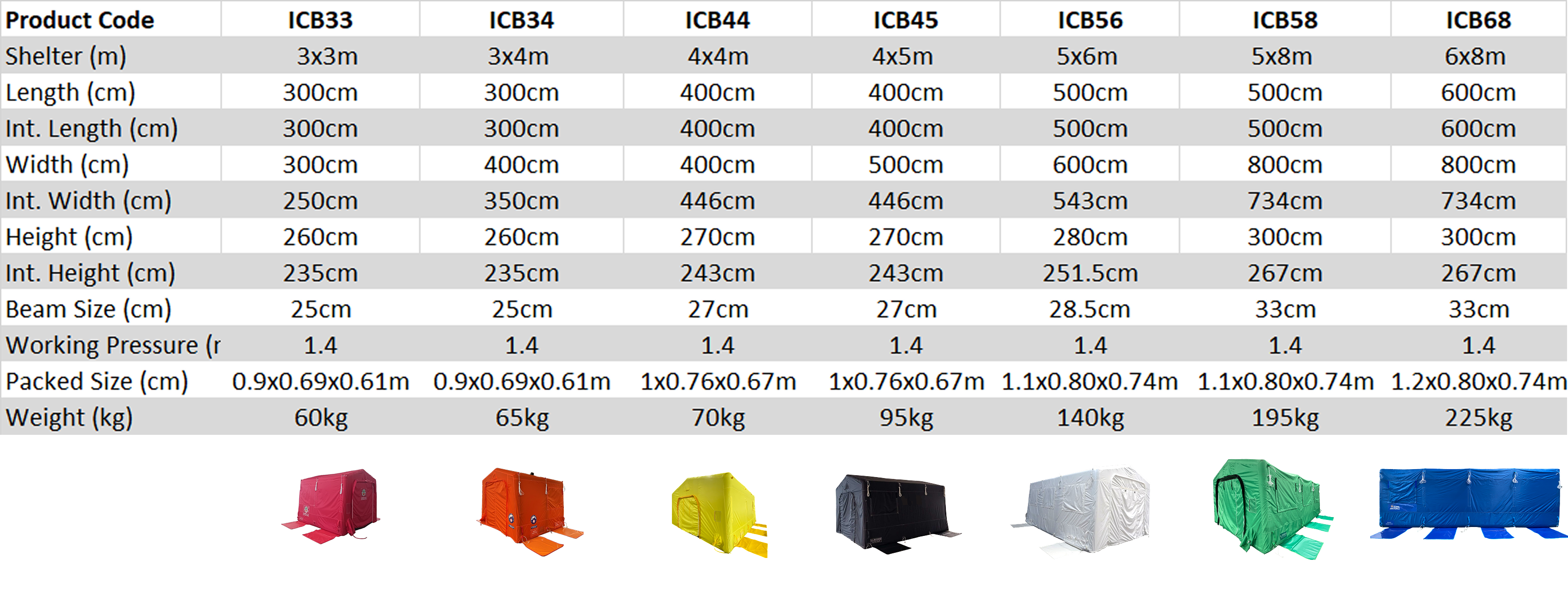

Product Code | ICB33 | ICB34 | ICB44 | ICB45 | ICB56 | ICB58 | ICB68 | ICBcustom |
---|---|---|---|---|---|---|---|---|
Shelter (m) | 3x3m | 3x4m | 4x4m | 4x5m | 5x6m | 5x8m | 6x8m | Made to Spec |
Ext. Length (cm) | 300cm | 300cm | 400cm | 400cm | 500cm | 500cm | 600cm | Made to Spec |
Int. Length (cm) | 300cm | 300cm | 400cm | 400cm | 500cm | 500cm | 600cm | Made to Spec |
Ext. Width (cm) | 300cm | 400cm | 400cm | 500cm | 600cm | 800cm | 800cm | Made to Spec |
Int. Width (cm) | 250cm | 350cm | 446cm | 446cm | 543cm | 734cm | 734cm | Made to Spec |
Ext. Height (cm) | 260cm | 260cm | 270cm | 270cm | 280cm | 300cm | 300cm | Made to Spec |
Int. Height (cm) | 235cm | 235cm | 243cm | 243cm | 251.5cm | 267cm | 267cm | Made to Spec |
Int. Floor Area (sq.m) | Made to Spec | |||||||
Beam Size (cm) | 25cm | 25cm | 27cm | 27cm | 28.5cm | 33cm | 33cm | Made to Spec |
Working Pressure (mbar) | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | Made to Spec |
Packed Size (cm) | Made to Spec | |||||||
Weight (kg) | 60kg | 64kg | 70kg | 75kg | 85kg | 95kg | 105kg | Made to Spec |
