Stealth and Tactical Operations Shelter
Product Description:
Introducing the Sealed Beam Fast-Inflation Stealth and Tactical Shelter from I.C. Brindle—designed for rapid, discreet deployment in stealth operations and tactical manoeuvres. Built for low visibility and quick setup, this shelter provides a secure and portable, concealed base for strategic operations in challenging environments.
Constructed from flame-retardant, waterproof, and water-repellent materials, our military-grade inflatable shelter meets the rigorous demands of tactical and defense organisations worldwide.
Each stealth inflatable shelter is 'ready to deploy,' equipped with service ports, carry bags, repair kits, and heavy-duty stakes, serving as your 'all-in-one' rapid deployment solution for forces needing fast and descrete mobility in the field—pre-packed and prepared for covert missions and training exercises.
These easily inflated tactical shelters can be enhanced with specialised features like integrated power systems, heating units, and lighting, along with modular flooring to elevate their function and performance as a tactical asset during covert operations.
CAD drawings are available for customisation to address specific operational needs, and on-site training is provided to ensure efficient deployment in critical situations. Organisational branding can be requested to align with specific squads and units, or mission identity.
Request your free quote
Answer the following questions below so we can give you a quote on your selected item(s)
Key Features & Equipment Benefits:
- Large vehicle flaps on the sides of the military-grade tent allowing the shelter to be weighed down on a hard surface.
- Windows on each side which have 3 usable options, a fly mesh for ventilation.
- Clear PVC Cover to allow light and a Cover for complete privacy.
- The ends of the shelters have full sized doors which are connectable so you could put two or more shelters together to make a large welfare area if required.
- There is also a smaller pedestrian door inset into the larger door, this not only helps with privacy but regulates personnel flow and acts as a single door opening.
- Inflation/Deflation Valves for inflation with an electric pump or BA Cylinder and Hose.
- An Over Pressure Valve which makes sure you cannot over inflate the shelter .
- A Pressure Sensor Valve that allows and regulation pump to be used, this is particularly useful if your using the shelters for long periods of time as the pump will detect any drop in pressure and top up accordingly.
- 'D' Rings sewn into the internal beams to allow accessories (such as lighting) to be secured to.
- Service port at each end.
- Carry Valise/Bag.
- Full Repair Kit.
- Heavy Duty Stakes.
Used For:
- Tactical Operations Command Centres
- Covert Temporary Barracks
- Stealth Training Scenarios
- Reconnaissance and Surveillance
- Tactical Search and Rescue Missions
- Stealth Humanitarian Relief Efforts
- Mobile Medical Facilities / Triage and Field Hospitals
What to Expect Once an Order is Placed:
- After receiving your order we will discuss your requirements in full then providing you with full set of CAD drawings for your approval prior to the manufacturing. This enable all parties be assured that the shelters are supplied exactly as required.
- All shelters are made to order, This allows us to tailor your order to meet your exact needs, making any specific changes or additions you feel would be beneficial, such as adding room dividers, pockets or changing window/door position for example.
- On request we offer a morning's onsite training to demonstrate the correct inflation, deflation and packing methods to any trainers or end user if required.
Technical Information:
- Please see the the Technical Specification tab below

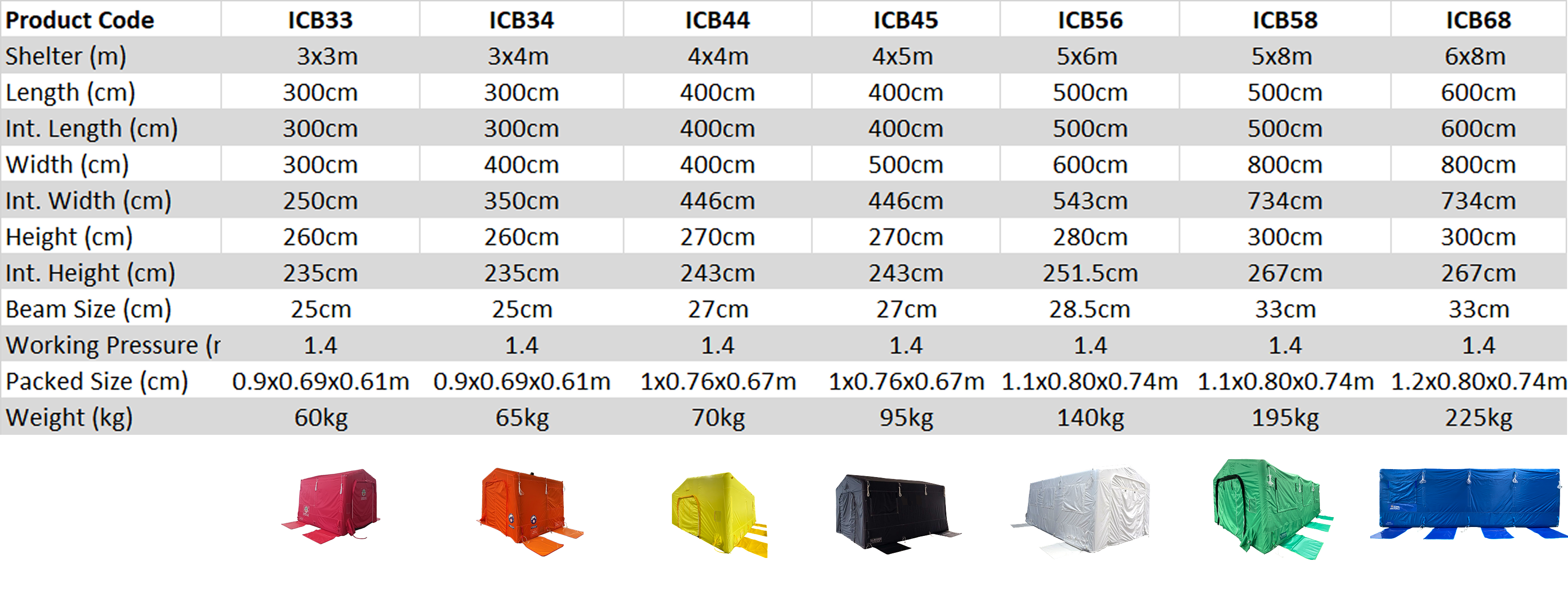

Product Code | ICB33 | ICB34 | ICB44 | ICB45 | ICB56 | ICB58 | ICB68 | ICBcustom |
---|---|---|---|---|---|---|---|---|
Shelter (m) | 3x3m | 3x4m | 4x4m | 4x5m | 5x6m | 5x8m | 6x8m | Made to Spec |
Ext. Length (cm) | 300cm | 300cm | 400cm | 400cm | 500cm | 500cm | 600cm | Made to Spec |
Int. Length (cm) | 300cm | 300cm | 400cm | 400cm | 500cm | 500cm | 600cm | Made to Spec |
Ext. Width (cm) | 300cm | 400cm | 400cm | 500cm | 600cm | 800cm | 800cm | Made to Spec |
Int. Width (cm) | 250cm | 350cm | 446cm | 446cm | 543cm | 734cm | 734cm | Made to Spec |
Ext. Height (cm) | 260cm | 260cm | 270cm | 270cm | 280cm | 300cm | 300cm | Made to Spec |
Int. Height (cm) | 235cm | 235cm | 243cm | 243cm | 251.5cm | 267cm | 267cm | Made to Spec |
Beam Size (cm) | 25cm | 25cm | 27cm | 27cm | 28.5cm | 33cm | 33cm | Made to Spec |
Working Pressure (mbar) | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | Made to Spec |
Packed Size (cm) | 0.9x0.69x0.61m | 0.9x0.69x0.61m | 1x0.76x0.67m | 1x0.76x0.67m | 1.1x0.80x0.74m | 1.1x0.80x0.74m | 1.2x0.80x0.74m | Made to Spec |
Weight (kg) | 60kg | 64kg | 70kg | 75kg | 85kg | 95kg | 105kg | Made to Spec |
