Globestock Confined Space Access Tripod - SENTRY Tripod Compact - Confined Space Tripod Sentry - Globestock SENTRY Tripod 230 Compact Model - GSE230C

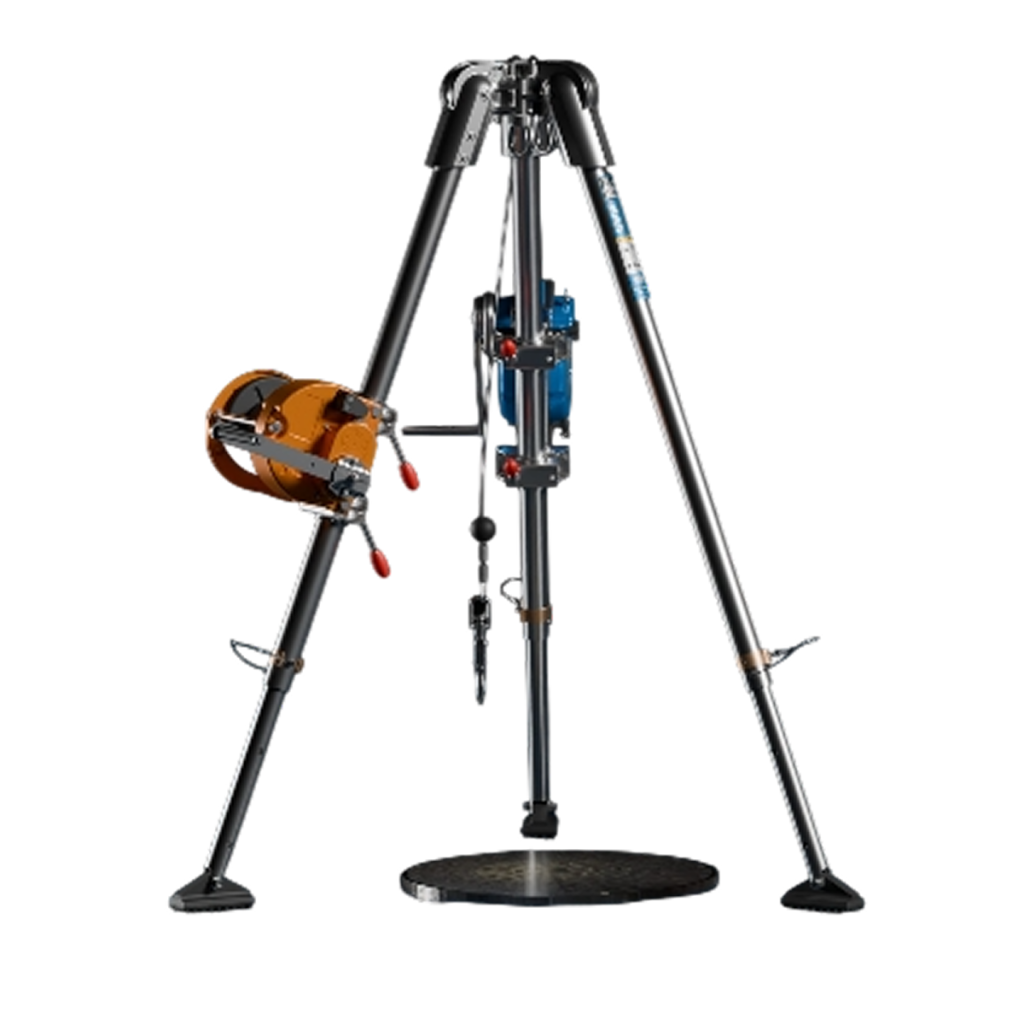

SENTRY Confined Space Tripod Compact (GSE230C). A lightweight, robust anchorage solution for safe confined space entry and rescue. The compact design is easy to transport, set up, and store, with folding legs for quick deployment on site. A durable three-pulley head offers multiple connection options, and the GSE230C supports up to two people simultaneously (max 200kg personnel) or 250kg loads, suitable for a wide range of confined space applications.
Confined Space Safety Tripod – SENTRY Compact Tripod – Confined Access Tripod Sentry – Globestock SENTRY 230 Compact Model – GSE230C
The SENTRY Confined Space Tripod Compact (GSE230C) is a lightweight, durable tripod designed for safe confined space entry and rescue. Easy to transport, set up, and store, this certified compact tripod features folding legs for quick deployment and a three-pulley head for hoisting and lifting. The tripod supports up to two people (max 200kg) and 250kg loads, making it ideal for manholes, shafts, tanks, and utility vaults. Certified to EN 795:2012, CEN/TS 16415:2013, ISO 12100:2010, ANSI/ASSP Z359.18, CSA Z259.15-22, AS/NZS 5532, and OSHA standards, the GSE230C provides reliable anchorage for industrial and rescue operations.
Key Features & Equipment Benefits:
- Compact Design: easy to transport, set up, and store on-site
- Folding Legs: quick and simple deployment in confined spaces
- Three-Pulley Head: supports multiple connection options for lifting, lowering, and hoisting
- Two-Person Capacity: safe for up to two people simultaneously (max 200kg personnel)
- Maximum Load Capacity: supports equipment and rescue loads up to 250kg
- Lightweight Construction: easy to handle without compromising strength or stability
- Versatile Applications: suitable for manholes, shafts, tanks, and utility vaults
- Certified Safety: Meets international EN, ISO, ANSI, CSA, AS/NZS, and OSHA standards
Technical Information:
- Item Code: GSE230C
- MWL: 2 persons (200kg) / Equipment 250kg
- Approx. Weight: 18.3 kg / 40 lbs
- Dimensions (Collapsed *): H 1,131 mm × Min H 963 mm × Base 841 mm × Footprint 1,112 mm
- Dimensions (Extended **): H 1,747 mm × Min H 1,579 mm × Base 1,315 mm × Footprint 1,585 mm
- Pulley Head: 270 × 1,217 × 180 mm
- Folding Legs: Quick deployment
- Certifications: EN 795:2012 B, CEN/TS 16415:2013, ISO 12100, ANSI Z359.18, CSA Z259.15-22, AS/NZS 5532, OSHA 1910.140 & 1926.502
| Item Code | MWL | Weight (Approx.) | Conformities |
| GSE230C |
200 kg (personnel) / 440 lbs |
18.3 kg / 40 lbs |
EN 795:2012 type B |
| GSE230S | 250 kg (loads) / 551 lbs | 20.8 kg / 45.8 lbs |
EN 795:2012 type B |
Folded Dimensions:
| Size | A | B | C |
| COMPACT (GSE230C) | 270 mm / 10.63″ | 1,217 mm / 47.91″ | 180 mm / 7.09″ |
| STANDARD (GSE230S) | 270 mm / 10.63″ | 1,527 mm / 60.12″ |
180 mm / 7.09″ |
Folded Dimensions:
| Size | A | B | C | D |
| COMPACT (GSE230C)* | 1,131 mm / 44.53″ | 963 mm / 37.91″ | 841 mm / 33.11″ | 1,112 mm / 43.78″ |
| COMPACT (GSE230C)** | 1,747 mm / 68.82″ | 1,579 mm / 62.24″ | 1,315 mm / 51.77″ | 1,585 mm / 62.44″ |
| STANDARD (GSE230S)* | 1,421 mm / 55.94″ | 1,253 mm / 49.33″ | 1,064 mm / 41.89″ | 1,334 mm / 52.48″ |
| STANDARD (GSE230S)** | 2,307 mm / 90.83″ | 2,172 mm / 85.43 | 1,755 mm / 69.09″ | 2,015 mm / 79.33″ |
* at lowest setting
** at tallest setting
SPECIFICATION
SENTRY Tripod Compact (GSE230C)
-
Item Code: GSE230C
-
Maximum Working Load (MWL): 2 persons (max 200kg / 440 lbs) / Equipment 250kg / 551 lbs
-
Approx. Weight: [insert weight]
Assembled Dimensions:
-
-
Collapsed / Lowest Setting:
-
Height: 1,131 mm / 44.53″
-
Minimum Working Height: 963 mm / 37.91″
-
Base Width: 841 mm / 33.11″
-
Footprint Width: 1,112 mm / 43.78″
-
-
-
-
Extended / Tallest Setting:
-
Height: 1,747 mm / 68.82″
-
Minimum Working Height: 1,579 mm / 62.24″
-
Base Width: 1,315 mm / 51.77″
-
Footprint Width: 1,585 mm / 62.44″
-
-
-
-
Pulley Head Dimensions: 270 × 1,217 × 180 mm / 10.63″ × 47.91″ × 7.09″
-
Folding Legs: Quick and easy deployment
-
Certifications / Standards: EN 795:2012 Type B, CEN/TS 16415:2013, ISO 12100:2010, ANSI/ASSP Z359.18-2017 Type A, CSA Z259.15-22 Class A, AS/NZS 5532:2013, OSHA 1910.140 & 1926.502
-
