Globestock G-Winch Certificated for Personnel lifting Winch - Globestock Manual MOB Winch – 20m and 40m Heavy-Duty Certified Winch for Manually Raising or Lowering of Personnel working at height - GSE070
Manually operated rescue winch designed for lifting or lowering personnel or materials in confined spaces, fall arrest, or working at height. Rated up to 250 kg, featuring an automatic anti-run brake for enhanced safety. Suitable for rescue operations, maintenance, and access tasks. Compatible with G.Tripod mounting systems and available with galvanised or stainless steel lifelines for durability in harsh environments.
Choose from 3 Options:
GSE070-20G Winch 250kg with 20m Galvanised Rope
GSE070-40G Winch 250kg with 40m Galvanised Rope
GSE070-40SSK Winch 200kg with 40m Stainless Steel Rope
Globestock GSE070 G.Winch – Certified Manual Winch for Personnel Lifting, Rescue & Confined Space Access
The Globestock G.Winch is a heavy-duty, manually operated rescue winch engineered for the safe and controlled raising or lowering of personnel or materials during confined space access, fall arrest scenarios, or working at height. Certified for man-riding applications, the G.Winch features a 1:8.9 gear ratio for efficient lifting and an automatic anti-run brake to prevent free-spooling in the event the handle is released.
Suitable for both routine access and emergency rescue, this versatile personnel recovery device can be quickly mounted to various anchor systems and davit ranges (using compatible brackets). With a maximum working load of 250 kg, and a lifeline length of up to 40 metres in galvanised or stainless steel, the G.Winch offers strength, reliability, and peace of mind for high-risk work environments.
Ideal for industries requiring fall protection systems, confined space entry, and working at height safety gear.
Key Features & Equipment Benefits:
- Certified For Lifting Personnel: The only winch specifically certified for routine and rescue lifting of people—guaranteeing full compliance and maximum safety on site.
- Anti-Run Braking Mechanism: Automatically locks if the winding arm is released, keeping the user safely suspended until control is regained.
- Hard-Wearing Pressed Steel Body: Durable and built to withstand demanding environments for long service life.
- Gear Ratio 1:8.9: Enables easy personnel lifting with 50mm rope retrieval per handle rotation.
- Maximum Working Load – 250kg: Suitable for lifting both personnel and equipment safely and securely.
- 20-Metre Galvanised Steel Lifeline: Strong, corrosion-resistant cable ideal for regular use in harsh conditions.
- Auto-Lock Carabiner: Ensures quick, secure attachment to harnesses or anchor points during rescue or access operations.
- Conforms To European Directive 2006/42/EC: Fully compliant with Machinery Directive safety regulations for lifting operations.

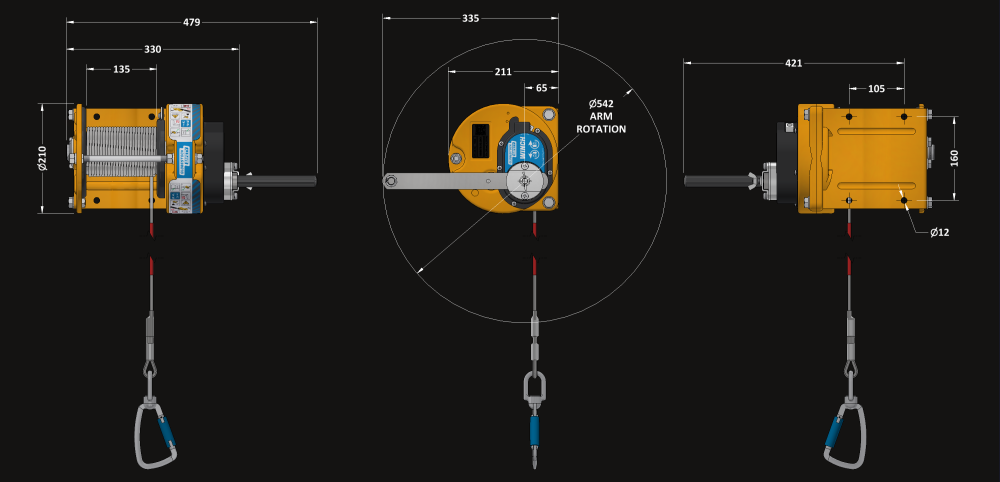

Winch Dimensions:
Technical Information:
- Maximum Working Load (MWL): Up to 250 kg (551 lbs)
- Lifeline Length Options: 20 m or 40 m
- Brake System: Automatic anti-run braking mechanism
- Construction: Heavy-duty pressed steel housing
- Lifeline Material: Available in galvanised or stainless steel rope
- Karabiner: Auto-locking snap hook (material matches rope type)
- CE certified. Conforms to European Directive 2006/42/EC
Item Code | MWL | Weight | Lifeline Length | Lifeline & Karabiner Material |
GSE070-20G | 250kg | 20.5kg | 20m | Galvanised Steel |
GSE070-40G | 250kg | 22kg | 40m | Galvanised Steel |
GSE070-40SSK | 200kg | 22kg | 40m | Stainless Steel |
Globestock Safety Winch Videos
SPECIFICATION
Globestock Winch Key Features
-
Anti-run brake
-
Gear ratio 1:8.9 (for easy personnel lifting, 50mm retrieval per rotation)
-
150kg or 250kg MWL models
-
Cable lengths of 20m to 50m available (250kg model max. 40m)
-
Galvanised or stainless steel cables available, with auto-lock carabiner
-
Weight: 21.5kg (with 50m cable)
-
Can be mounted to G.Tripod via brackets
-
CE certified. Conforms to European Directive 2006/42/EC
Item Code | MWL | Weight | Lifeline Length | Lifeline & Karabiner Material |
GSE070-20G | 250kg | 20.5kg | 20m | Galvanised Steel |
GSE070-40G | 250kg | 22kg | 40m | Galvanised Steel |
GSE070-40SSK | 200kg | 22kg | 40m | Stainless Steel |
