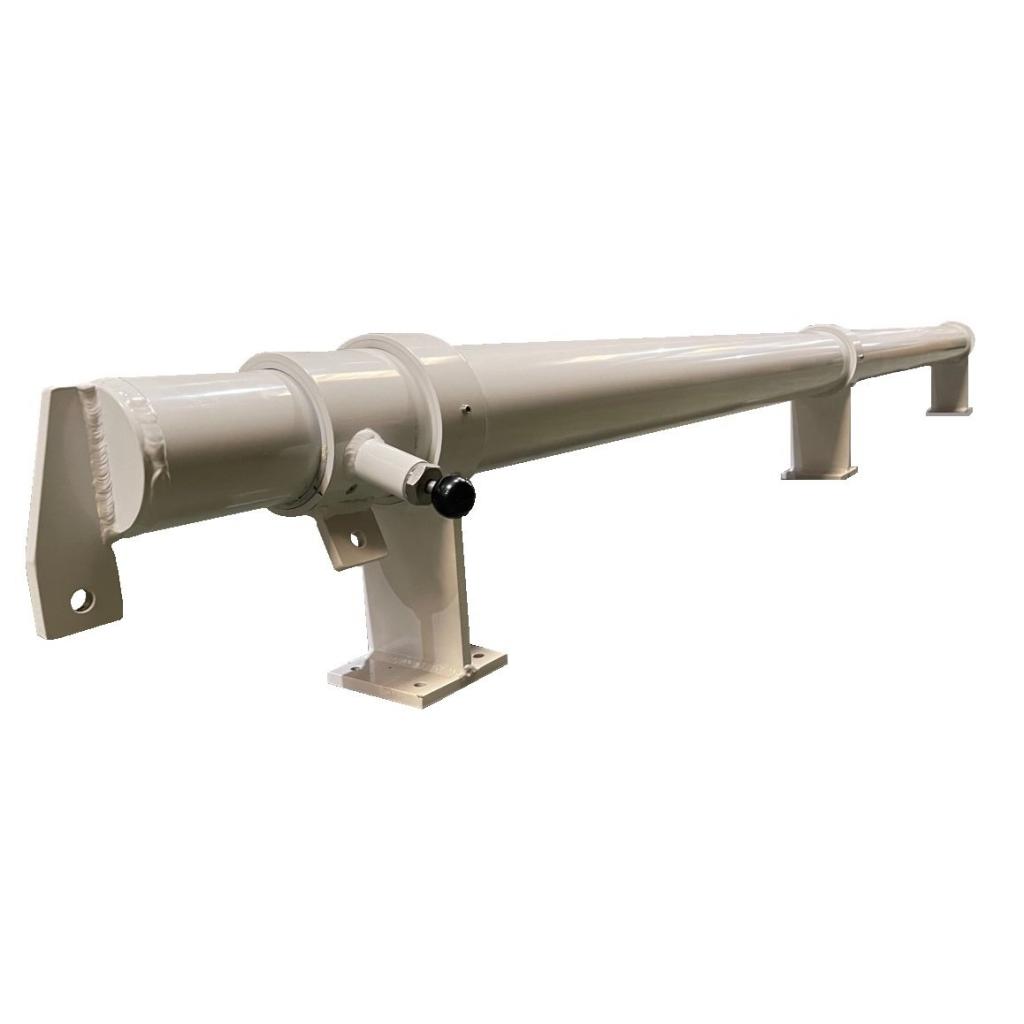

SB Rescue MOB Davit - Coach Roof, Bulk Head or Deck Mounted Horizontal Davit

The SB Rescue Davit is a telescopic, manually operated davit that may be used in conjunction with the SB Rescue Sling man overboard system. The davit enables a fast, effective and efficient man overboard recovery and overcomes the problems of freeboard, rescuer fatigue, lack of crew numbers and the difficulties encountered in recovering a dead weight from the water.

The SB Telescopic Davit is designed for rescue and recovery applications where a compact, horizontal davit arrangement is required onboard a vessel. It can be mounted to a coach roof, bulkhead or deck and positioned to provide the reach needed to recover a person or rescue equipment over the vessel's side.

For man overboard and other recovery or lifting applications, the SB Davit provides a secure lifting point for controlled recovery from the water. The telescopic boom can extend beyond the vessel's side, helping to position the lifting point over the recovery area while keeping the mounting arrangement compact when not in use. This makes the SB Davit suitable for vessels where available deck space is limited or where a conventional vertical davit arrangement is not practical.

When mounted horizontally to a suitable bulkhead or deck, the telescopic boom provides extended working reach while remaining compact when retracted. This makes the SB Davit a good choice for suitably sized vessels where a permanently installed lifting point is required without the footprint of a classic fixed davit.

When selecting the appropriate configuration, consideration should be given to the distance from the davit location to the vessel's side, available mounting width, height from the working deck to the davit location, and vertical distance from the mounting position to the waterline. These measurements help determine the appropriate davit configuration for the intended installation and working position.

The mounting arrangement should be selected according to the stability of the vessle. The davits' ntended load, working position and supporting structure. Contact I.C. Brindle for assistance in selecting the appropriate SB Telescopic Davit configuration for your application.

Key Features & Equipment Benefits:

• Oil-Lubricated Nylon Slides Between Inner and Outer Tubes: ensure smooth, low-friction extension and retraction with minimal maintenance
• Spring-Loaded Locking Mechanism: secures the davit safely in position when stowed or fully extended
• Equal-Length Inner and Outer Tubes: maximises reach while maintaining a compact storage profile
• Customisable Davit Length: tailored to match the required reach and available installation space
• Standard 3.0m Outer Tube With 0.17m Extension Tip: provides extended operational range straight out the box
• 1.39m Standard Extension: adds further reach for increased flexibility during recovery operations
• Option to Install Two Davits: enables casualty recovery on both port and starboard sides
• Manual Inner Tube Operation: provides reliable, easy control without complex systems
• Compatibility With Electric, Hydraulic, or Manual Winches: offers flexibility in choosing your preferred recovery method (see full range here)
• Aluminium Construction: delivers a strong, lightweight, corrosion-resistant solution
• Jotun Penguard Marine Paint Finish: protects against harsh marine conditions for long-lasting performance
• Custom-Made Using Standardised Components: ensures a perfect vessel-specific fit while keeping manufacturing costs down

Note - Although an estimate can be provided each davit is made specifically for the vessel and the following information is needed for an accurate quotation:

Technical Information:

• Standard’ overall stowed length of the davit is 3.17m
• Standard telescopic extension is 1.39m in length
• Three mounting brackets has a weight of approximately 45kg.
• Main body of the davit and its outer sleeve are manufactured using a marine grade of aluminium
