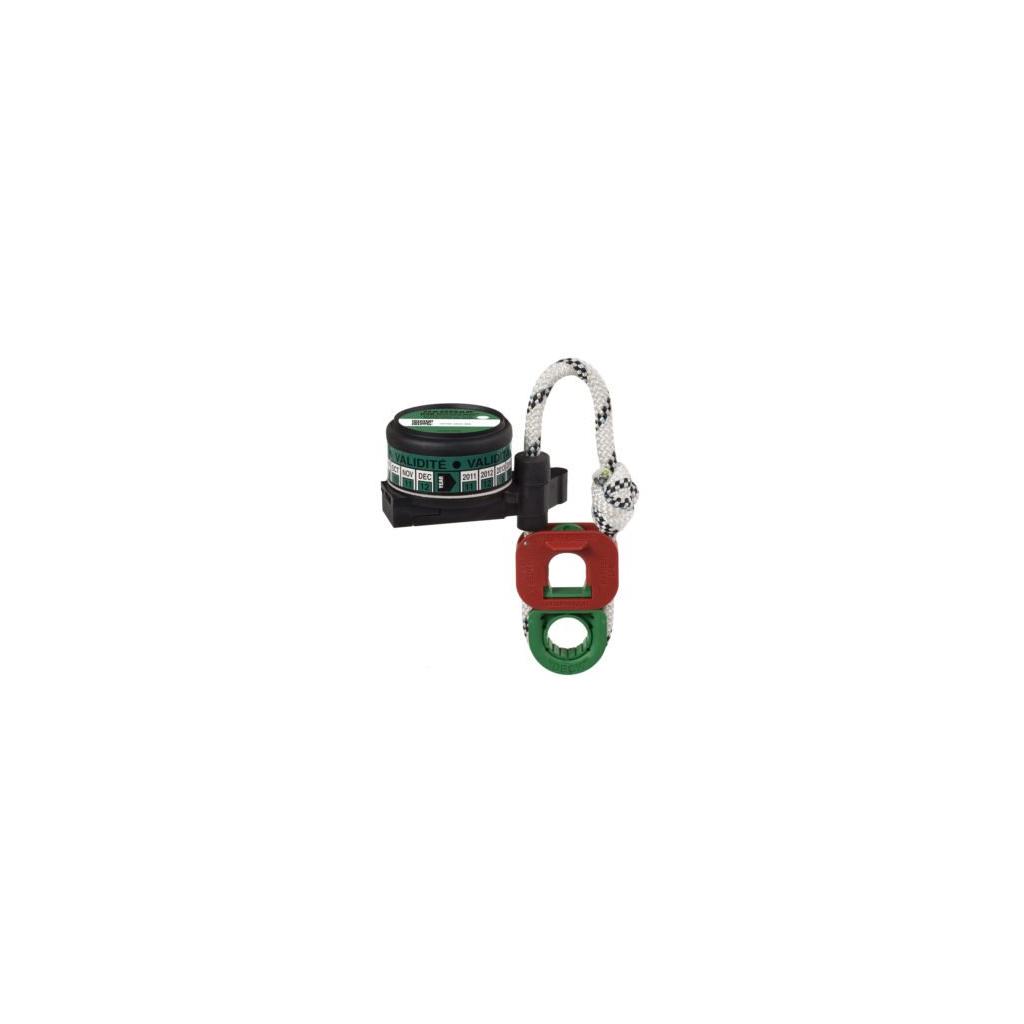

HAMMAR H20 HRU - Hydrostatic Release Unit for Small Rafts - H20 Small Raft Model - BV Type Approved, USCG Approved- HR-0200

£53.04 £44.20
In stock
SKU
40020031C
- +

The Hammar H20 Small Raft Model (HR-0200) is engineered for reliable deployment of compact liferafts, including those for fishing, yacht, and recreational use. Approved by BV and the USCG, this unit is suitable for liferafts accommodating 4 to 12 persons and meets non-SOLAS regulations. It features a user-friendly design that ensures automatic release and inflation of the liferaft in emergency situations.

HAMMAR H20 HRU - Hydrostatic Release Unit for Small Liferafts - H20 Compact Model - BV Certified, USCG Approved - HR-0200 HAMMAR H20 HRU - Small Liferafts HRU (Dark Green)

The Hammar H20 Small Raft Model (HR-0200) is designed for reliable deployment of compact liferafts, ideal for fishing, yacht, and recreational applications. Certified by BV and USCG, this model caters to liferafts with capacities from 4 to 12 persons, compliant with non-SOLAS standards. It boasts an simple, yet intuitive design that guarantees automatic activation and inflation of the liferaft during emergencies.

Key Features & Equipment Benefits:

  • Automatic Release: Activates in water depths of 1.5 - 4 metres, cutting the securing rope to release the liferaft.
  • Inflation: As the ship sinks, the liferaft painter line stretches, triggering inflation, and the Red Weak Link breaks, allowing the liferaft to float free.
  • Durable HRU: No annual maintenance required; replace the unit every 2 years.
  • User-friendly Design: Ensures automatic release and inflation of the liferaft in emergency situations.
  • Compact & Lightweight: Designed for liferafts up to 12 persons, ideal for smaller vessels and recreational use.
  • Certifications / Approvals: BV Type Approved and USCG Approved (Approval No. 160.062/14/10).

Technical Information:

  • Suitable For: Liferafts from 4 to 12 persons (non-SOLAS regulations).
  • Breaking Strength: White rope sling - minimum 15 kN; Weak Link - 1.2 ± 0.4 kN.
  • Release Depth: 1.5 - 4 metres
  • Weight: 0.28 kg.
  • Components: Includes double looped white rope line, release mechanism, and Red Weak Link with green lower thimble.
  • Service Life: Replace after 2 years of use on a ship
  • BV Type Approved
  • USCG Approved (No. 160.062/14/10)

SPECIFICATION



  • Hammar H20 Small Raft Model (HR-0200)

  • Automatic deployment

  • User-friendly design

  • Durable construction

  • Suitable for liferafts accommodating (4-12 persons)

  • BV Type Approved

  • USCG Approved (No. 160.062/14/10)

  • Release depth: 1.5 - 4 meters

  • Breaking strength: White rope sling - minimum 15 kN; Weak link - 1.2 ± 0.4 kN

  • Operating temperature: -30°C to +65°C

  • Service life: 2 years

  • Weight: 0.28 kg

  • English top label

  • Approximate weight of 30 pcs: 9 kg

  • 5-year shelf life when stored in a dry, UV-protected environment
