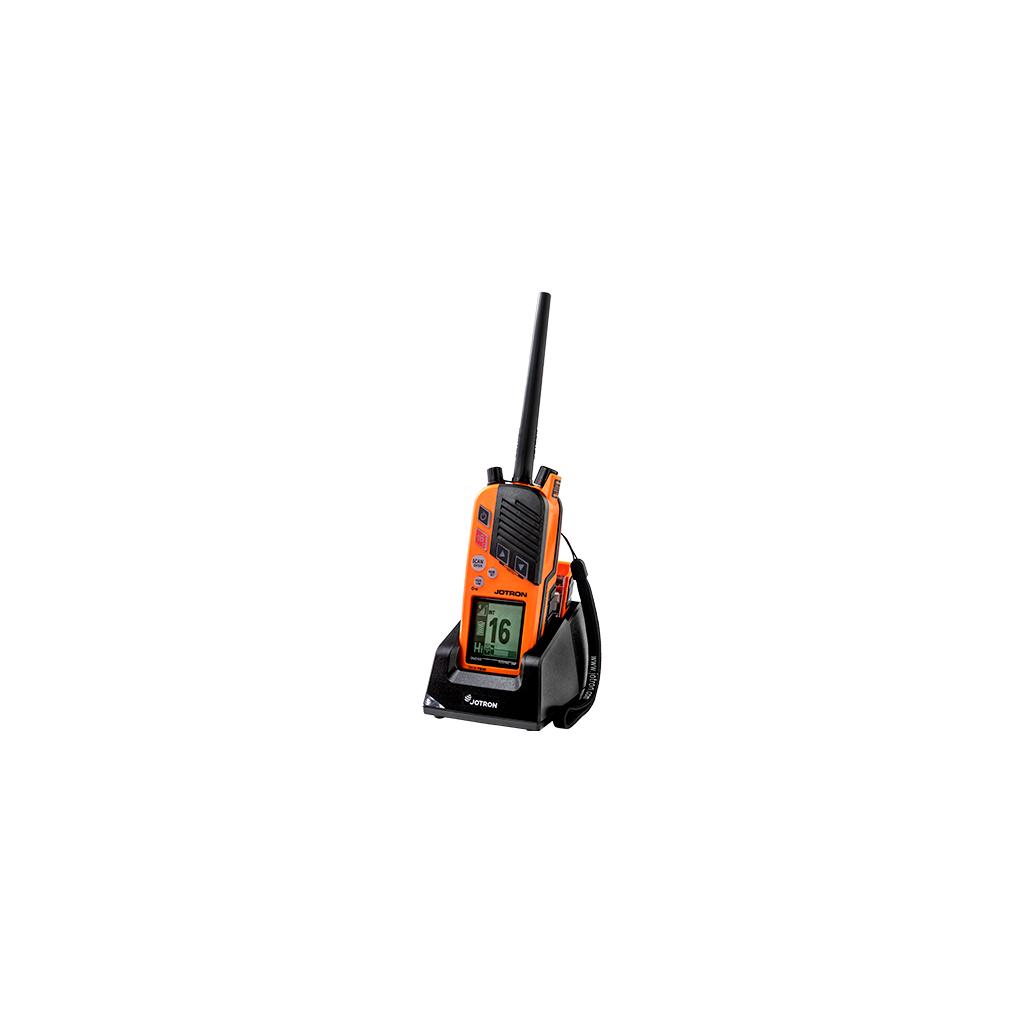

Jotron Tron TR30 GMDSS and Maritime VHF Radio with Charger and Rechargeable battery - Tron TR30 GMDSS and Maritime VHF Radio
The Jotron Tron TR30 GMDSS and Maritime VHF Radio is a dual-function radio designed to meet the demanding needs of maritime professionals. This GMDSS radio offers access to both standard GMDSS simplex channels and full maritime duplex channels, ensuring reliable communication in all maritime environments.
GMDSS and Maritime VHF Radio Jotron Tron TR30 - IP-67 Marine Emergency Radio Recharble VHF - Jotron TR30 Two-in-One radio
The Jotron Tron TR30 GMDSS and Maritime VHF Radio is the perfect choice for those seeking a reliable, versatile, and user-friendly maritime communication device. Whether in an emergency or for daily operations, this radio ensures clear and effective communication at sea.
Key Features & Equipment Benefits:
- Dual-Functionality: Combines GMDSS and Maritime VHF capabilities in one compact device.
- Floating Design: Ensures the radio remains accessible even if dropped overboard.
- IP-67 Speaker Microphone/Headset Connectivity: Compatible with an IP-67 rated speaker microphone or a headset with a PTT-module for hands-free operation.
- Compact Two-Position Charger: Easy to install and allows users to view vital information on the display while charging.
- User-Centric Design: Developed with user functionality in mind, catering to both emergency situations and everyday on-board communications.
- Automatic Emergency Mode: When the emergency battery is connected, the radio automatically switches to a preset emergency mode, enabling only essential features to reduce critical adjustment time.
- Battery Options: Includes both an emergency battery and a rechargeable battery, with spare parts readily available.
- Wide Range of Applications: Maritime Professionals, Commercial Vessels, Emergency Situations, General On-Board Communications
- Two-in-One GMDSS Radio: Gives access both standard GMDSS simplex channels and full maritime duplex channels.
Technical Information:
- EMC/Environmental: IEC 60945/301843-2
- VHF: IEC 61097-12/EN300225, ETS301178
- Frequency Range: TX: 154 MHz, RX: 161.875 MHz
- Channel Spacing: 25 KHz
- Operating Temperature Range: -20 to +55°C
- Battery Operating Time: Emergency Battery: 12 hours (10-10-80 duty cycle)
- Rechargeable Battery: 12 hours (5-5-90 duty cycle) medium power
- Weight: Emergency Battery: Approximately 300 g, Rechargeable Battery: Approximately 295 g
SPECIFICATION:
Charger:
- Operating Power Source: 12-24 DC or 15/20 VAC from 115-240 VAC
- Mounting: Wall and table mountable
- Dimensions: 92 mm (W) x 68 mm (H) x 115 mm (D)
Emergency Battery (Non-Rechargeable):
- Chemical System: Lithium/Iron Disulfide (Li/FeS2)
- Voltage: 6 V
- Capacity: 2900 mAh
Rechargeable Battery:
- Chemical System: Lithium Polymer Battery
- Voltage: 7.4 V Nom
- Capacity: 1550 mAh
General:
-
Frequency Range: TX: 154 MHz, RX: 161.875 MHz
-
Channel Spacing: 25 KHz
-
Operating Temperature Range: -20 to +55°C
-
Battery Operating Time:
-
Emergency Battery: 12 hours (10-10-80 duty cycle)
-
Rechargeable Battery: 12 hours (5-5-90 duty cycle) medium power
-
-
Dimensions:
-
Without Belt Clip: 61 mm (W) x 157 mm (H) x 40 mm (D)
-
With Belt Clip: 61 mm (W) x 157 mm (H) x 47 mm (D)
-
-
Weight:
-
Emergency Battery: Approximately 300 g
-
Rechargeable Battery: Approximately 295 g
-
-
Full Buoyancy: Yes
Receiver:
-
Maximum Usable Sensitivity: < 1 µV for 20 dB SINAD
-
Adjacent Channel Rejection: > 70 dB
-
Blocking: > 90 dB
-
Spurious Response: > 70 dB
-
Harmonic Distortion: < 5%
-
Intermodulation Rejection: > 68 dB
-
Channel Monitoring: DW/TW/Scan
Transmitter:
-
Output Power (Fully Charged Battery):
-
Emergency Battery: Low 1 W, High 2 W
-
Rechargeable Battery: Low 1 W, Medium 2 W (default), High 4 W
-
-
Harmonics and Spurious: < 0.25 µW
-
Frequency Error: < +1.5 kHz
-
Adjacent Channel Power: < -70 dBc
Approved Standards:
-
EMC/Environmental: IEC 60945/301843-2
-
VHF: IEC 61097-12/EN300225, ETS301178
