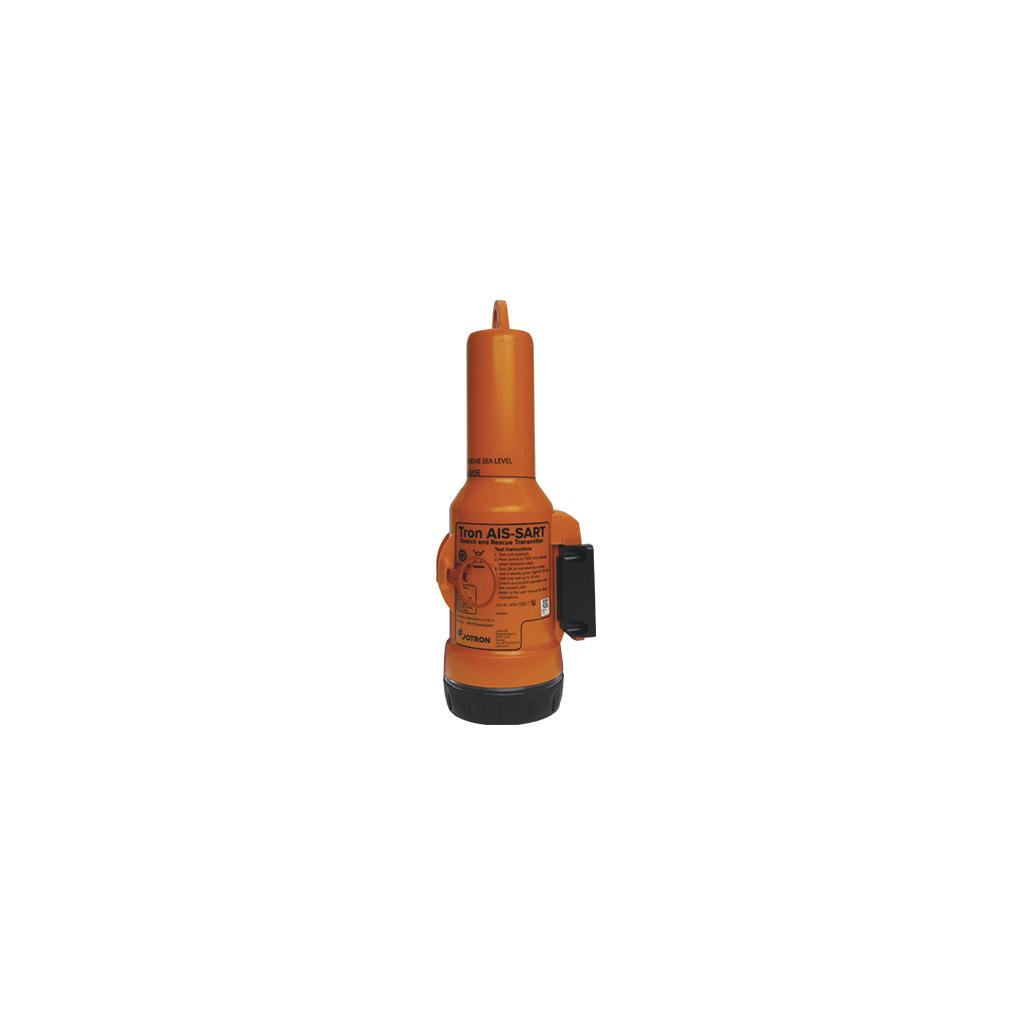

Jotron Tron AIS-SART with Bulkhead Bracket - Compact Search and Rescue Transmitter - MED Approved 'Wheel Marked' SART Rescue Locating Device - 85037

£594.88 £495.73
In stock
SKU
Tron SART20 Radar Transponder with bulkhead bracket
- +

The Jotron Tron AIS-SART, a cutting-edge search and rescue transmitter seamlessly combining compact physical size with technical capabilities. Mirroring Jotron's renowned Tron SART20 radar-SART in housing, this device stands at a total height of 251 mm and weighs a mere 450g. Technically proficient, the Tron AIS-SART is programmed with a unique ID code by the manufacturer and utilises an internal GPS antenna for precise positioning. Transmitting data through international AIS channels (AIS A and AIS B) in the maritime VHF band, this GMDSS-compliant device ensures effective search and rescue operations. It is "Wheel Marked" in compliance with European Council Directive 96/98/EC and the latest Commission Directive 2011/75/EU (7th amendment).

Jotron Tron-Series Bulkhead Bracket - Secure Mount for Tron AIS-SART and Tron SART20 - MED 96/98/EC Wheel Marked Search & Rescue Tron SART GMDSS

Elevate your vessel's safety with the Jotron Tron AIS-SART, a versatile search and rescue transmitter offering a unique combination of compact design and advanced technology. Identical in housing to Jotron's Tron SART20 radar-SART, standing at 251 mm and weighing only 450g, this device is technically sophisticated. Programmed with a unique ID code and equipped with an internal GPS antenna, it transmits data seamlessly on international AIS channels (AIS A and AIS B) within the maritime VHF band. "Wheel Marked" in accordance with European Council Directive 96/98/EC and Commission Directive 2011/75/EU (7th amendment), the Tron AIS-SART, along with Tron SART20, offers ship owners the freedom to choose between them as search and rescue locating devices, complying with IMO SOLAS Amendment in Resolution MSC.256(84) and SOLAS Chapter III, Regulation 2.2.

Key Features & Equipment Benefits:

  • Robust GMDSS Transmitter: Proven performance as a reliable search and rescue transmitter under GMDSS standards, ensuring trustworthiness and effectiveness in distress situations, meeting global maritime communication requirements.
  • IMO RES MSC. 256 (84) Adoption: Recognized by the International Maritime Organization Resolution MSC. 256 (84) as a viable alternative to 9GHz SART, providing compliance with international maritime regulations and offering flexibility in equipment choices.
  • Unique AIS Technology: Contributes to more effective and less time-consuming SAR operations with superior position accuracy, enhancing search and rescue efficiency, reducing response times, and increasing precision in distress situations.
  • AIS Detection on Class A and B: The AIS-SART is detected on AIS Class A and B, enhancing visibility and compatibility, improving visibility for both large and small vessels, ensuring effective communication in diverse maritime scenarios.
  • Small and Compact Design: Space-efficient and easy to handle, ensuring versatility in mounting options, facilitating easy installation on various vessels, making it suitable for different maritime applications.
  • Universal Accessories Compatibility: Tron AIS-SART and Tron SART20 share common accessories, including bulkhead bracket, lifeboat bracket, and liferaft mounting pole, streamlining maintenance and accessory management, providing flexibility in equipment use across different vessels.
  • Proven Performance Distances: Demonstrates proven performance distances, including up to 10 nm from a SOLAS ship, up to 40 nm from a SAR helicopter, and up to 130 nm from a SAR aircraft, ensuring reliable signaling capabilities in a range of scenarios, enhancing the effectiveness of search and rescue operations.
  • Specifications: Comprehensive technical specifications, including weight, dimensions, material housing, frequency, radiated power, antenna height, indication, temperature range, battery, operating life, and standards compliance, providing detailed information for informed decision-making, ensuring users are well-informed about the device's capabilities and suitability for specific maritime needs.

Technical Information:

  • Up to 10 nm from a SOLAS ship with AIS class A transponder
  • Up to 40 nm from a SAR helicopter (altitude 1000 ft)
  • Up to 130 nm from a SAR aircraft (altitude 20000 ft)
  • Operating life: 96 hours continuous operation at -20°C
  • Battery: 7.2 V Primary lithium battery. 5 year service life
  • Standards: IEC 61097-14:2010, IEC60945, MSC.246(83),
    MSC.247 (83
  • Part Number: 85037

Contact Us

Need any help? Get in touch with an expert via the contact form below.

Contact us
Jot us a note and we’ll get back to you as quickly as possible.
More Information
Price £495.73
Brands Jotron

SPECIFICATION

Robust GMDSS Transmitter:

  • Proven performance as a reliable search and rescue transmitter under GMDSS standards.

IMO RES MSC. 256 (84) Adoption:

  • Recognised by the International Maritime Organization Resolution MSC. 256 (84) as a viable alternative to 9GHz SART.

Unique AIS Technology:

  • Contributes to more effective and less time-consuming SAR operations with superior position accuracy.

AIS Detection on Class A and B:

  • The AIS-SART is detected on AIS Class A and B, enhancing visibility and compatibility.

Small and Compact Design:

  • Space-efficient and easy to handle, ensuring versatility in mounting options.

Universal Accessories Compatibility:

  • Tron AIS-SART and Tron SART20 share common accessories, including bulkhead bracket, lifeboat bracket, and liferaft mounting pole.

Proven Performance Distances:

  • Up to 10 nm from a SOLAS ship with AIS Class A transponder.
  • Up to 40 nm from a SAR helicopter (altitude 1000 ft).
  • Up to 130 nm from a SAR aircraft (altitude 20000 ft).



  • Weight: 480 g

  • Dimensions: H: 250 mm, W: 89 mm

  • Material Housing: Glass reinforced polycarbonate

  • Frequency: 161.975 and 162.025 MHz

  • Radiated Power: 1 W

  • Antenna Height: Place at least 1 meter above sea/ground level

  • Indication: Visual and audible alarm

  • Temperature Range: Operating: -20°C to +55°C, Storage: -30°C to +65°C

  • Battery: 7.2 V Primary lithium battery, 5-year service life

  • Operating Life: 96 hours continuous operation at -20°C

  • Standards: IEC 61097-14:2010, IEC60945, MSC.246(83), MSC.247 (83)

  • Part Number: 85037
