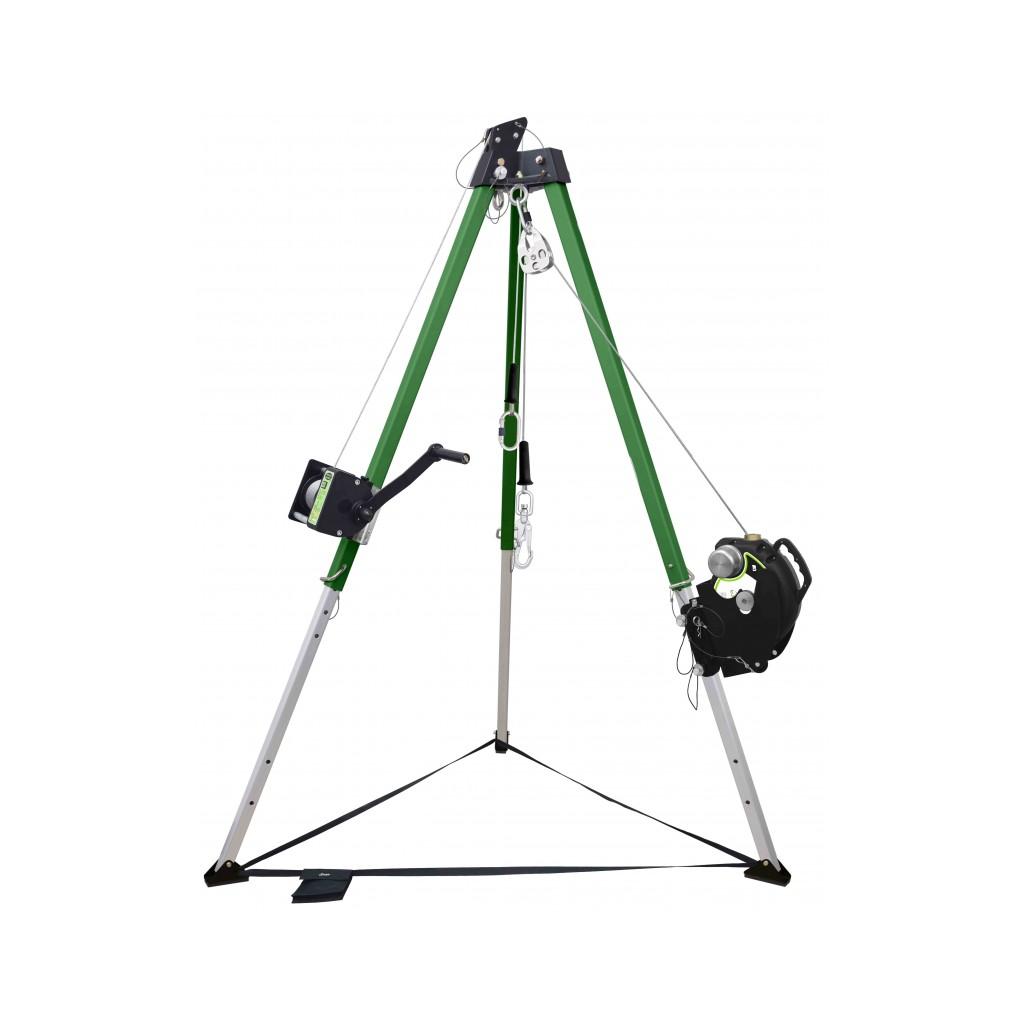

Kratos 10ft Tripod Ex-Zone 1 – Tripod with 10 Feet Maximum Height for Access in Confined Spaces – Adjustable Height Tripod from 1.9m to 2.9m – FA6000200
Adjustable aluminium tripod for confined space access, with height range from 1.9 m to 2.9 m and wheelbase from 1.52 m to 2.05 m. Features integrated pulleys, auxiliary anchor points, and rubber-soled steel feet for stability. Supports up to 500 kg under head, compatible with FA winches, and supplied with a storage bag. Certified to EN 795:2012 Type B, EN 1808, Machinery Directive, and ATEX Zone 1 compliant.
Complete your confined space access and rescue setup with the Kratos ARGO Tripod Winch, KALYPSO Retractable Fall Arrester with Integrated Rescue Winch and compatible Tripod Adaptation Kit.
For a more compact setup, see the Kratos 7ft Tripod.
Kratos 10ft Rescue Tripod ATEX Zone 1 – Telescopic Tripod for Confined Space Entry & Retrieval – Height Adjustable Safety Tripod from 1.9 m to 2.9 m – FA6000200
The Kratos 10ft Rescue Tripod is an adjustable system for safe confined space entry and rescue, with legs extending from 1.9 m to 2.9 m and a wheelbase from 1.52 m to 2.05 m. Made from aluminium with a cast alloy head, it has two pulleys for cable guidance and two eye bolts for attachments. Rubber-soled steel feet provide grip on different surfaces. It supports up to 500 kg under the head and 250 kg on a leg. Includes built-in fixtures for Kratos winches (FA 60 003 20/30 and FA 60 023 20/20R) and a storage bag. Certified for ATEX Zone 1 and compliant with EN 795:2012 Type B, EN 1808, and Machinery Directive.
Complete your confined space access and rescue setup with the Kratos ARGO Tripod Winch, KALYPSO Retractable Fall Arrester with Integrated Rescue Winch and compatible Tripod Adaptation Kit.
Looking for a more compact setup? See the Kratos 7ft Tripod.
Key Features & Equipment Benefits:
- Adjustable Height: use in various confined space scenarios (1.9 m to 2.9 m)
- Adjustable Wheelbase: fits different ground spaces and entry points (1.52 m to 2.05 m)
- High Load Capacity: supports 500 kg under the head and 250 kg on the leg for safe lifting and lowering
- Weight: 22.3 kg for transport and setup
- Aluminium Alloy Head and Legs: durable and corrosion-resistant for harsh environments
- Integrated Head Pulleys: guides cables for winch or retrieval operations
- Two Auxiliary Anchor Points: secure connection for additional equipment or backup systems
- Rubber-Soled Steel Feet: increases grip and stability on various surfaces
- Inbuilt Winch Fixture: compatible with Kratos winches FA 60 003 20 / 30 and FA 60 023 20 / 20R
- Included Tripod Bag: easy transport and organised storage
- Anchorage Strength >12 kN: ensures strong and reliable connection under load
- ATEX (Zone 1) Suitable: safe for use in potentially explosive atmospheres
- Certified to EN795:2012 Type B, EN 1808, Machinery Directive: meets industry safety and performance standards
- PPE Classification: classified as Personal Protective Equipment (PPE)
- HS Code 76169990: useful for customs and export documentation
Technical Information:
- Product Code: FA6000200
- Weight: 22.3 kg
- Load Capacity: 500 kg under head / 250 kg on leg
- Anchorage Strength: >12 kN
- Winch Compatibility: FA 60 003 20, FA 60 003 20R, FA 60 003 30, FA 60 023 20
- Bag Included: Yes
- PPE Classification: PPE
- Standards: EN795:2012 Type B, EN 1808, Machinery Directive, ATEX Directive 2014/34/EU
- ATEX Suitability: Zone 1
- HS Code: 76169990
Confined Space Rescue - Tripod + FA 20 401 30 Video:
SPECIFICATION
10 ft. Tripod Maxi – Confined Space Access Tripod – FA6000200
Tripod Maxi (10 ft.): Adjustable aluminium tripod designed for safe entry and rescue in confined spaces. Features extendable legs and a cast aluminium alloy head with two integrated pulleys aligned with the main leg for smooth cable passage. Includes two auxiliary eye bolts for extra anchorage points and rubber-soled steel support shoes for enhanced stability. Supplied with a dedicated Tripod Bag and fixtures for winch compatibility.
-
Height Adjustment: 1.9 m to 2.9 m
-
Wheelbase Adjustment: 1.52 m to 2.05 m
-
Weight: 22.3 kg
-
Load Capacity: 500 kg under head / 250 kg on leg
-
Anchorage Strength: >12 kN
-
Head Construction: Cast aluminium alloy
-
Leg Construction: Aluminium
-
Footing: Steel support shoes with rubber soles for improved grip
-
Cable Passage: 2 × mounted pulleys at head (main leg axis)
-
Anchorage Points: 2 × auxiliary eye bolts
-
Winch Compatibility: Inbuilt fixture for FA 60 003 20, FA 60 003 30, FA 60 023 20, and FA 60 023 20R winches
-
Storage: Supplied with dedicated Tripod Bag
-
Application: Entry and rescue in confined spaces; suitable for ATEX Zone 1 atmospheres
-
Compliance: Conforms to EN795:2012 Type B, ATEX Directive 2014/34/EU, Machinery Directive, EN 1808
-
HS Code: 76169990
