Kratos 7ft Tripod Ex-Zone 1 - Tripod with 7 Feet Maximum height for Access in Confined Spaces - Adjustable Height Tripod from 1.15m to 2.15m - FA6000100

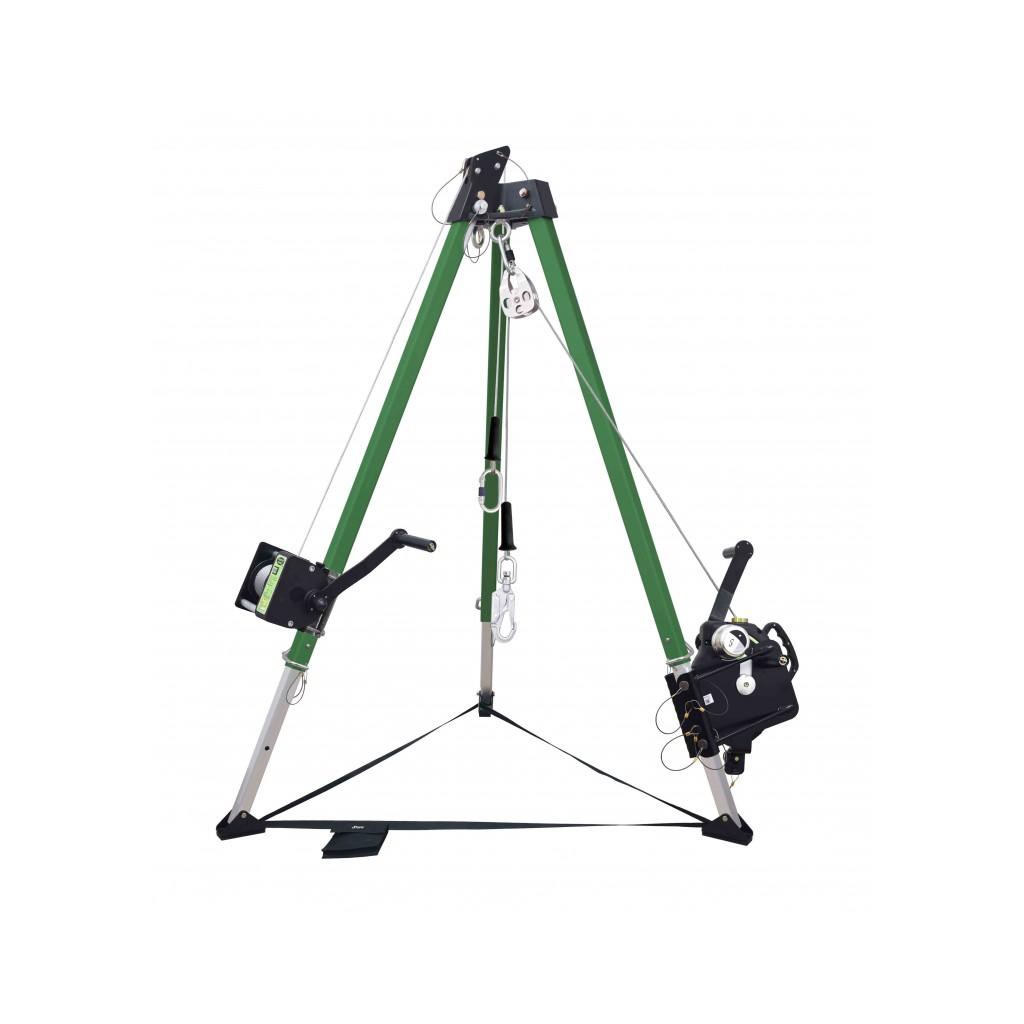

The Kratos 7ft Rescue Tripod is a height-adjustable system for safe entry and rescue from confined spaces. Its legs extend from 1.15 m to 2.15 m, with a wheelbase adjustable from 1.08 m to 1.62 m. Made from aluminium, it includes two pulleys at the head for guiding cables and two eye bolts for attaching equipment. Rubber-soled steel feet provide grip on different surfaces.

The tripod supports up to 500 kg directly under the head and 250 kg on a leg. It includes built-in fittings for use with Kratos winches (FA 60 003 20/20S and FA 60 003 30/30S) and comes with a storage bag. Approved for use in ATEX Zone 1 areas and certified to EN 795:2012 Type B, EN 1808, and the Machinery Directive.

Complete your confined space setup with the Kratos ARGO Tripod Winch, Retractable Fall Arrester with Integrated Rescue Winch and compatible Tripod Adaptation Kit.

Looking for a higher access point? See the Kratos 10ft Tripod.

Key Features & Equipment Benefits:

• Adjustable Height: allows use in various confined space scenarios (1.15 m to 2.15 m)

• Adjustable Wheelbase: adaptable to different ground spaces and entry points (1.08 m to 1.62 m)

• High Load Capacity: supports 500 kg under the head and 250 kg on the leg for safe lifting and lowering

• Lightweight Construction: weighs only 14.3 kg for easier transport and setup

• Aluminium Alloy Head and Legs: durable and corrosion-resistant for harsh environments

• Integrated Head Pulleys: simplifies cable guidance for winch or retrieval operations

• Two Auxiliary Anchor Points: provides secure connection for additional equipment or backup systems

• Rubber-Soled Steel Feet: increases surface grip and stability on different terrain

• Inbuilt Winch Fixture: ready for direct attachment of Kratos winches FA 60 003 20/20S and FA 60 003 30/30S

• Included Tripod Bag: makes transport and storage simple and organised

• Anchorage Strength >12 kN: ensures strong and reliable connection under load

• ATEX (Zone 1) Suitable: safe for use in potentially explosive atmospheres
• Certified to EN795:2012 Type B, EN 1808, and Machinery Directive: meets industry standards for safety and performance

• PPE Classification: classified as Personal Protective Equipment (PPE)

• HS Code 76169990: useful for customs and export documentation

Technical Information:

• Product Code: FA6000100
• Weight: 14.3 kg
• Load Capacity: 500 kg under head / 250 kg on leg

• Anchorage Strength: >12 kN

• Winch Compatibility: FA 60 003 20/20S and FA 60 003 30/30S
• Bag Included: Yes

• PPE Classification: PPE

• Standards: EN795:2012 Type B, EN 1808, Machinery Directive

• ATEX Suitability: Zone 1

• HS Code: 76169990

Confined Space Rescue - Tripod + FA 20 401 30 Video:
