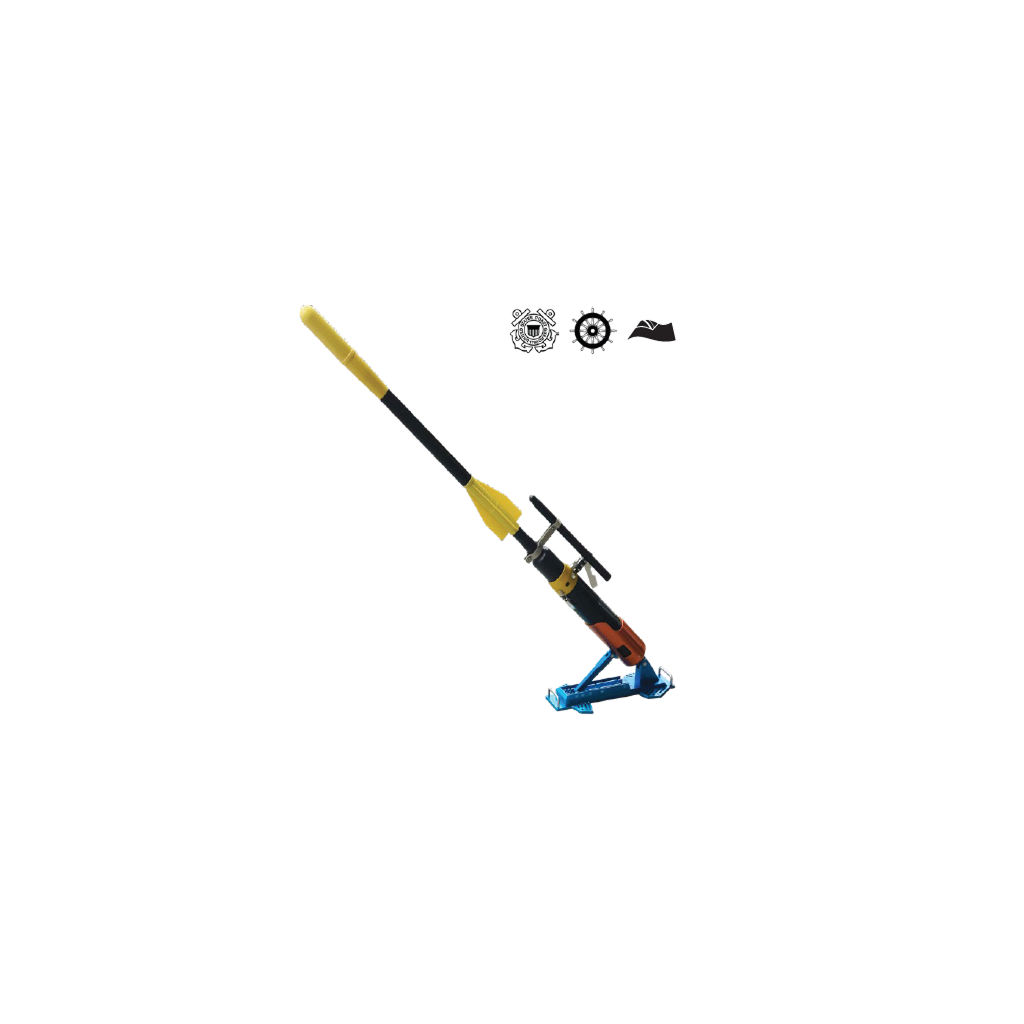

LineShooter PLS 300 - Pneumatic Line Thrower - Compressed Air Line Shooter

£1,794.00 £1,495.00

Despatch 5-7 working days

SKU

40021258

The LineShooter PLS 300 is a heavy-duty pneumatic line thrower for long-range line deployment across water or difficult terrain. Powered by compressed air, it launches projectiles up to approximately 250 m with an average nozzle velocity of 50.6 m/s. The 300 bar, 2-litre air cylinder provides a minimum of 4 shots, while its aerodynamic projectile design helps minimise wind effects.

Key Features

LineShooter PLS 300 - SOLAS / IMO Reg. Pneumatic Line Thrower - Wheelmark, UK-MER (Red Ensign), USCG

The T-ISS LineShooter PLS 300 Pneumatic Line Thrower is a heavy-duty, compressed-air-powered line throwing device designed to establish a physical connection between two points across water or difficult terrain. It provides a reliable alternative to traditional pyrotechnic line throwers, using compressed air rather than solid-fuel rockets to launch its projectile.

Developed in close cooperation with YB, the PLS 300 is an advanced professional line launcher designed for demanding rescue, marine and emergency applications where a line must be deployed over a significant distance.

The LineShooter can launch its projectile approximately 250 metres, making it suitable for situations requiring long-range line deployment. Its aerodynamic projectile design helps minimise the effects of wind, with crosswind being the primary wind factor affecting its trajectory. The projectile reaches its maximum velocity at the end of the launcher, providing effective range and consistent deployment.

The PLS 300 operates with a 65 bar shooting chamber pressure and achieves an average nozzle velocity of 50.6 m/s. The system uses a 300 bar, 2-litre compressed-air cylinder and provides a minimum of four shots per cylinder.

With a throwing unit weighing 8.0 kg and measuring 165 cm, plus a 1.7 kg, 120 cm projectile, the complete system weighs 10.4 kg and measures 175 cm in total.

Key Features & Equipment Benefits:

Pneumatic Propulsion: Uses compressed air rather than pyrotechnic solid-fuel rockets for line deployment.
Long-Range Line Deployment: Projects lines approximately 250 metres, enabling connections across water or difficult terrain.
Aerodynamic Projectile: Designed to minimise wind effects, with crosswind being the primary factor affecting trajectory.
High Projectile Velocity: Achieves an average nozzle velocity of 50.6 m/s, supporting effective long-range deployment.
65 Bar Shooting Pressure: Provides the operating pressure required for powerful projectile launch.
300 Bar Air Cylinder: High-pressure air supply supports a minimum of four projectile shots.
2-Litre Air Cylinder: Provides a compact compressed-air supply for multiple deployments.
Heavy-Duty Design: Developed in cooperation with YB for demanding professional rescue and marine applications.
Controlled Projectile Performance: Projectile reaches maximum speed at the end of the launcher for effective range.
Professional Line-Throwing System: Provides a practical solution for establishing a physical connection between two points during rescue and emergency operations.
10.4 kg Total System Weight: Provides a robust long-range line-throwing solution while remaining transportable for operational use.
5,400 N Maximum Recoil: Engineered with a defined maximum recoil force for controlled operation.

Technical Information:

Maximum Range: Approx. 250 m
Projectile Weight: 1.7 kg
Total Weight: 10.4 kg
Total Length: 175 cm
Shooting Chamber Pressure: 65 bar
Nozzle Velocity: 50.6 m/s
Maximum Recoil: 5,400 N
Minimum Shots: 4 projectiles
Air Cylinder: 300 bar / 2 litres
Propellant: Compressed air

Article Number	Description	Dimensions	Weight	IMPA
PLT-300-S	LineShooter PLS 300	1000 x 220 x 200 mm	Approx. 21 kg	331345

Spec

SPECIFICATION

LineShooter PLS 300 - PLT-300-S / IMPA 331345

Type: Pneumatic Line Thrower
Propellant: Compressed air
Throwing Unit Weight: 8.0 kg
Throwing Unit Length: 165 cm
Projectile Weight: 1.7 kg
Projectile Length: 120 cm
Total Unit Weight: 10.4 kg
Total Unit Length: 175 cm
Shooting Chamber Pressure: 65 bar
Average Nozzle Velocity: 50.6 m/s
Maximum Recoil: 5,400 N
Minimum Shots: 4 projectiles
Air Cylinder Pressure: 300 bar
Air Cylinder Volume: 2 litres
Maximum Projectile Range: Approximately 250 m
Wind Resistance: Aerodynamic projectile design minimises the effect of wind; projectiles are primarily affected by crosswind
Velocity: Projectile reaches maximum speed at the end of the launcher
