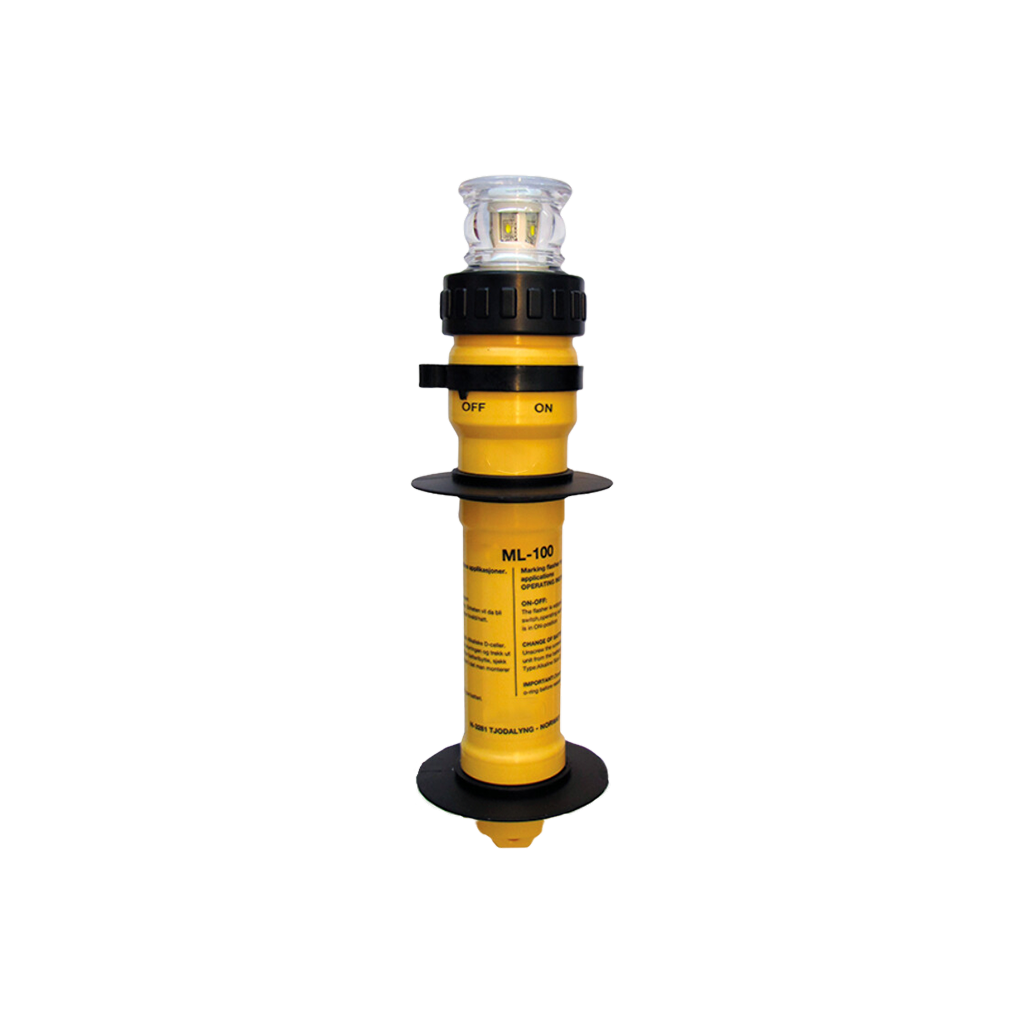

Daniamant ML-100 Marker Light Series - High Intensity LED Marker Lights - Daniamant LED ML-100 Marker Lights - 700930, 700932, 700934, 700936, 700940
Daniamant ML-100 Marker Lights provide high-intensity LED illumination for marking nets, buoys, moorings, and offshore installations. Programmable flash rate, intensity, and synchronisation. Durable, modular, and reliable for marine and industrial environments.
Daniamant ML-100 Marker Light Series – High-Intensity LED Lights for Marine and Industrial Use -700930, 700932, 700934, 700936, 700940
The Daniamant ML-100 series delivers powerful, high-intensity LED illumination for reliable marking of nets, buoys, long-line fishing gear, aquaculture farms, offshore installations, anchor chains, moorings, seismic and oil cables. Powered by three D-sized 1.5V batteries, these lights are robust, durable, and built to withstand harsh maritime and industrial environments.
For synchronisation, one light can act as the main controller with the others following its signal at distances under 90–100 m. For distances of 100–450 m, a dedicated Synch Master is required, compatible with ML-100, ML-200, and ML-300 series and powered by 4.5 VDC or 10–27 VDC.
Available in yellow LED (25 flashes at 5 candela), white LED (25 flashes at 5 candela), fixed red LED (5 candela), or as a Synch Master, the ML-100 series can also be paired with the optional ML-100 Floater. Programmable settings allow adjustment of light intensity, flash rate, synchronisation, and daylight switch sensitivity, making these lights fully customisable for operational needs. The modular design ensures easy maintenance, servicing, and repair, providing a dependable marking solution for demanding marine and industrial applications.
Key Features & Equipment Benefits:
- High-Intensity LED: Provides bright, reliable illumination for marking and signaling in marine and industrial environments
- 3 D-Sized 1.5V Battery Cells: Ensures long-lasting power and dependable operation
- Easy Exchange of Batteries: Simplifies maintenance and reduces downtime
- Red, White, or Yellow Light Options: Offers flexibility for different marking and identification requirements
- Programmable Light Settings: Adjust light intensity, flash rate, master/slave synchronization, and daylight switch sensitivity to suit operational needs
- Synch Master Function: Enables synchronisation of multiple lights for coordinated marking
- Optional ML-100 Floater: Adds buoyancy for marking floating equipment or nets
- Modular Construction: Simplifies servicing, repair, and replacement of components
- Versatile Applications: Ideal for marking nets, long-line fishing gear, buoys, anchor chains, moorings, aquaculture farms, oil cables, seismic cables, and offshore installations
- NATO Stock Numbers (NSN): Provides standardised procurement references for military and government use, 86430: Tron ML-100 White LED 25-flash at 5 Cd, NSN: 6230-25-127-7786, 87331: Tron ML-100 Yellow LED 25-flash at 5 Cd, NSN: 6230-25-161-4313, 98885: Floater for ML-100, NSN: 2050-25-160-6877
Technical Information:
-
LED Colours: White, Yellow, Red
-
Flash Rate / Intensity: 25 flashes/min (White/Yellow), fixed Red; 5 Cd
-
Power: 4.5 VDC (3 × D-size 1.5 V batteries)
-
Programmable: Light intensity, flash rate, Master/Slave sync, daylight switch
-
Synch Master: For 100–450 m spacing; 4.5 VDC
-
Mounting / Dimensions: Floater mount (Part No. 98885); Ø 100 × 335 mm
-
Housing / Lens: ABS / Lexan
-
Waterproof: 500 m
-
Applications: Nets, buoys, cables, moorings, offshore installations
-
Part No: 700930: ML-100 White LED 25 flash 5 Cd • 700932: ML-100 Yellow LED 25 flash 5 Cd • 700934: ML-100 Red LED 25 flash 5 Cd • 700936: ML-100 Fixed Red 5 Cd • 700940: ML-100 Synch-Master 4.5 V
SPECIFICATION
Daniamant ML-100 Marker Light
-
Material Housing: ABS
-
Material Lens: LEXAN
-
Light System: LED (white, yellow, or red)
-
Light Intensity (Red LED only): 5 or 15 Cd (Candela)
-
Surface Range: 2 or 3 NM (nautical miles)
-
Waterproof: Up to 500 meters
-
Activation Switch: Magnet/reed and daylight sensor
-
Flash Rate: 25 flashes per minute
-
Software Programming: Flash rate, intensity, synchronization, daylight switch
-
Power/Battery Type: 4.5 VDC, 3 x Alkaline D-size battery cells
-
Lens Colour: White
-
LED Colour (Standard): White or yellow
-
LED Colour (Optional): Red
-
Dimensions (Approx.): Length 335 mm / Diameter 100 mm
-
Fixing Option: Floater (Part No. 98885)
