Jotron Tron AIS TR-8000 MkII Class A Complete with GPS Antenna - 103660

£2,172.00 £1,810.00

In stock

SKU

40021260

The Jotron Tron AIS TR-8000 MkII is an AIS Class A Automatic Identification System for commercial vessels and inland waterways. It automatically exchanges vessel information, including identity, position, course and speed, to support safer navigation and vessel tracking.

The system features a separate transponder and 7-inch high-resolution touchscreen display, with integrated GPS and a compact design for simple installation and retrofit. It complies with IEC 61993-2:2018 AIS Class A and BAM IEC 62923 requirements and is FCC, MED and MER compliant.

Key Features

Tron AIS TR-8000 MkII - Tron AIS TR-8000 MkII - Automatic Identification System (AIS) - Tron AIS TR-8000 MkII Class A complete with GPS antenna

The Jotron Tron AIS TR-8000 MkII is an AIS Class A Automatic Identification System for commercial vessels and inland waterway applications. It automatically sends and receives important vessel information, including vessel identity, position, course and speed, helping crews monitor nearby AIS-equipped vessels and improve navigation and safety.

The system meets the latest AIS Class A standard, IEC 61993-2:2018, and complies with Bridge Alert Management (BAM) requirements under IEC 62923-1 and IEC 62923-2:2018. It is approved for use on inland waterways and is suitable for both new installations and replacing existing AIS systems.

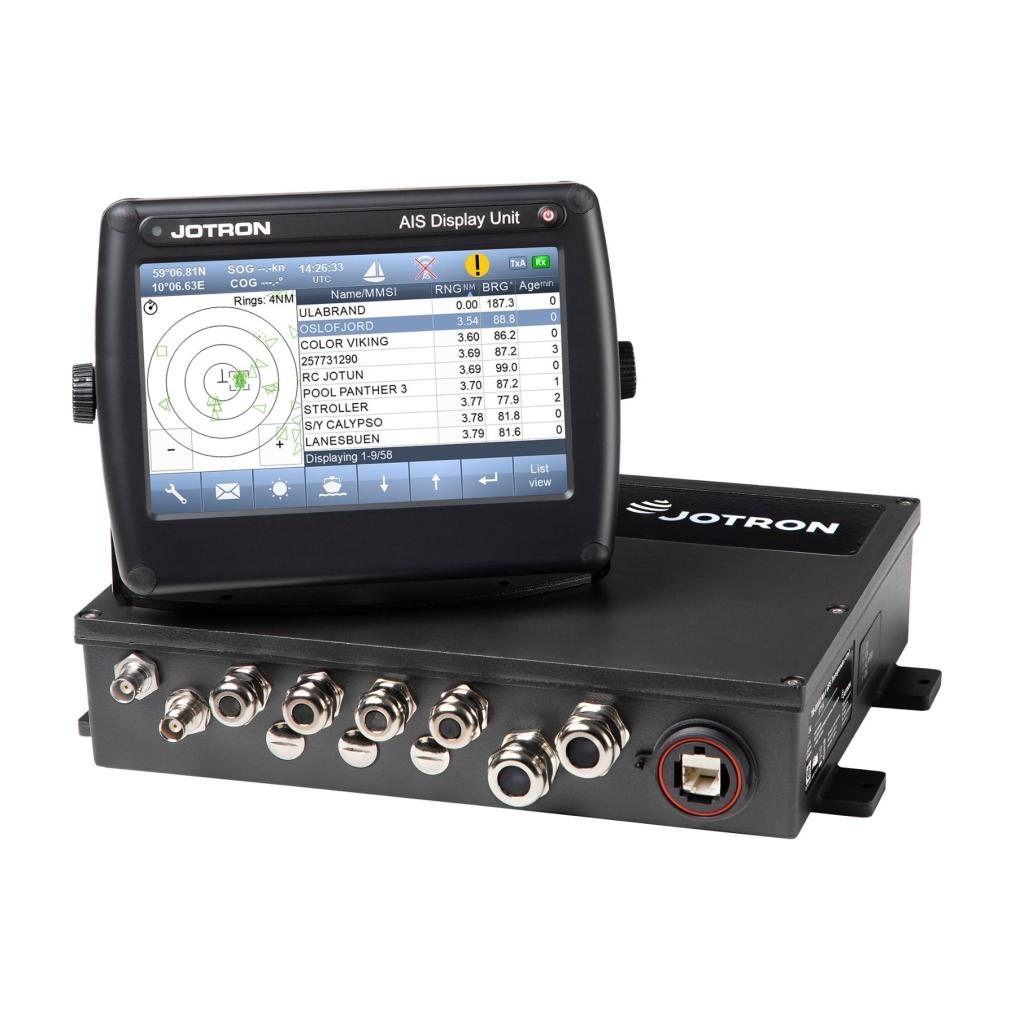

The TR-8000 MkII has a separate transponder unit and 7-inch display unit. The high-resolution touchscreen provides clear access to AIS and navigation information, while the IP54-rated display is designed for use in marine environments.

Installation is made simple with compact components and connections located inside the transponder unit. The system also includes a GPS antenna, mounting equipment, power cable and 5 m waterproof RJ45 cable as standard.

The Jotron Tron AIS TR-8000 MkII is FCC, MED and MER compliant and approved by ANATEL. A VHF antenna and pilot cable for the TR-8000 display are available separately.

Key Features & Equipment Benefits:

AIS Class A System: Provides automatic exchange of vessel information for improved tracking and navigation.
Jotron Tron AIS TR-8000 MkII: Provides a reliable AIS solution for commercial vessels and professional maritime use.
IEC 61993-2:2018 Compliant: Meets the latest AIS Class A requirements.
BAM Compliant: Meets IEC 62923-1 and IEC 62923-2:2018 requirements for Bridge Alert Management.
Inland Waterway Approved: Suitable for vessels operating on inland waterways.
7-Inch Touchscreen Display: Provides clear and easy access to AIS and navigation information.
High-Resolution Display: Makes vessel and navigation data easier to view.
IP54 Display: Provides protection against dust and water splashes for marine use.
Separate Transponder and Display: Allows flexible installation and easier system integration.
Integrated GPS: Provides accurate vessel positioning information.
Automatic Vessel Information Exchange: Sends and receives vessel identity, position, course and speed data.
Compact Design: Makes the system suitable for new installations and AIS retrofits.
Simple Installation: Internal transponder connections help make installation easier.
5 m Waterproof RJ45 Cable: Provides a ready-to-use connection between system components.
FCC, MED and MER Compliant: Meets recognised maritime and communication requirements.
ANATEL Approved: Provides additional regulatory approval for applicable markets.
Optional VHF Antenna: Allows the system to be supplied with the required VHF antenna for installation.

Technical Information:

Model: Jotron Tron AIS TR-8000 MkII
System Type: AIS Class A Automatic Identification System
Display: 7-inch high-resolution touchscreen
Display Protection: IP54
AIS Standard: IEC 61993-2:2018
BAM Standards: IEC 62923-1 and IEC 62923-2:2018
Installation: Inland waterways, new installations and retrofit applications
GPS Antenna: SANAV SA-200
GPS Antenna Mount: Stainless steel stand
Network Cable: 5 m waterproof RJ45 patch cable
System Configuration: Separate transponder and display units
Display Connection: Pilot cable available as an optional accessory
VHF Antenna: Optional
Approvals: FCC, MED, MER and ANATEL
Standard Supply: Transponder unit, display unit, mounting bracket, locking ring, curled knob, GPS antenna, GPS antenna stand, 5 m RJ45 cable, quick reference guide, display power cable and terminal screwdriver
Part Number: 103660

Spec

SPECIFICATION

- AIS Type: Class A / Inland AIS transponder for professional vessel tracking and navigation
- Display: 7" high-resolution colour touchscreen with clear graphical and list views of AIS data
- System Design: Separate transponder and display units connected by Ethernet for flexible installation
- Vessel Information: Displays information on nearby AIS-equipped vessels and supports safety message exchange
- Navigation Functions: Includes CPA/TCPA information and AIS system alarms for improved awareness on the bridge
- Dual Display: Transponder supports two displays simultaneously for additional viewing flexibility
- GPS: Supplied with SANAV SA-200 GPS antenna for vessel positioning
- Bridge Integration: Pilot port and external sensor interfaces support connection with other navigation equipment
- Inland Waterways: Approved for inland waterway use and supports requirements for European inland navigation
- Installation: Compact, retrofit-friendly design with wiring information integrated into the transponder
- Environmental Protection: IP54-rated display with marine environmental protection
- Operating Conditions: Display designed for operation from -25°C to +55°C
- Compliance: Meets current AIS Class A and Bridge Alert Management requirements
- Approvals: FCC, MED, MER and ANATEL approved
- Standard Package: Includes transponder, display, GPS antenna, mounting hardware, cables and installation accessories
- Optional Accessories: VHF antenna and pilot cable available
