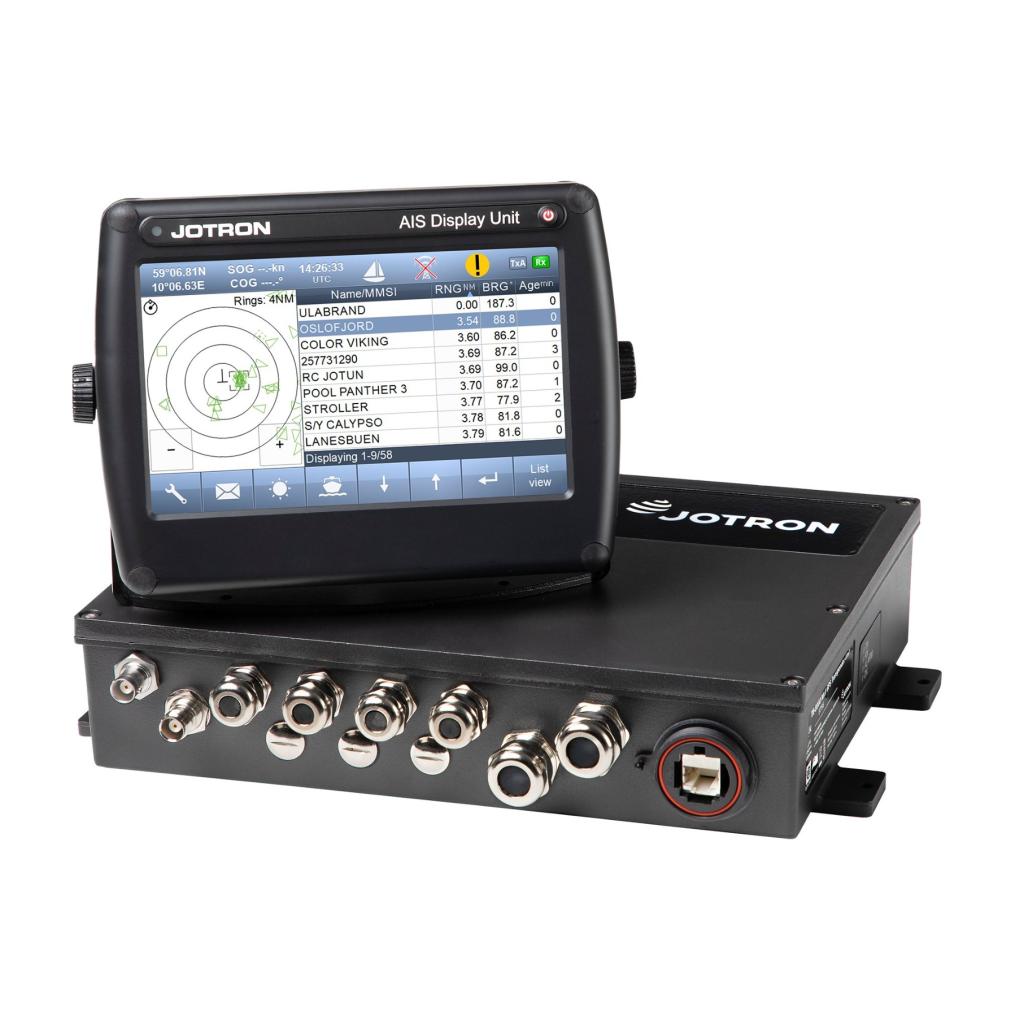

Jotron Tron AIS TR-8000 MkII Complete IMO Package - 103670

The Jotron Tron AIS TR-8000 MkII Complete IMO Package is an AIS Class A Automatic Identification System designed for commercial vessels and professional maritime navigation. It automatically exchanges vessel information with other AIS-equipped vessels, helping crews monitor surrounding traffic, improve situational awareness and support safer navigation.

The TR-8000 MkII meets the latest AIS Class A standard IEC 61993-2:2018 and Bridge Alert Management (BAM) standards IEC 62923-1 and IEC 62923-2:2018. It is also approved for inland waterway installations and supports Blue Sign information transmissions used for safe navigation on European inland waterways.

The system uses separate transceiver and display units, providing a compact solution that is suitable for both new installations and AIS system retrofits. The 7-inch high-resolution touchscreen display provides a clear view of AIS and navigation information, while the IP54-rated display is designed for use in marine environments.

This IMO package provides additional equipment for a complete installation, including a Procom CXL 2-1LW/H VHF antenna and pilot cable for the TR-8000 display. External interface cables are connected inside the transceiver unit, helping to simplify installation and system integration.

The Jotron Tron AIS TR-8000 MkII Complete IMO Package is suitable for commercial ships, inland waterway vessels and other professional maritime applications requiring a reliable AIS Class A transponder, vessel tracking and navigation system. It is FCC, MED and MER compliant and approved by ANATEL.

Key Features & Equipment Benefits:

• AIS Class A System: Automatically exchanges vessel information to support safer navigation and vessel tracking.
• IMO Package: Includes the Procom VHF antenna and TR-8000 display pilot cable for a complete installation.
• IEC 61993-2:2018 Compliant: Meets the latest AIS Class A requirements for professional maritime use.
• BAM Compliant: Meets IEC 62923-1 and IEC 62923-2:2018 Bridge Alert Management requirements.
• Inland Waterway Approved: Supports safe navigation on European inland waterways, including Blue Sign information.
• 7" Touchscreen Display: Provides clear, high-resolution viewing of AIS and navigation information.
• Separate Transceiver and Display: Allows flexible positioning and straightforward installation on different vessels.
• Dual Display: Supports two displays for improved visibility of vessel information on the bridge.
• Compact Design: Makes the system suitable for new installations and AIS retrofits.
• IP54 Display: Provides protection against dust and water splashes in marine environments.
• Automatic Vessel Data Exchange: Shares key vessel information with other AIS-equipped vessels to improve situational awareness.
• Procom VHF Antenna: Supplied as part of the IMO package for AIS communication.
• Pilot Cable: Included for connection to the TR-8000 display.
• Professional Approvals: FCC, MED and MER compliant and approved by ANATEL.

Technical Information:

• Model: Jotron Tron AIS TR-8000 MkII Complete IMO Package
• Product Number: 103670
• AIS Type: Class A Automatic Identification System
• Display: 7" high-resolution touchscreen
• Display Rating: IP54
• Transceiver: Separate transceiver unit with internal external-interface connections
• Display Configuration: Dual-display capable
• AIS Standard: IEC 61993-2:2018
• BAM Standards: IEC 62923-1 & IEC 62923-2:2018
• VHF Antenna: Procom CXL 2-1LW/H, 0 dBd
• Pilot Cable: TR-8000 display pilot cable, supplied
• Inland Waterway: Approved for inland waterway installations
• Blue Sign: Supports Blue Sign information transmissions
• Approvals: FCC, MED, MER and ANATEL
• Installation: Suitable for new installations and retrofit applications
