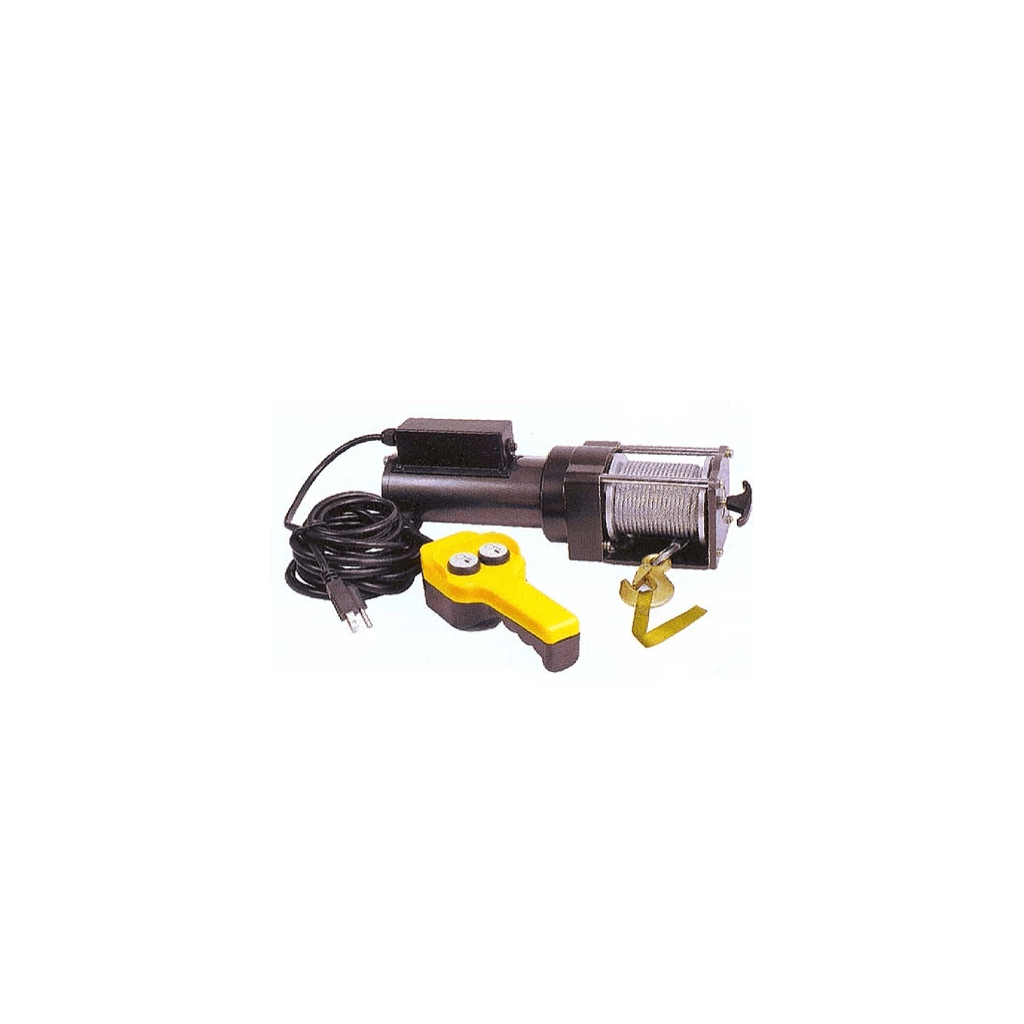

110V Marine Grade Davit Winch

£780.00 £650.00
In stock
SKU
40020390
- +

A 110V Marine-Grade Davit Winch, that has a lifting capacity of 1,500 lbs (680 kg), enabling you to easily hoist and relocate sizable and weighty items on-board your ship or vessel.

Marine-Grade Electric Davit Winch - 110V Motorized Winch for Davits - 110 Volt Motorized Winch

110V Marine Grade Davit Winch - the ideal solution for lifting and moving heavy objects on your boat! Designed with convenience in mind, this Marine-Grade Davit Winch is powered by a 110V motor, making it easy to use and operate! Made from high-quality materials, this winch is built to withstand even the toughest marine environments.

Key Features & Equipment Benefits:

  • Heavy-Duty Performance: With a pulling capacity of 1,500 lbs (680 kg), offering heavy-duty performance that allows you to lift and move large, heavy objects on your boat or vessel.

  • 110V Motor: the davit winch comes with a powerful 110V motor that provides a fast line speed for quick and easy lifting and moving of heavy objects on your boat.

  • Low Amp Draw: The winch is designed with a low amp draw, which means it uses less power and is more energy-efficient.

  • Automatic Load-Holding Brake: The 'Self-Locking' automatic load-holding brake provides additional safety and security when lifting heavy objects, preventing the load from slipping or dropping.

  • Free Spooling: The free spooling feature allows you to easily unwind the cable or rope from the winch drum, making it quick and easy to attach or detach objects.

  • Power In - Power Out: The winch is equipped with a power in and power out function, which allows you to easily control the movement of the load in both directions.

  • Remote Control: The included remote control allows for easy and precise control of the winch, making it convenient to operate from a distance.

  • Fast and Efficient: The powerful motor and fast line speed make lifting and moving heavy objects quick and easy, saving you time and effort.

  • Energy-Efficient: The low amp draw design saves you money on energy bills and makes the winch more environmentally friendly.

  • Safe and Secure: The automatic load-holding brake provides additional safety and security, preventing the load from slipping or dropping.

  • Easy to Use: The free spooling and power in-power out features, along with the included remote control, make the winch easy to use and operate.

Technical Information:

  • Power Supply: 110V Motor
  • Rated Line Pull / Maximum Load Capacity: 1,500 lbs (680 kg)
  • Galvanized aircraft cable min. break force of 4000 lbs
  • Net Weight: 19.3lbs (8.8kgs)
  • Self-Locking Brake
  • CE Approved

Contact Us

Need any help? Get in touch with an expert via the contact form below.

Contact us
Jot us a note and we’ll get back to you as quickly as possible.
More Information
Price £650.00

SPECIFICATION



  • Rated Line Pull: 1500lbs / 680kg

  • Motor: 0.8 Hp, AC source 110 V 60 Hz, 1 Phase

  • Gear Ratio: 261.8:1

  • Gear Train: 2-Stage planetary

  • Brake: Self-Locking

  • Drum: Ø2"x3.25"(50mmx82mm)

  • Drum Flange: Ø3.78" (96mm)

  • Rope Supplied: Steel Cable Ø3/16"x35'(Ø4.76mmx10.7m)

  • Hook: 3/16"

  • Winch Dimension: 15.6"x4.1"x5.4"(397x105x138mm)

  • Mounting Bolt Pattern: 1.89"x3(48x76mm)

  • Net Weight: 19.3lbs (8.8kgs)

  • Power IN & Power OUT

  • Free Spooling

  • Power Cable: Length 8ft with 3-prong plug, 18AWGX3C

  • Switch Cord: 10ft 2inch, 18AWG/5C



Performance of First Layer



Line Pull Line Speed Motor Current



Lbs Kgs Fpm Mpm Amp
0 0 9.8 3.0 2
500 228 9.2 2.8 3.5
1000 454 7.5 2.3 6.5
1500 680 5 1.5 9.5



Line Pull & Cable Capacity by Layer



  Rated Line Pull Cable Capacity



Cable Layer Lbs Kgs Ft Metres
1 1500 680 11 3.4
2 1300 590 24 7.3
3 1150 522 39 11.9
4 1040 472 50 15.2
