12v Davit Drum Winch - Stainless Steel Wire Rope & Davit Hook - Stainless Steel Wire Rope Davit Drum Winch - 12V with Davit Hook

£822.00 £685.00
In stock
SKU
40020559
- +

The RP1000-1200 Hoist/Crane Davit Drum Winch serves as an alternative to marine davits, specifically for replacing Rule production models made between 1960 and 2000. These models are commonly found on boats manufactured by popular brands such as Bayliner. The RP1000-1200 includes a built-in mechanical brake and is suitable for overhead applications of up to 1,000 lbs in weight. It comes in two drum lengths and is available in either stainless steel or regular steel.

NOTE:  most recommended option is the short frame with a stainless steel drum and stainless steel fasteners.

Stainless Steel Wire Rope Davit Drum Winch - 12V with Davit Hook for Marine Applications

12V Marine Grade c/w Stainless Steel Wire Rope and Davit Hook:

The RP1000-1200 Hoist/Crane Davit Drum Winch is an alternative option for marine davits, specifically designed to replace the Rule production models manufactured between 1960 and 2000, which are commonly found on boats like Bayliner. This winch features a built-in mechanical brake and can handle overhead applications of up to 1,000 lbs. It is available in two drum lengths and can be made of stainless steel or regular steel. It is worth noting that the most recommended model is the short frame with a stainless steel drum and fasteners.

Key Features & Equipment Benefits:

  • Compact - fits into tight spaces. The Hoist/Crane Davit Drum Winch is a highly versatile and efficient piece of equipment that boasts a range of impressive features. One of its standout qualities is its compact size, which allows it to fit into tight spaces with ease. This is particularly useful for boat owners who need to store their equipment in small areas or who want to maximize the space available on their vessel.
  • Approved for overhead lifting. This the This means that it is capable of lifting loads vertically and is designed to meet the safety standards required for this type of application. This feature is especially important for boat owners who need to lift heavy items such as dinghies, outboard motors, and other equipment onto their vessel.
  • Designed to retrofit existing davit systems. This makes it an ideal replacement for older equipment that may no longer be functioning as well as it should be. Retrofitting the 12v marine grade davit winch is a simple and straightforward process that can be completed by most boat owners with basic mechanical skills.
  • 1,000 lbs deadlift capability. In terms of lifting capacity, the marine grade davit 12v winch is capable of deadlifting loads of up to 1,000 lbs. This is a significant amount of weight and makes the winch suitable for a wide range of applications. Whether you need to lift heavy equipment onto your boat or simply want to streamline your lifting process, the 12v marine grade davit winch is up to the task.
  • Built-in mechanical brake. The 12v marine grade davit winch also features a built-in mechanical brake. This is a safety feature that prevents the load from dropping if the winch is accidentally released or if there is a power failure. The brake ensures that the load is held securely in place, providing peace of mind for boat owners and their crew.

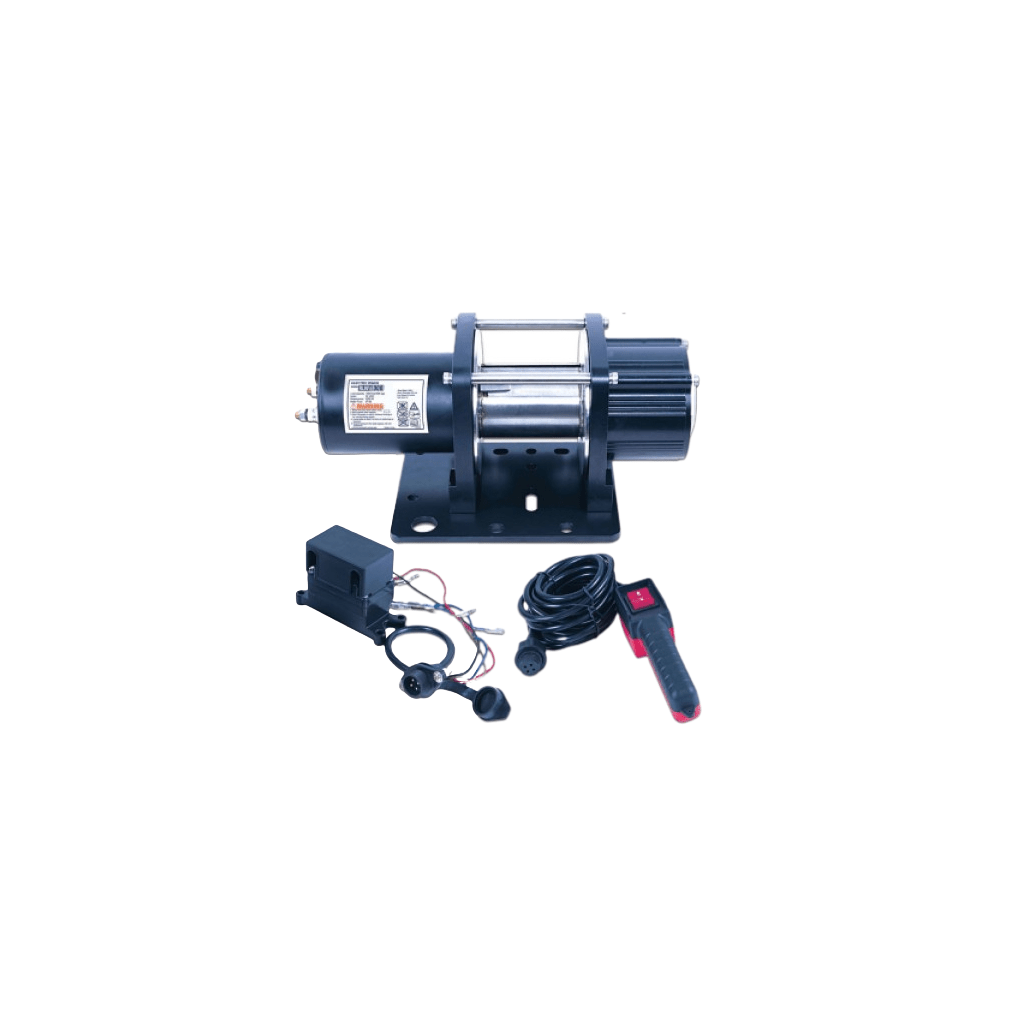

Model #RP1000 Sold Complete with:

  • Wiring harness
  • Wired Remote Control
  • Marine Grade 250 Amp Solenoid

Technical Information:

  • Dimensions: 5.7" H / 5.43" W / 13.5" L (14.5 cm H x 13.8 cm W x 34.3 cm L)
  • Weight: 20 lbs / 9.07 kgs
  • Deadlift: 1000lbs / 454kg
  • Built-in Mechanical Brake
  • Two drum lengths available
  • CE Approved

Contact Us

Need any help? Get in touch with an expert via the contact form below.

Contact us
Jot us a note and we’ll get back to you as quickly as possible.
More Information
Price £685.00

SPECIFICATION

  • Lifting capacity: 1,000 lbs/ 453.6 kgs single line

  • Motor: Permanent magnet - 1 KW

  • Voltage: 12V or 24V

  • Three stage planetary gears

  • Gear Ratio: 165 : 1

  • Spooling: Power in / Power out

  • Drum: 9.2 cm

  • Mounting Bolt Pattern: 12.4 cm x 9.2 cm

  • IP Rating: IP66

  • Dimensions: 5.7" H / 5.43" W / 13.5" L (14.5 cm H x 13.8 cm W x 34.3 cm L)

  • Weight: 20 lbs / 9.07 kgs

  • Deadlift: 1000lbs / 454kg

  • Built-in Mechanical Brake

  • Two drum lengths available
