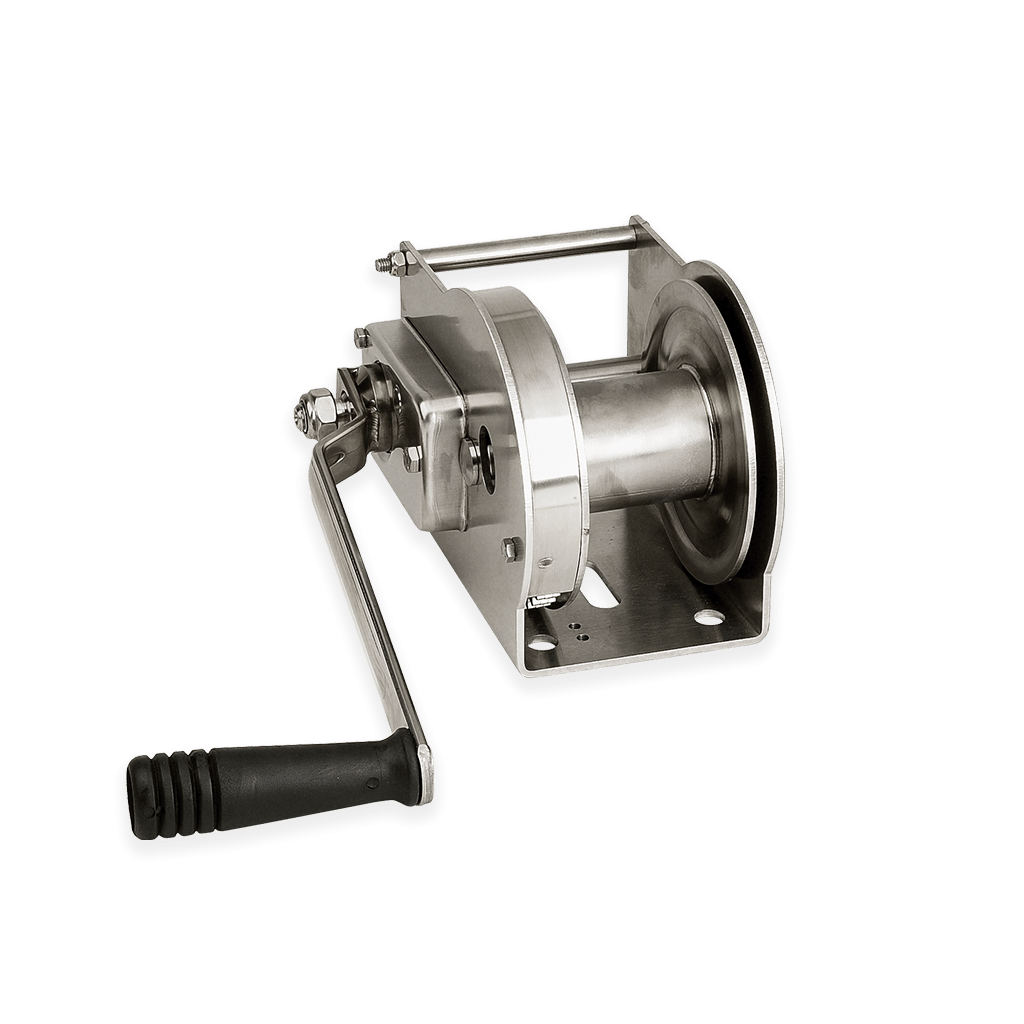

Goliath 6AFID - St/St Marine Grade Manual Winch - GOLIATH Self-Braking Winch - PF53619-C1

The Goliath 6AFID is a 316L stainless steel manual brake winch designed for marine, industrial and private lifting applications. This stainless steel cable winch provides a lifting capacity of up to 500kg / 1,102lbs on the first cable layer, with an automatic self-braking system for controlled load handling.

Designed for demanding marine environments, the Goliath 6AFID features robust 316L stainless steel construction, a protective body and standard mounting configuration. The fixed 200mm handle provides straightforward manual operation, while the automatic brake helps hold the load when the handle is released.

The 6AFID is available for use with Ø5mm x 12m or Ø4mm x 22m cable options. Winch capacity varies according to the amount of cable wound onto the drum. With EN 13157-A1 compliance and a stated rolling load capacity of 750kg at a 20% slope, the Goliath 6AFID is a practical stainless steel lifting winch for controlled cable lifting and load-handling applications.

Key Features & Equipment Benefits

• 500kg Lifting Capacity: Provides a maximum rated lifting capacity of 500kg / 1,102lbs on the first cable layer
• 316L Stainless Steel Construction: Provides corrosion resistance for demanding marine environments
• Automatic Self-Braking: Holds the load when operation of the handle is stopped for controlled lifting
• Manual Operation: Provides straightforward mechanical operation without external power
• EN 13157-A1 Compliance: Designed to meet the European standard for manually operated lifting equipment
• CE Certification: Suitable for compliant lifting applications when correctly installed and used
• Protective Body: Helps prevent access to the internal mechanism during operation
• Marine Applications: Manufactured from materials suited to marine environments
• Cable Options: Designed for Ø5mm x 12m or Ø4mm x 22m cable
• Standard Mount: Provides a conventional mounting configuration for installation
• Inclined Load Handling: Provides a stated rolling load capacity of 750kg at a 20% slope
• Fixed Handle: 200mm handle provides manual operation of the winch

Technical Information

• Lifting capacity: 500kg / 1,102lbs
• Construction: 316L stainless steel
• Operation: Manually operated cable winch with automatic brake
• Mount: Standard mount
• Standard: European standard EN 13157-A1
• Certification: CE and GS certified
• Handle: Fixed 200mm handle
• Speeds: 1-speed operation
• Reduction ratio: 1:3.5
• Cable options: Ø5mm x 12m or Ø4mm x 22m
• Winch weight: 3.6kg
