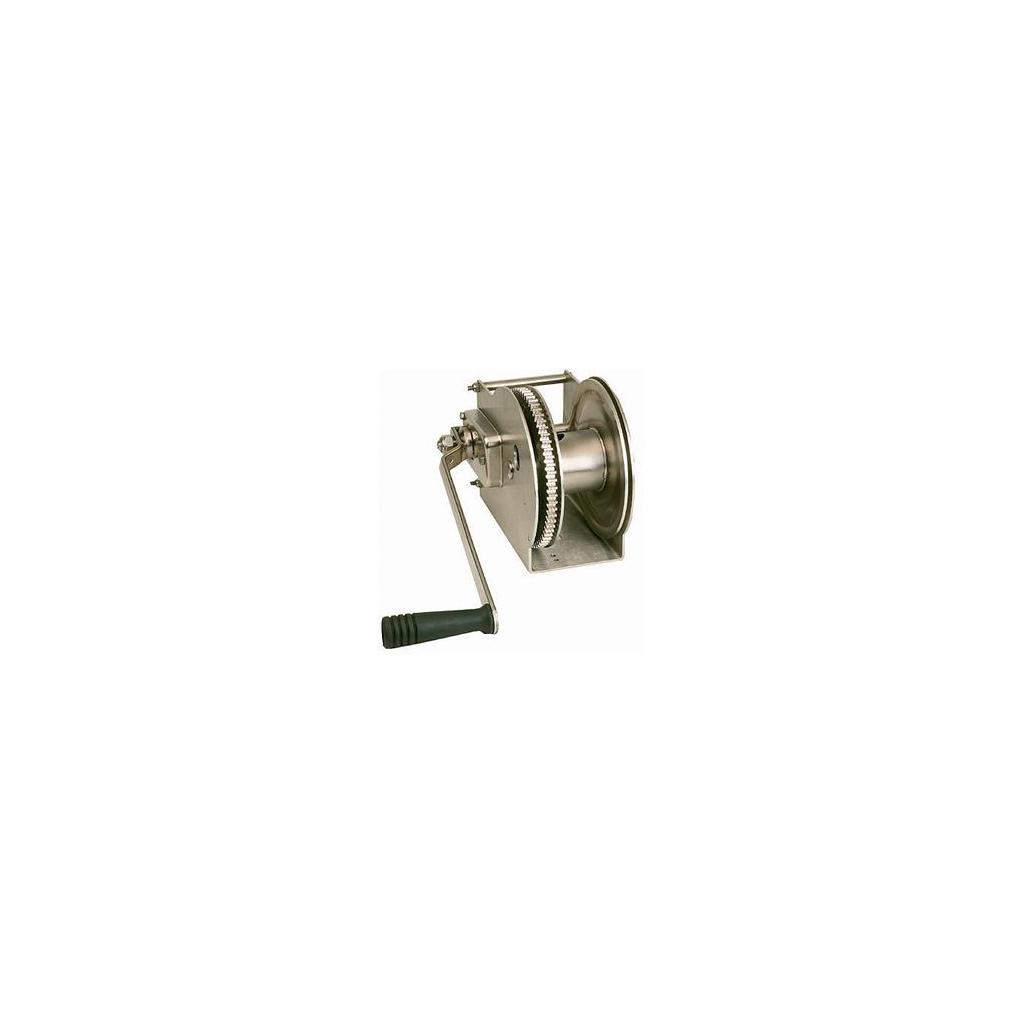

Goliath 8AFID - St/St Marine Grade Manual Winch - GOLIATH Self-Braking Winch - PF53824-C1

The Goliath 8AFID is a manually operated stainless steel brake winch designed for marine, industrial and private applications. Made from durable 316L stainless steel, it is well suited to demanding marine environments where corrosion resistance is important.

The winch provides a lifting capacity of up to 650kg* / 1,433lbs on the first cable layer, with an automatic self-braking system helping to hold the load when the handle is released. It complies with European standard EN 13157-A1 and is CE and GS certified. The protective body helps prevent access to the internal mechanism during operation, while the standard mounting configuration allows straightforward installation.

The 8AFID is available with Ø6mm x 19m or Ø5mm x 30m cable options, with lifting capacity varying according to the amount of cable wound onto the drum. For inclined applications, it has a stated rolling load capacity of 900kg at a 20% slope.

With robust construction, manual operation and automatic braking, the Goliath 8AFID provides a practical solution for controlled cable lifting and load-handling applications.

*Important: Winch lifting capacity varies according to the amount of cable wound onto the drum. The stated 650kg capacity applies to the first cable layer and reduces as more cable is wound onto the drum. Always use the recommended cable diameter and follow the manufacturer's installation, operating and safety instructions. This winch is designed for lifting applications and should not be overloaded beyond its rated capacity.

Key Features & Equipment Benefits:

• 650kg Lifting Capacity: Provides a maximum rated lifting capacity of 650kg / 1,433lbs on the first cable layer
• 316L Stainless Steel Construction: Provides robust corrosion resistance for demanding marine environments
• Automatic Self-Braking: Holds the load when operation of the handle is stopped for controlled lifting applications
• Manual Operation: Provides straightforward mechanical operation without requiring external power
• EN 13157-A1 Compliance: Designed to meet the European standard for manually operated lifting equipment
• CE & GS Certified: Certified to applicable European safety and quality requirements
• Protective Body: Helps prevent access to the winch mechanism during operation and supports safe use
• Marine Applications: Manufactured using materials suited to marine environments
• Cable Options: Designed for use with Ø6mm x 19m or Ø5mm x 30m cable
• Standard Mount: Provides a conventional mounting configuration for installation
• Inclined Load Handling: Rated rolling load capacity of 900kg at a 20% slope
• Automatic Brake System: Provides a permanent braking function without relying on continued handle operation

Technical Information

• Lifting capacity: 650kg / 1,433lbs
• 316L stainless steel construction
• Manually operated cable winch with automatic brake
• Standard mount
• European standard EN13157-A1
• CE and GS certified
• Fixed 250mm handle
• 1-speed operation
• Reduction ratio: 1:4.85
• Cable options: Ø6mm x 19m or Ø5mm x 30m
• Winch weight: 5.5kg
