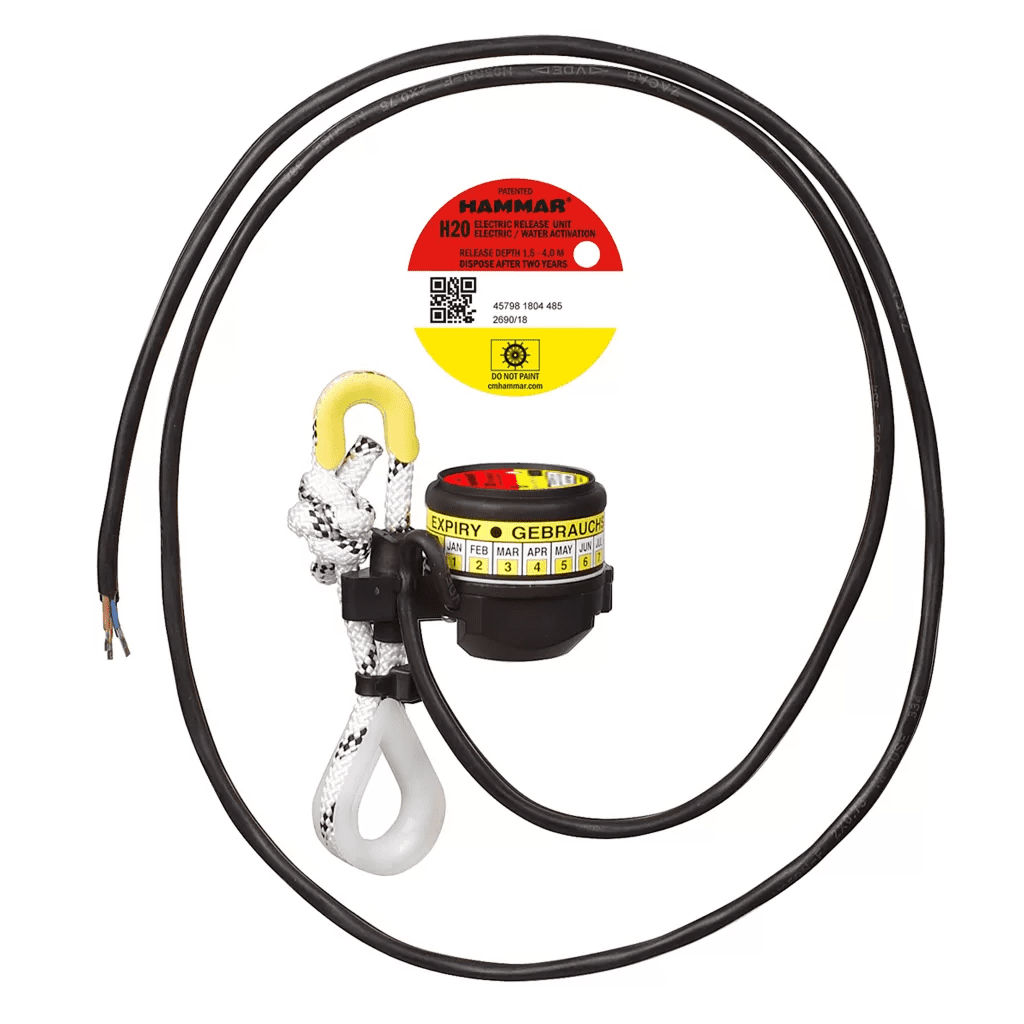

H20 ERU - Electric Remote Unit (RED/YELLOW) - H20 for MES - Electric / Water Activated Electronic Release Unit - EC Approved Electronic Release Unit - HM-0405
The H20/ERU Electric Remote Unit (RED/YELLOW) is an EC-approved, water-activated electric release unit (ERU). Engineered for dependable performance, this electric remote unit (ERU) activates automatically at a release depth of 1.5 to 4 metres.
*No weak link is included with this unit.
H20 ERU - Electronic Release System (RED/YELLOW) - Water Pressure / Auto-Release Liferaft Unit - HM-0405
The Hammar H20/ERU is a water-activated electric release unit designed for marine evacuation systems. Compact at just 0.3kg, it features a release depth of 1.5–4.0 metres and includes a durable white rope sling with a minimum breaking strength of 15 kN. EC-approved and supplied without a weak link, this ERU integrates with Hammar’s Electronic Remote Release Systems (ERRS). These remote systems use a control unit to send an electrical signal that activates one or multiple H20 ERUs at the push of a button. With no limit on distance between control and release points, input sensors such as water or list angle detectors can also be added. Ideal for large-scale systems with multiple release points or installations over 50 metres in length.
Key Features & Equipment Benefits:
- Electric/Water Activation: Enables automatic release when submerged, ensuring rapid deployment without manual intervention
- Release Depth – 1.5 to 4.0 Metres: Calibrated for accurate activation within standard MES operational depth range
- White Rope Sling – Minimum 15 kN Breaking Strength: Provides secure and reliable connection during deployment
- Lightweight Design – 0.3kg: Easy to handle and install with minimal impact on system weight
- No Weak Link Supplied: Suitable for systems that do not require a weak link, offering direct configuration compatibility
- EC Approved – Module B Certification: Meets international safety standards for use in marine evacuation applications
- Distinctive RED/YELLOW Colour Coding: Allows quick visual identification during installation and inspection
- Designed for MES Use: Engineered specifically for integration into Marine Evacuation Systems (not standard HRU setups)
- Remote Operation: Trigger release of LSAs from a central control unit or multiple remote stations
- Unlimited Distance Capability: No limitation between Control Unit and Release Units
- Fully Customisable: Adapted for systems with multiple liferaft stations or large-scale installations over 50m in length
- Sensor Integration: Supports input sensors (e.g. water ingress, list angle detection, hydrostatic pressure) for automatic triggering
- Minimal Maintenance: Designed for durability and low upkeep in marine conditions
- Reliable in All Conditions: Proven performance in harsh environments and emergency situations
Technical Information:
- Approvals: EC approved
- Product Specification: RFD MES type, EC approved
- Breaking Strength: White rope sling: minimum 15 kN, Weak link: 2,2 +/- 0,4 kN
- Release Depth: 1,5 - 4 m
- Weight: 0.31kg
SPECIFICATION
Notes: No weak link supplied.
