Inflatable Jump Cushions SP16, SP25 & SP60

£0.00
In stock
SKU
Inflatable Jump Cushions

Ordering this product

To discuss your requirements in detail or for a specific quotation, please email us or phone +44 (0) 1202 657814

- +

Inflatable jump cushions for fast response rescue of a casualty at height.

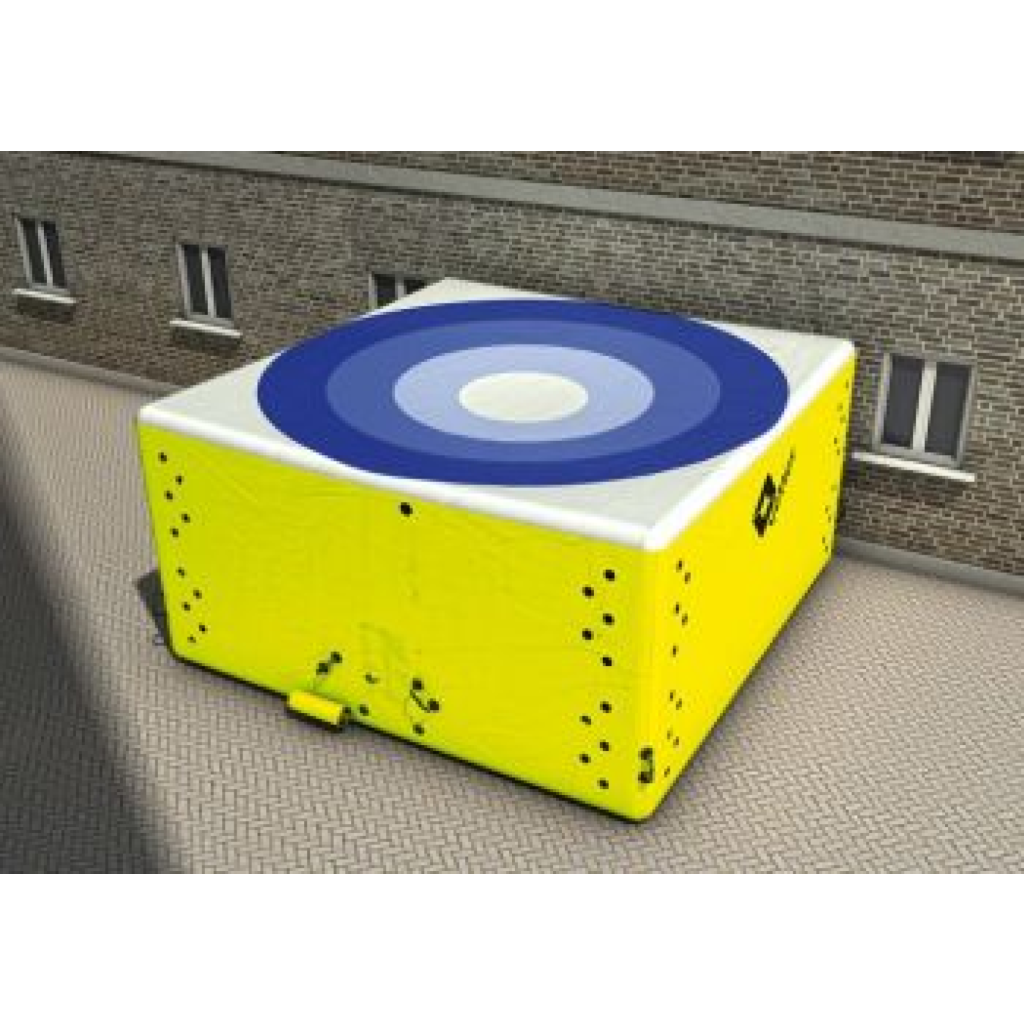

INFLATABLE JUMP/RESCUE CUSHIONS

The inflatable jump/rescue cushion is ideal for fast response rescue of a casualty at height.

The inflatable frame supports a cushion which is divided into two chambers. On impact, the cushion temporarily deforms and absorbs the force of the landing. On removing the person, the cushion recovers its form within a few seconds ready to be used again.

Available sizes:

 SP16 - Maximum jump height of 16m

 SP23 - Maximum jump height of 23m

 SP30 - Maximum jump height of 30m

 SP40 - Maximum jump height of 40m

Custom sizes are also available upon request - please contact us to discuss your requirements.

SPECIFICATION



SP 16

SP 23

SP30

SP 40

L x B x Ht

3.5 x 3.5 x 1.7 m

4.5 x 4.5 x 2.3 m

5.7 x 5.7 x 2.5m

8.5 x 8.5 x 3.7 m

Ground required

3.8 x 3.8 m

4.9 x 4.9 m

6.1 x 6.1m

9 x 9 m

Deployment

2 persons / 30 secs.

4 persons / 60 secs.

4 persons / 60

secs.

4 persons / 120 secs.

Max Jump

16 m

23 m

30m

40 m

Recovery time

10 seconds

20 seconds

20 seconds

20 seconds

Inflation

1x 6L / 300 bar cyl.

1x 8L / 300 bar cyl

2 x 6L / 300 bar cyl.

5x 6L / 300 bar cyl.

Connection

As brigade standard air cylinder.







Weight

55 kg (with cyl)

80 kg (with cyl)

120 kg (with cyls)

250 kg (with cyls)

Packed

900 x 550 x 300 mm

1250 x 650 x 500 mm

1550 x 750 x 550mm

1700 x 950 x

750 mm

Compliance

DIN 14151, 1-3
