TRBOXTER 250 Compact Electric Winch

£6,325.00
In stock
SKU
40020220
- +

Compact electric winch with a safe working load of 250 Kg

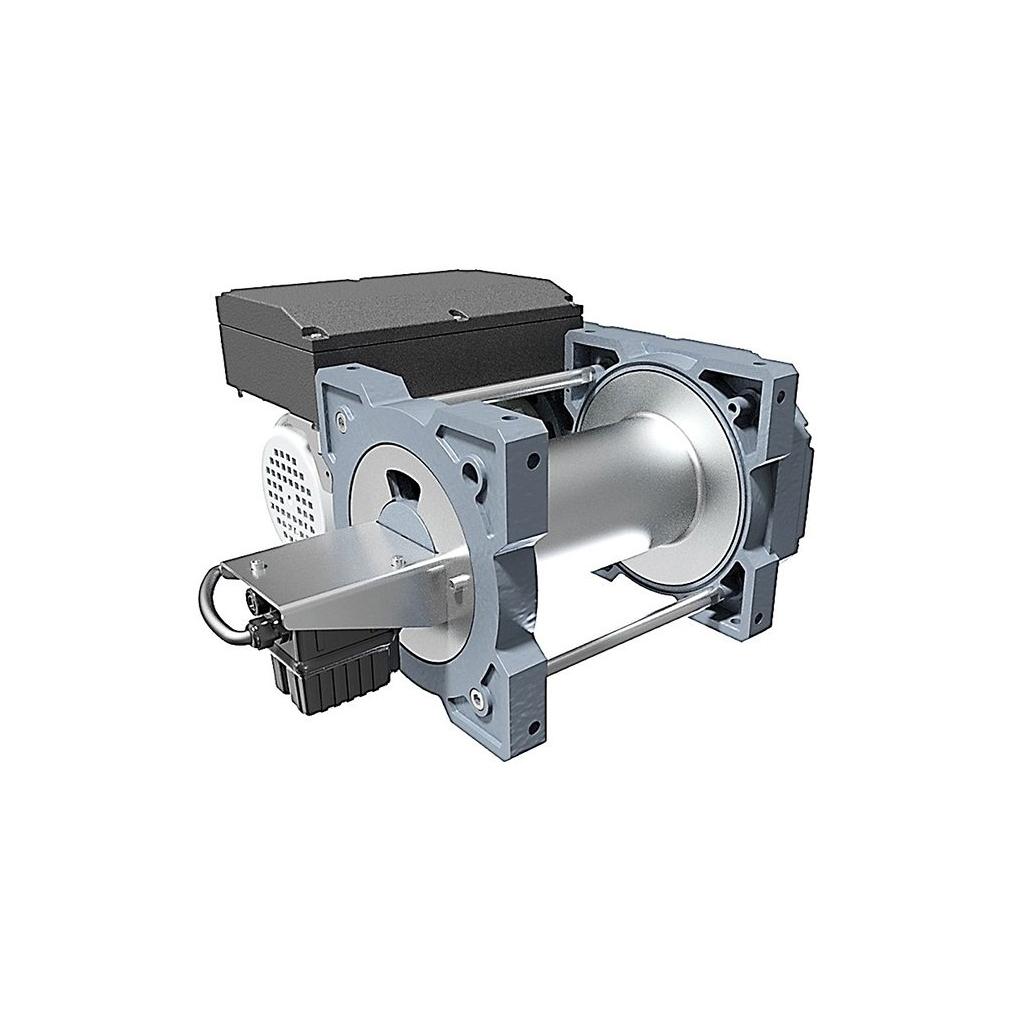

TRBOXTER COMPACT ELECTRIC WINCH - 250KG

A compact electric winch with a safe working load of 250 Kg (larger capacity winches are available upon request).

Can be used in conjunction with the SB Rescue Sling and Davit as an emergency man overboard appliance (though it's not intended for everyday lifting of personnel).

SPECIFICATION

  • Stainless steel drum (316 L)

  • Very low voltage control ensuring user protection against electrical risks

  • Aluminium casing (coated with marine paint C4)

  • Up-down pendant control with emergency stop, cable 3 m long

  • Single phase motor brake 230 V or three-phase motor brake 230/400 V, 50 Hz, lifting type, P = 1.1 kW. Isolation class F. IP 66

  • Reducer in oil bath with helical gears

  • Mechanically welded drum with wide flanges for allowing a secure fastening of the wire rope

  • Lengthened drum on request

  • Limit switch IP 66/67 in option

  • Rope press roll, rope slack switch and grooved drum on request

  • Many adaptable options (please contact us to discuss your requirements)
