Premium Lifebuoy Housing - 24" & 30"
In stock
SKU
Standard Lifebuoy Housings
A Standard open fronted lifebuoy housing available for 24" and 30" lifebuoys

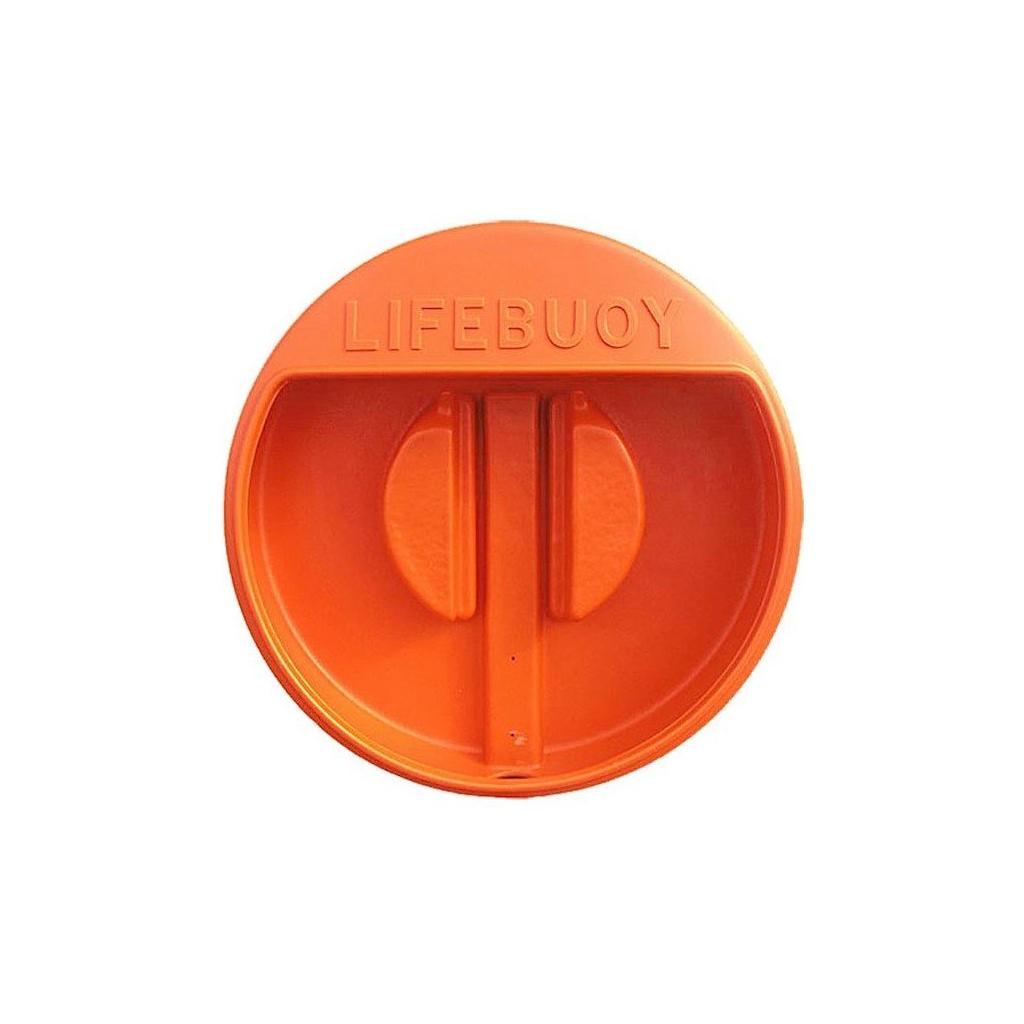

STANDARD LIFEBUOY HOUSING
This popular lifebuoy housing is available in sizes to suit a 24” or 30” lifebuoy.
The design is open fronted for easy access to the lifebuoy and line stored inside. The life ring is located onto two internal hooks and the encapsulated safety line fits neatly through the centre.
A front cover is also available for additional weather protection.
For fully closed housings please see our 'Integrated Housings'
Contact Us
Need any help? Get in touch with an expert via the contact form below.
CMS Block | Please select a static block. |
---|
Specifications:
(a) Housings:
To fit 24" Lifebuoy |
To fit 30" Lifebuoy |
|
---|---|---|
Material |
Polyethylene |
Polyethylene |
External Diameter |
700 mm |
850 mm |
Depth |
200 mm |
200 mm |
Weight (without Lifebuoy/Line/Mountings) |
5.2 kg |
7.4 kg |
Overall height when pole-mounted |
1710 mm |
1750 mm |
Colour |
Orange |
Orange |
(b) Rail Clamps:
-
To fit both sizes of Housing
-
Supplied in set of 3 with all fixings
-
Material: Stainless Steel
-
Weight (set): 1.0 Kg
(c) Poles (sub-surface):
-
Long pole, available in Galvanised Steel or Glass-Reinforced Plastic, for embedding/cementing into eg a canal-bank
-
To fit both sizes of Housing, and supplied with either a stainless steel nut/bolt (Galvanised pole) or 2 stitch-screws (GRP pole) to secure the Housing to the Pole
Sub-surface Pole: |
Galvanised Steel |
Glass-Reinforced Plastic |
---|---|---|
Length |
2050 mm |
2000 mm |
Cross-Section |
Rectangular 60 x 40 mm |
Circular 60 mm diameter |
Weight |
8.0 kg |
2.5 kg |
(d) Poles (hard-surface):
-
Pole with Base-Plate, for bolting/screwing to eg a wooden jetty, available in Galvanised Steel or Glass-Reinforced Plastic
-
To fit both sizes of Housing, and supplied with either a stainless steel nut/bolt (Galvanised pole) or 2 stitch-screws (GRP pole) to secure the Housing to the Pole
Hard-surface Pole: |
Galvanised Steel |
Glass-Reinforced Plastic |
---|---|---|
Length |
1500 mm |
1500 mm |
Cross-Section |
Rectangular 60 x 40 mm |
Circular 60 mm diameter |
Base-Plate |
200 x 200 mm4 bolt-holes 13 mm diameter |
200 mm diameter4 bolt-holes 13 mm diameter |
Weight |
7.5 kg |
3.1 kg |
