Integrated Lifebuoy Housing - 24" & 30"
In stock
SKU
Lifebuoy Housing: Integrated
An integrated, closed fronted, lifebuoy housing available for 24" and 30" lifebuoys

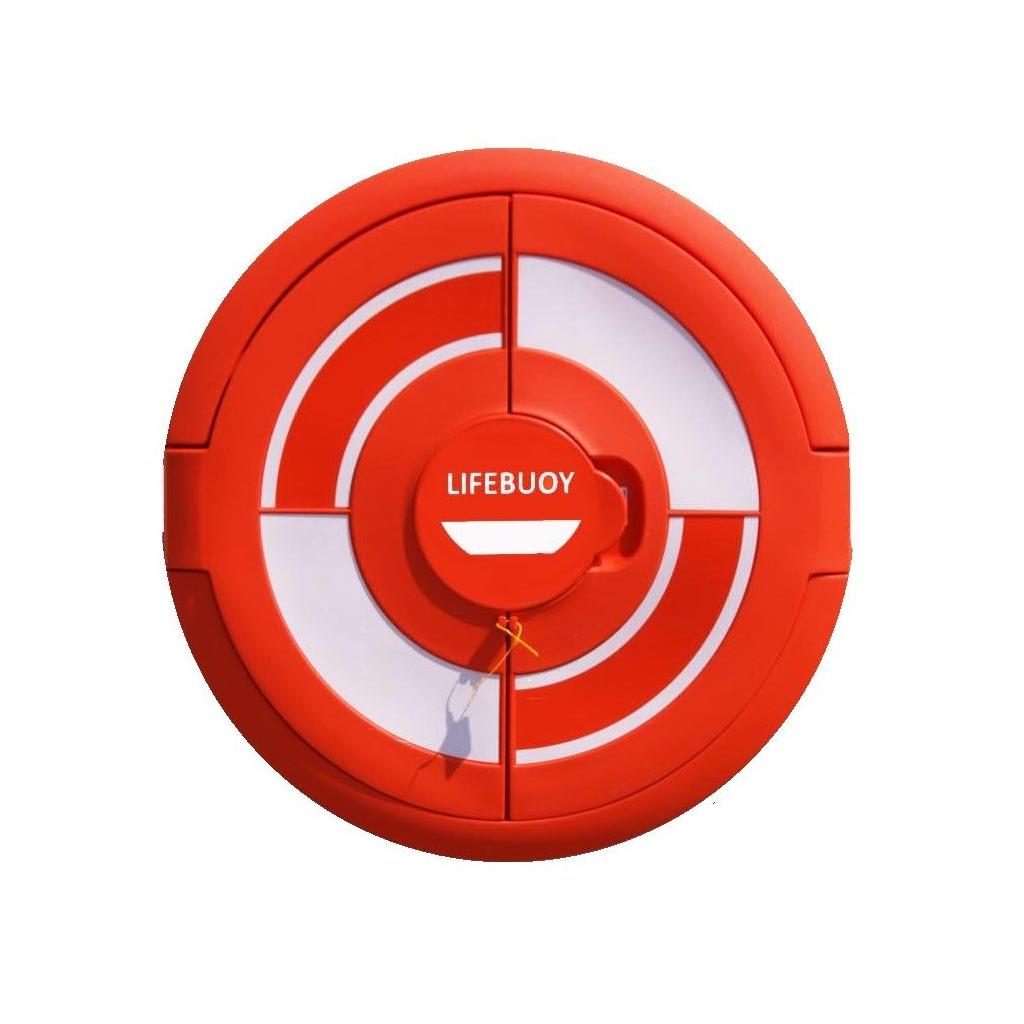

INTEGRATED LIFEBUOY HOUSING
Integrated Lifebuoy Housing. Available in Sizes to Suit a 24” or 30” Lifebuoy.
Designed in consultation with the RNLI. The easy-access door enables fast deployment of the Lifebuoy and Rescue Line as well as offering weather protection.
For mounting into or onto a surface 2 x GRP poles are needed or alternatively a single pole can be used when fitted with the single pole adaptor which is available separately here. This housing also includes a user instruction adhesive sticker.
Contact Us
Need any help? Get in touch with an expert via the contact form below.
CMS Block | Please select a static block. |
---|
Specifications
(a) Housings:
To fit 24" Lifebuoy |
To fit 30" Lifebuoy |
|
---|---|---|
Material |
Polyethylene |
Polyethylene |
Height x Width |
809 x 795 mm |
930 x 918 mm |
Depth |
175 mm |
210 mm |
Weight (without Lifebuoy/Line/Mountings) |
6.5 kg |
12.5 kg |
Overall height when pole-mounted |
1806 mm |
1858 mm |
Colour |
Orange |
Orange |
(b) Rail Clamps:
-
To fit both sizes of Housing
-
Supplied in set of 3 with all fixings
-
Material: Stainless Steel
-
Weight (set): 1.0 Kg
(c) Poles:
-
Available in Glass-Reinforced Plastic: long pole, for embedding/cementing into eg a canal-bank, or base-plate pole for bolting/screwing to eg a wooden jetty
-
To fit both sizes of Housing, and supplied with 2 stitch-screws to secure the Housing to the Pole
Long Pole (sub-surface) |
Base-Plate Pole (hard-surface) |
|
---|---|---|
Length |
2000 mm |
1500 mm |
Cross-Section |
Circular 60 mm diameter |
Circular 60 mm diameter |
Base-Plate |
n/a |
200 mm diameter4 bolt-holes 13 mm diameter |
Weight |
5.0 kg (pair) |
6.2kg (pair) |
