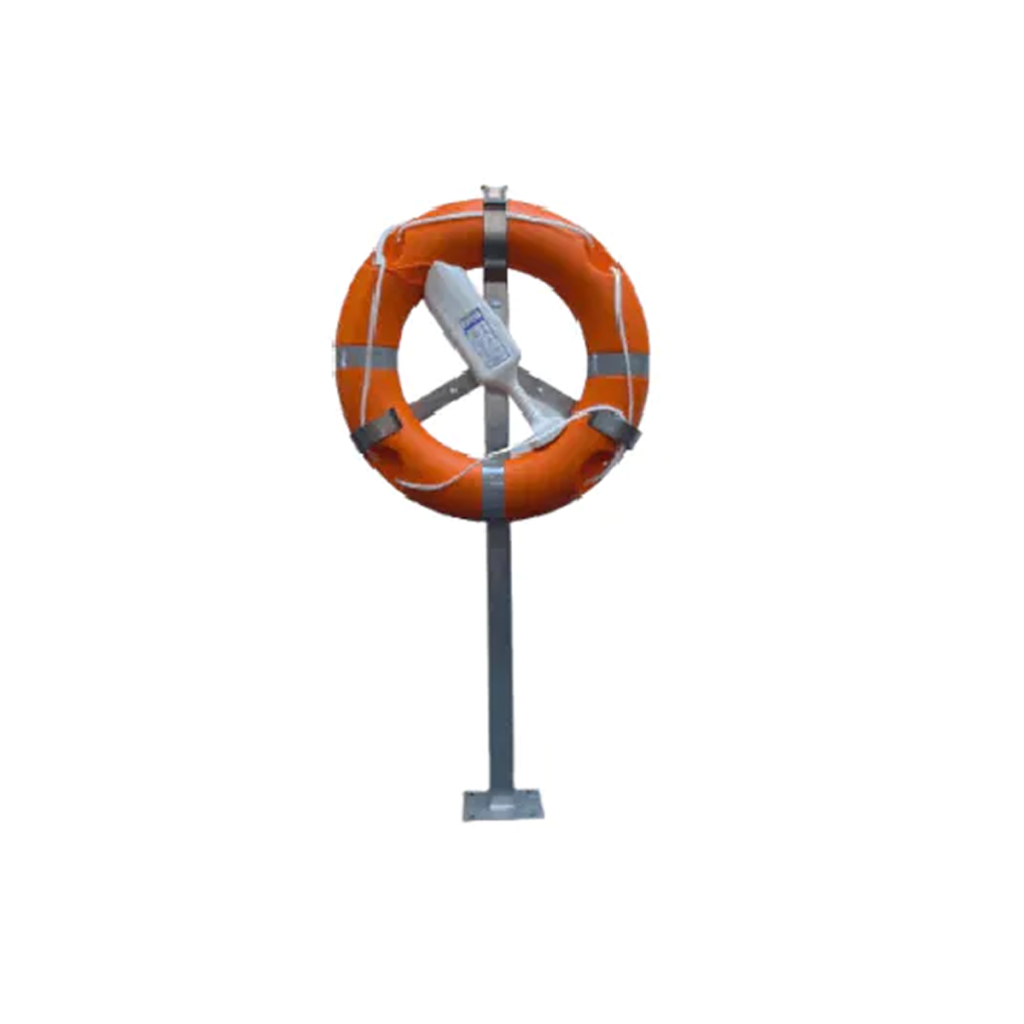

Lifebuoy 'Y' Stand with Galvanised Hard-Surface Pole - Complete with Lifebuoy and Throwing Line

Starting at: £294.96 £245.80
In stock
Only %1 left
SKU
40021125
- +

A complete and durable lifebuoy safety set for hard surfaces. This full setup includes a 24-inch or 30-inch lifebuoy, throwing line, corrosion-resistant stainless steel ‘Y’ bracket, and a galvanised pole with base plate for secure installation on hard ground such as concrete, decking, or quaysides. Ideal for promenades, harbours, and urban waterside areas, it keeps lifebuoys securely mounted and easily accessible in a water rescue emergency. Choose your bracket size to suit either 24-inch or 30-inch lifebuoys.

Hard Surface Lifebuoy Y Stand – Galvanised Pole with Stainless Steel Bracket (24" & 30" Lifebuoys)

A reliable and heavy-duty mounting system for 24-inch and 30-inch lifebuoys. This life ring holder combines a marine-grade stainless steel 'Y' bracket with a galvanised steel pole and pre-drilled base plate for secure installation on solid surfaces like concrete, boardwalks, or pontoons. Ideal for use at harbours, marinas, docks, or public waterfront areas, it provides a stable and highly visible lifebuoy support point for quick access in water rescue situations.

Key Features & Equipment Benefits – Hard Surface Lifebuoy Y-Bracket Setup

  • Complete 'Y' Bracket Hard-Surface Set: Includes Lifebuoy and Throwing Line with Mounting System
  • Stainless Steel Y Bracket: Corrosion-resistant and built to withstand marine environments
  • SS316 Grade Material: Provides high resistance to saltwater and coastal exposure
  • Two Size Options: Select a ‘Y’ bracket to fit either 24-inch or 30-inch lifebuoys.
  • Galvanised Steel Pole: Offers strong, long-lasting support for mounted lifebuoys
  • Surface Mount Base Plate: Allows secure fixing to hard surfaces like concrete, decking, or pontoons
  • Pre-Drilled Mounting Plate: Simplifies installation with ready-to-fix design
  • Stable & Reliable Mount: Ensures the lifebuoy remains secure in public and high-traffic areas
  • Highly Visible Setup: Helps users quickly locate life-saving equipment during emergencies
  • Low Maintenance Construction: Engineered for long-term use with minimal upkeep
  • Ideal for Urban Waterfronts: Perfect for quays, harbours, promenades, jetties, and boardwalks

Technical Information:

  • Bracket: SS316 Marine-Grade Stainless Steel
  • 24-Inch Bracket: 40cm x 40cm x 40cm
  • 30-Inch Bracket: 61cm x 61cm x 61cm
  • Lifebuoy: 24 / 30 inch Lifebuoy and 20 / 30m Throwing Line
  • Pole: Heavy-duty Galvanised Steel
  • Pole Height (above ground): Approx. 1200mm
  • Base Plate: Typically 200mm x 200mm (pre-drilled for secure fixing)

SPECIFICATION



Y Bracket (Stainless Steel)

  • Material: SS316 marine-grade stainless steel

  • Compatibility: Suitable for both 24-inch and 30-inch lifebuoys (select size option)

  • Size:

    • 24" version – 40cm x 40cm x 40cm

    • 30" version – 61cm x 61cm x 61cm

  • Mounting Type: Bracket mount

  • Corrosion Resistance: Yes – designed for harsh marine and coastal conditions

  • Construction: Sturdy and durable

  • Accessibility: Ensures quick and easy access to the lifebuoy in emergencies

  • Application: Marine, coastal, inland waterway, and other waterside environments

  • Installation: Simple and secure mounting

  • Longevity: Built for long-lasting performance

  • Weight: Lightweight yet robust

  • Maintenance: Minimal maintenance required

  • Certifications: Meets relevant safety standards and regulations



Galvanised Base Plate Pole

  • Material: Galvanised steel

  • Installation Type: Surface mounting – features integrated base plate for fixing to hard ground

  • Application: Ideal for concrete, tarmac, boardwalks, decking, and other solid surfaces

  • Corrosion Resistance: Yes – suitable for long-term exposure to marine environments

  • Mounting Stability: Secure surface fixing with strong base plate

  • Durability: Built for demanding environments and heavy outdoor use

  • Maintenance: Low maintenance requirement

Contact Us

Need any help? Get in touch with an expert via the contact form below.

Contact us
Jot us a note and we’ll get back to you as quickly as possible.

What Comes in a Lifebuoy Set?

Each lifebuoy set includes, as standard, a lifebuoy—either a non-SOLAS 24" (1.3kg) lifebuoy or a SOLAS/MED approved 30" (2.5kg) lifebuoy. All lifebuoys come with an encapsulated throwing line or floating line, a durable housing cabinet, and mounting accessories such as poles for hard or soft ground, depending on your installation requirements.

What Lifebuoy Housing Options Are Available?

We offer a wide range of lifebuoy housing solutions suitable for 24" and 30" lifebuoys, designed to provide versatile protection across various marine and waterside environments. Options include an open-fronted cabinet—with an optional front cover available—or an integrated cabinet with built-in doors for added security and weather protection.

What Materials Are Used to Make the Lifebuoy Housing Cabinets?

All lifebuoy cabinets are made from high-quality, UV-resistant polyethylene, ensuring robust construction and long-lasting protection from the elements.

How Long Is the Throwing Line Provided with the Lifebuoy?

Both the 24-inch and 30-inch lifebuoys come with encapsulated throwing lines securely housed inside the lifebuoy. This design ensures the line remains protected and ready for quick, reliable deployment—20 metres for the 24-inch lifebuoy and 30 metres for the 30-inch version. Alternatively, 30-metre floating lines can be used, which clip directly to the lifebuoy. Longer line lengths are also available and are commonly used for commercial offshore applications, including bespoke throwline solutions.

What Sizes of Lifebuoys Are Available in The Sets?

Our lifebuoy sets include lifebuoys in two standard sizes: a 24-inch (1.3kg) non-SOLAS lifebuoy and a 30-inch (2.5kg) SOLAS and MED approved lifebuoy. Both options come with encapsulated throwing lines and are designed to support effective rescue performance across a wide range of water safety applications.

What Mounting Options Are Available for Lifebuoy Sets?

Cabinets can be wall-mounted by fixing directly through the unit using manual screws. You can also choose from galvanised or GRP sub-surface poles for soft ground, hard-surface base plate poles for concrete or paved areas, or rail clamps to securely attach the cabinet to railings.

What Is the Difference Between Premium and Budget Lifebuoy Sets?

Premium Lifebuoy Sets feature lockable cabinets with hinged doors, high-quality galvanised or GRP poles, and durable, colourfast materials designed for harsh marine environments. Budget Lifebuoy Sets offer essential lifebuoy and throw line equipment with robust, cost-effective housings and mounting options, suitable for standard applications and compliant with surveyor requirements. The premium and integrated cabinets are available in two sizes for 24” and 30” lifebuoys. Both include internal mouldings that securely hold the lifebuoy and encapsulated throwing line. Premium cabinets are open-fronted with an optional cover, while integrated cabinets have hinged doors that conceal the equipment, providing theft deterrence. Budget cabinets come in a single size, fitting lifebuoys up to 30”. The lifebuoy rests on a protruding peg, and an optional front cover is available for added protection.

What Types of Poles and Mounting Options Are Included?

Our lifebuoy sets offer a variety of mounting solutions to suit different installation requirements. Options include galvanised or GRP sub-surface poles for soft ground, hard-surface base plate poles for secure mounting on solid surfaces, and rail clamps for attaching cabinets to railings. You can also choose to mount your lifebuoys with Y-stands with stainless steel brackets.

Can the Lifebuoy Housing Cabinets Be Mounted on Railings?

Yes, the lifebuoy and housing sets come in configurations that can be securely mounted on railings using specially designed rail clamps in both premium and budget versions. This option is ideal for locations where ground installation is not possible or practical, ensuring safe and convenient access to the lifebuoy.

Are These Lifebuoy Sets Compliant with Safety Standards?

All of our lifebuoy and housing sets fully comply with current European standards and regulations for lifebuoy equipment, as established by the National Water Safety Forum (NWSF). This includes BS EN 14144 for lifebuoys and BS EN 14145 for lifebuoy holders, ensuring safety and compliance with International Maritime Organisation (IMO) regulations. Together, these standards guarantee reliable performance and secure housing for effective water rescue, giving you peace of mind as an end-user or surveyor.

How Do I Choose the Right Lifebuoy Set for What I Need?

Consider your installation surface—soft ground requires galvanised or GRP sub-surface poles, hard ground needs base plate poles, and railings require rail clamps. YOu can then choose between premium or budget sets depending on your budget and equipment needs. If you have any questions, please give us a call on +44 (0)1202 657814 or email info@icbrindle.com

How Should Lifebuoy Sets Be Installed?

Install your lifebuoy sets at a height between 900mm and 1100mm from the ground or water level, ensure they are clearly visible, unobstructed, and spaced no more than 50 meters apart along watersides. At the bottom of our product description we have set out resources from the National Water Safety Forum to give you further guidance on how to install your lifebuoy equipment correctly and in-line with the correct safety parameters.

Who Uses These Lifebuoy Sets?

Our lifebuoy sets are suitable for councils, government agencies, maritime and construction industries, sports clubs, campsites, hotels, schools, and more.
