Integrated Lifebuoy Housing Range Set with 2 x Sub-Surface / Hard Surface GRP Poles, 1 x Rail Clamps Mounting Options

In stock
SKU
40020574
Grouped product items
Product Name Qty
24" Integrated Lifebuoy Housing Cabinet with Doors, x 2 Sub-Surface GRP Poles
£380.57 £317.14
30" Integrated Lifebuoy Housing Cabinet with Doors, x 2 Sub-Surface GRP Poles
£416.57 £347.14
24" Integrated Lifebuoy Housing Cabinet with Doors, x 2 Hard-Surface GRP Poles
£406.30 £338.58
30" Integrated Lifebuoy Housing Cabinet with Doors, x 2 Hard-Surface GRP Poles
£442.30 £368.58
30" Integrated Lockable Lifebuoy Housing Cabinet with Doors, x 2 Sub-Surface GRP Poles
£416.57 £347.14
30" Integrated Lockable Lifebuoy Housing Cabinet with Doors, x 2 hard-Surface GRP Poles
£442.30 £368.58
24" Integrated Lifebuoy Housing Cabinet with Doors, 1 x Rail Clamps
£294.00 £245.00
30" Integrated Lifebuoy Housing Cabinet with Doors, 1 x Rail Clamps
£330.00 £275.00
30" Integrated Lockable Lifebuoy Housing Cabinet with Doors, 1 x Rail Clamps
£330.00 £275.00

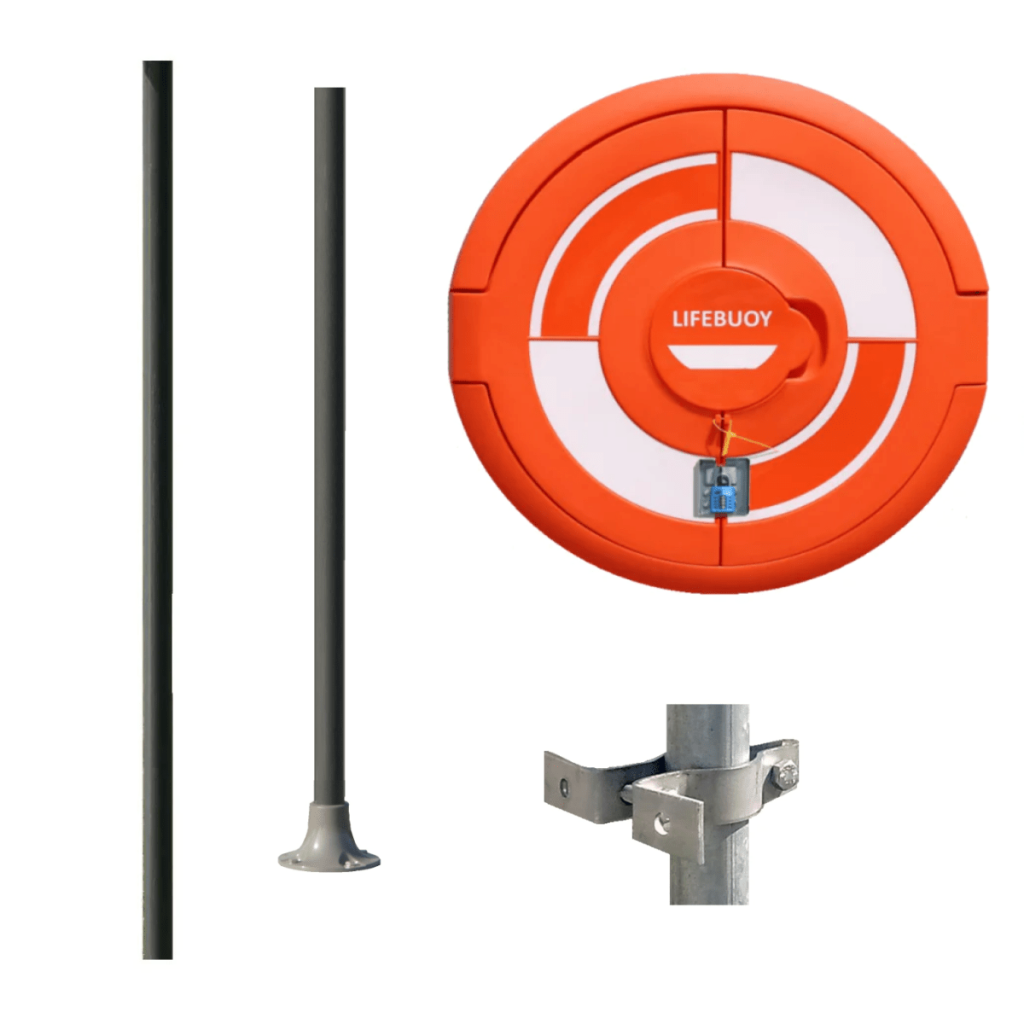

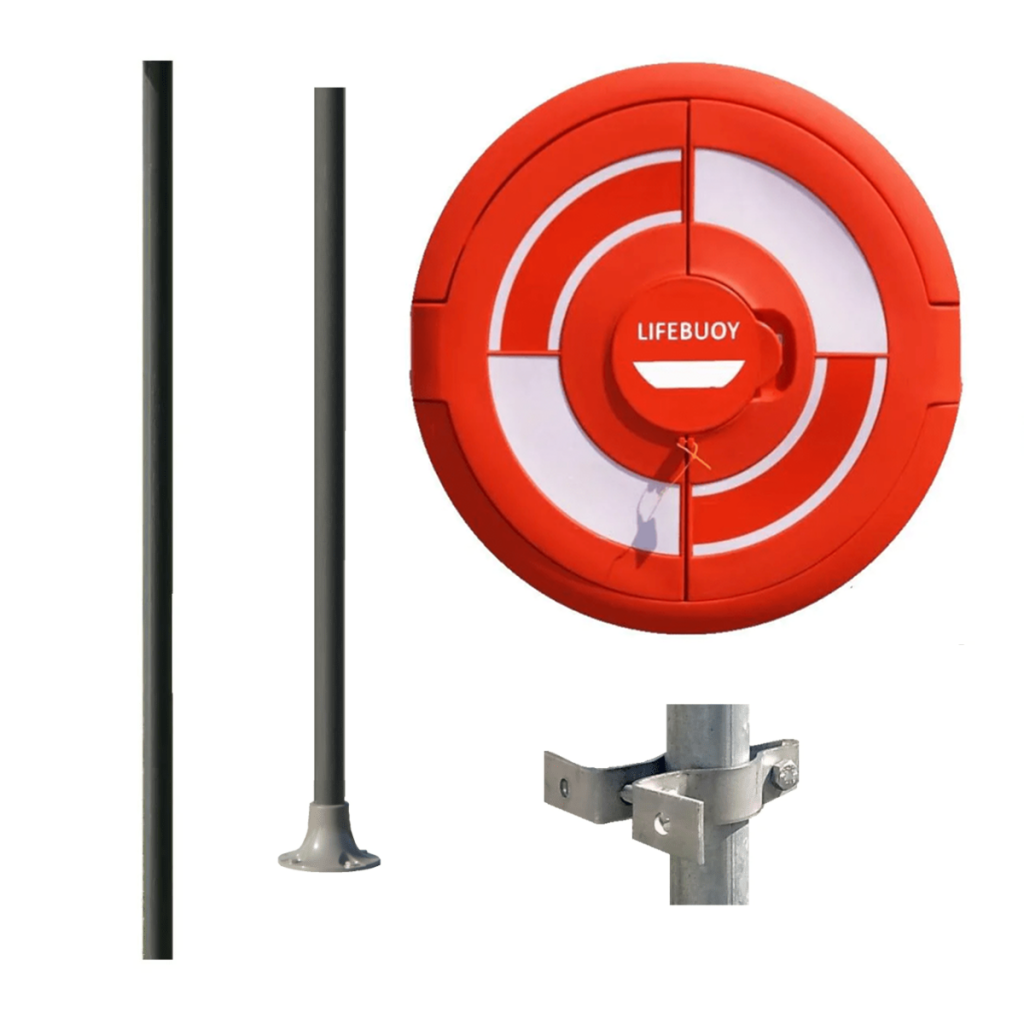

Integrated Lifebuoy Housing Range for 24" and 30" Lifebuoys. Choose between two pole options: the GRP hard-surface pole for areas with concrete or asphalt, or the GRP sub-surface 'long' pole for areas with soft ground. the 30" Integrated Lifebuoy Housing option includes the SOS400 Lockable Housing Cabinet with two interlocking doors for added security.

Integrated Lifebuoy Housing Range 24" & 30" Lifebuoy Housing / Cabinet Set

The Integrated Lifebuoy Housing options for 24" and 30" Lifebuoys. Offering a secure and durable way to store lifebuoys in outdoor areas such: marinas, ports, construction sites, beaches, jettys, lakes, and rivers. The housing unit is designed to encase the lifebuoy and protect it from environmental factors such as wind, rain, and sunlight, which can cause deterioration over time.

One of the options is GRP  hard-surface poles. These poles is designed to provide stability and support to the housing unit, ensuring that it remains upright and in place. The base plate of the pole is bolted securely to the ground, which provides a solid foundation for the housing unit. This option is ideal for areas with hard ground, such as concrete or asphalt.

The other option for the Premium Lifebuoy Housing is a GRP Sub-Surface 'Long' Poles. These poles is specifically designed to be concreted into the ground, which provides a secure anchor point for the housing unit. This option is particularly useful in areas with soft ground, such as sand or loose soil, where a hard-surface pole may not be suitable. The sub-surface pole provides a sturdy and reliable support system for the housing unit, ensuring that the lifebuoy is easily accessible in case of an emergency.

The 30" Lifebuoy Integrated Housing within the range features the SOS400 30" Integrated Lockable Lifebuoy Housing Cabinet and two interlocking doors — for additional security, and protection of the encapsulated lifebuoy and throwing line.

Key Features & Equipment Benefits:

  • Protection and visibility: The housing unit provides protection for the lifebuoy from the elements and increases its visibility, making it easier to locate in emergency situations.
  • Durable construction: The housing unit is made of tough, durable materials that can withstand harsh weather conditions and resist damage from impact.
  • Two pole options: The product comes with two pole options - a GRP hard-surface poles and GRP sub-surface poles - that provide stability and secure installation in different ground conditions.
  • Easy installation: The housing unit is designed for easy installation, with a base plate that can be bolted securely to the ground or a sub-surface pole that can be concreted into the floor.
  • Compatibility Options: The integrated housing units come in 24" and 30" lifebuoys size variations, making it a versatile solution for a range of applications. Including a lockable door option for the 30" lifebuoy integrated housing
  • Compliance: The product complies with international safety standards and regulations, ensuring that it meets the requirements for emergency equipment in different settings.
  • Long-lasting: The durable construction and corrosion-resistant materials ensure that the housing unit will last for many years, providing a reliable solution for emergency response.
  • Low maintenance: The housing unit requires minimal maintenance, reducing the cost and effort of upkeep over its lifetime.
  • Customisation options: The housing unit can be customised with optional features such as signage — for a professional touch.

Technical Information:

24" & 30" Integrated Lifebuoy Housing:



  • Housing Material - High Density Polyethylene
  • Height x Width: 809 x 794mm (to fit 24" lifebuoy), or 930 x 918mm (to fit 30" lifebuoy)
  • Depth: 175m (24 inch Lifebuoy Housing), or 210mm (30 inch Lifebuoy Housing)
  • Overall Height when Pole-mounted: 1806mm for 24" option, or 1858mm for 30 "option
  • Colour: Orange



GRP Sub-Surface Mounting Option:



  • Mounting Pole Material: Glass-Reinforced Plastic (GRP)
  • Length: 2000mm
  • Cross Section: Circular 60mm Diameter
  • Base Plate: N/A
  • Weight: 5kg (2 x GRP poles / pair)



GRP Hard-Surface Mounting Option:



  • Mounting Pole Material: Glass-Reinforced Plastic (GRP)
  • Length: 1500mm
  • Cross Section: Circular 60mm Diameter
  • Base Plate: 200mm diameter, 4 x bolt-holes, 13mm diameter
  • 6.2kg ( 2 x GRP poles / pair)

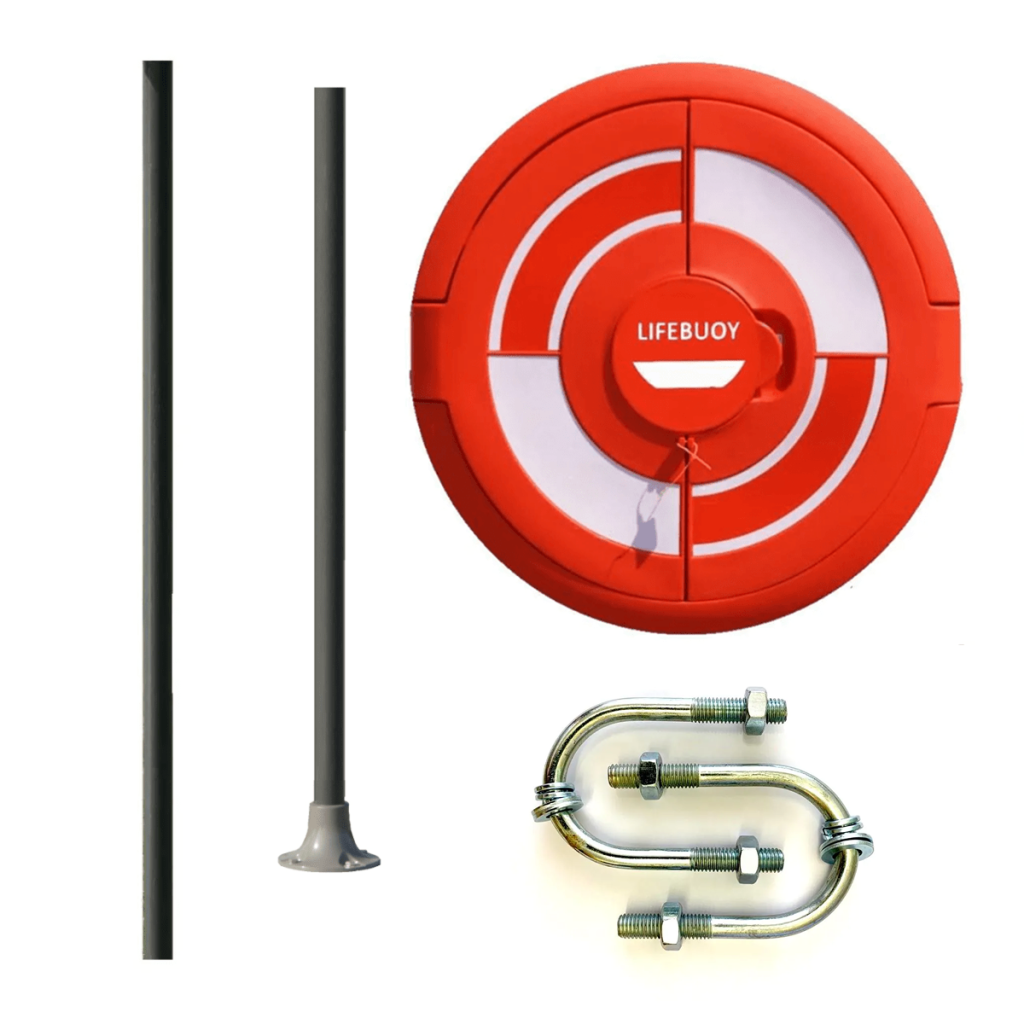

Rail Clamps:



  • 1 x set of rail clamps that can be used to fasten your lifebuoy housing directly to the railing.
  • Includes two galvanised U-bolts, along with M10 nuts and washers






Contact Us

Need any help? Get in touch with an expert via the contact form below.

Contact us
Jot us a note and we’ll get back to you as quickly as possible.

SPECIFICATION



  • Set includes a range of integrated Lifebuoy Housing for either a 24", or 30" lifebuoy, with hard ground GRP poles, or sub-surface GRP pole mounting options.

  • Integrated Lockable Lifebuoy Housing Option Available, for those needing additional security

  • Designed for use in various water environments including marinas, ports, beaches, lakes, rivers, and construction sites

  • Housing unit option accommodate a 24" or 30" lifebuoy and includes an integrated clamping mechanism to securely hold it in place. Lockable options for 30 inch Lifebuoy Housing.

  • Made of durable materials that offer protection against weather elements, corrosion, and UV rays

  • Integrated door, designed in consultation with RNLI, provides easy-access and fast deployment of the lifebuoy and rescue line

  • Mounting Pole Option I: sub-surface GRP poles that are installed below the ground/water surface to provide a stable and secure foundation

  • Mounting Pole Option II:  hard-surface GRP poles that are fitted directly to a hard surface, providing a stable and secure foundation

  • Mounting Option III:1 x set of rail clamps that can be used to fasten your lifebuoy housing directly to the railing. Includes two galvanised U-bolts, along with M10 nuts and washers

  • Low-maintenance sub-surface / hard surface GRP poles, reducing the need for regular maintenance

  • Includes a user instruction adhesive sticker for easy reference

  • Compliant with safety regulations and guidelines for water safety equipment.

  • Overall height when mounted: 1806mm (to fit 24" Lifebuoy), or 1858mm (to fit 30" lifebuoy)

  • Integrated Housing Depth: 175mm (to fit 24" lifebuoy), or 210mm (to fit 30" lifebuoy)

  • Integrated Housing Weight: 6.5kg (to fit 24 inch lifebuoy), or 12.5kg (to fit 30 inch lifebuoy)

  • Colour: Orange
