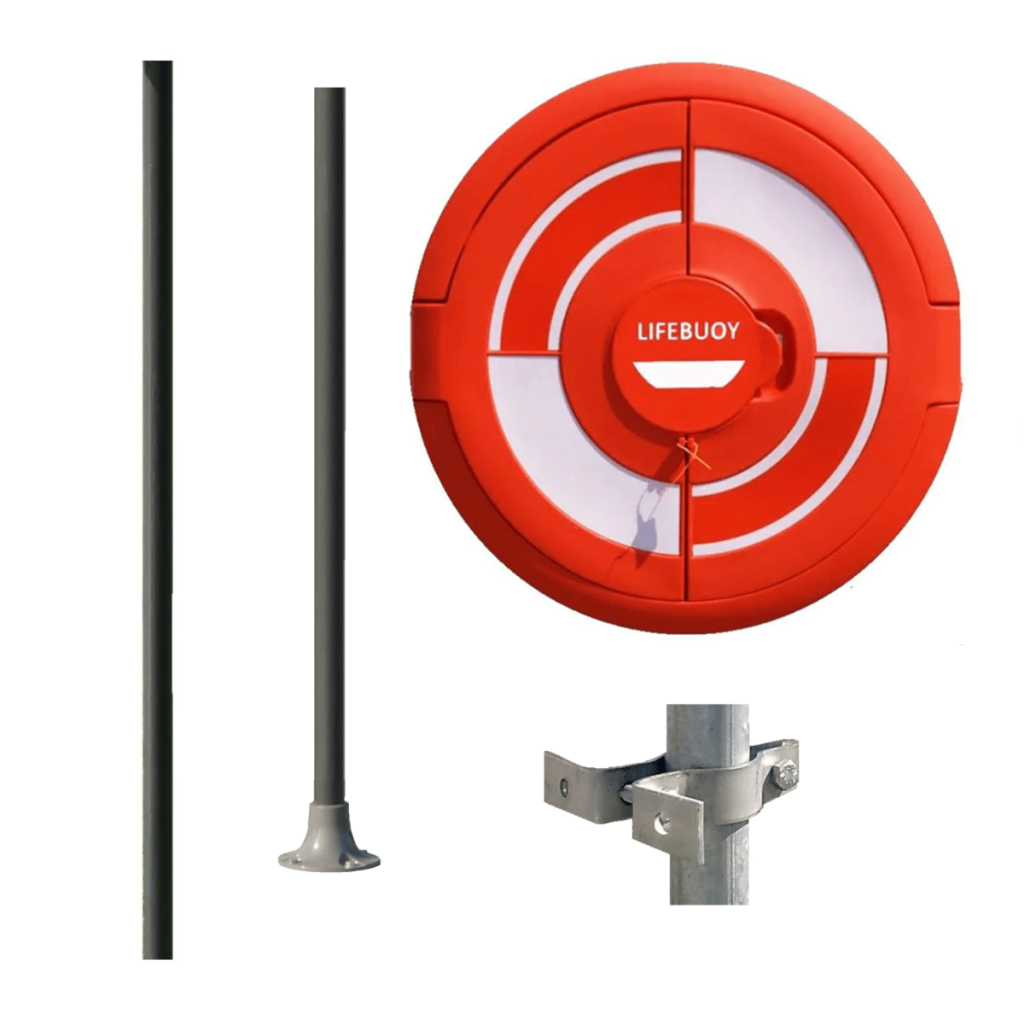

Integrated Lifebuoy Housing Range Set with 2 x Sub-Surface / Hard Surface GRP Poles, 1 x Rail Clamps Mounting Options
Integrated Lifebuoy Housing Range for 24" and 30" Lifebuoys. Choose between two pole options: the GRP hard-surface pole for areas with concrete or asphalt, or the GRP sub-surface 'long' pole for areas with soft ground. the 30" Integrated Lifebuoy Housing option includes the SOS400 Lockable Housing Cabinet with two interlocking doors for added security.
Integrated Lifebuoy Housing Range 24" & 30" Lifebuoy Housing / Cabinet Set
The Integrated Lifebuoy Housing options for 24" and 30" Lifebuoys. Offering a secure and durable way to store lifebuoys in outdoor areas such: marinas, ports, construction sites, beaches, jettys, lakes, and rivers. The housing unit is designed to encase the lifebuoy and protect it from environmental factors such as wind, rain, and sunlight, which can cause deterioration over time.
One of the options is GRP hard-surface poles. These poles is designed to provide stability and support to the housing unit, ensuring that it remains upright and in place. The base plate of the pole is bolted securely to the ground, which provides a solid foundation for the housing unit. This option is ideal for areas with hard ground, such as concrete or asphalt.
The other option for the Premium Lifebuoy Housing is a GRP Sub-Surface 'Long' Poles. These poles is specifically designed to be concreted into the ground, which provides a secure anchor point for the housing unit. This option is particularly useful in areas with soft ground, such as sand or loose soil, where a hard-surface pole may not be suitable. The sub-surface pole provides a sturdy and reliable support system for the housing unit, ensuring that the lifebuoy is easily accessible in case of an emergency.
The 30" Lifebuoy Integrated Housing within the range features the SOS400 30" Integrated Lockable Lifebuoy Housing Cabinet and two interlocking doors — for additional security, and protection of the encapsulated lifebuoy and throwing line.
Key Features & Equipment Benefits:
- Protection and visibility: The housing unit provides protection for the lifebuoy from the elements and increases its visibility, making it easier to locate in emergency situations.
- Durable construction: The housing unit is made of tough, durable materials that can withstand harsh weather conditions and resist damage from impact.
- Two pole options: The product comes with two pole options - a GRP hard-surface poles and GRP sub-surface poles - that provide stability and secure installation in different ground conditions.
- Easy installation: The housing unit is designed for easy installation, with a base plate that can be bolted securely to the ground or a sub-surface pole that can be concreted into the floor.
- Compatibility Options: The integrated housing units come in 24" and 30" lifebuoys size variations, making it a versatile solution for a range of applications. Including a lockable door option for the 30" lifebuoy integrated housing
- Compliance: The product complies with international safety standards and regulations, ensuring that it meets the requirements for emergency equipment in different settings.
- Long-lasting: The durable construction and corrosion-resistant materials ensure that the housing unit will last for many years, providing a reliable solution for emergency response.
- Low maintenance: The housing unit requires minimal maintenance, reducing the cost and effort of upkeep over its lifetime.
- Customisation options: The housing unit can be customised with optional features such as signage — for a professional touch.
Technical Information:
24" & 30" Integrated Lifebuoy Housing:
- Housing Material - High Density Polyethylene
- Height x Width: 809 x 794mm (to fit 24" lifebuoy), or 930 x 918mm (to fit 30" lifebuoy)
- Depth: 175m (24 inch Lifebuoy Housing), or 210mm (30 inch Lifebuoy Housing)
- Overall Height when Pole-mounted: 1806mm for 24" option, or 1858mm for 30 "option
- Colour: Orange
GRP Sub-Surface Mounting Option:
- Mounting Pole Material: Glass-Reinforced Plastic (GRP)
- Length: 2000mm
- Cross Section: Circular 60mm Diameter
- Base Plate: N/A
- Weight: 5kg (2 x GRP poles / pair)
GRP Hard-Surface Mounting Option:
- Mounting Pole Material: Glass-Reinforced Plastic (GRP)
- Length: 1500mm
- Cross Section: Circular 60mm Diameter
- Base Plate: 200mm diameter, 4 x bolt-holes, 13mm diameter
- 6.2kg ( 2 x GRP poles / pair)
Rail Clamps:
- 1 x set of rail clamps that can be used to fasten your lifebuoy housing directly to the railing.
- Includes two galvanised U-bolts, along with M10 nuts and washers
National Waterside Safety Guidlines:
Before installing life-saving equipment like lifebuoys and lifebuoy housings, it's crucial to conduct a thorough risk assessment, following the guidelines recommended by the National Water Safety Forum. At I.C. Brindle, we firmly believe that focusing on preventing water accidents is just as important as having the right rescue gear.
Should the decision be made to install lifebuoys and lifebuoy equipment, adherence to the following guidelines set forth by the National Water Safety (https://www.nationalwatersafety.org.uk/) is essential:
- Strategic Positioning: Lifebuoys should be strategically positioned in easily accessible locations, clearly visible, and preferably in the distinct colours of red or yellow to enhance visibility.
- Optimal Height: Ensure that lifebuoys are mounted at a maximum height of 1.7 metres above ground level for easy accessibility.
- Regular Maintenance: Regular inspections of lifebuoys and their housings are essential. Any signs of wear, damage, or tampering should prompt immediate replacement to guarantee their effectiveness in rescue situations.
- Considered Placement: The placement and spacing of life-saving equipment should be determined based on identified risks, Areas where people congregate or are prone to accidents should be given priority. Generally, spacing lifebuoys at intervals of 100 metres is recommended under standard conditions, ensuring that potential rescuers are not more than 50 metres away from the equipment at any given time.
SPECIFICATION
-
Set includes a range of integrated Lifebuoy Housing for either a 24", or 30" lifebuoy, with hard ground GRP poles, or sub-surface GRP pole mounting options.
-
Integrated Lockable Lifebuoy Housing Option Available, for those needing additional security
-
Designed for use in various water environments including marinas, ports, beaches, lakes, rivers, and construction sites
-
Housing unit option accommodate a 24" or 30" lifebuoy and includes an integrated clamping mechanism to securely hold it in place. Lockable options for 30 inch Lifebuoy Housing.
-
Made of durable materials that offer protection against weather elements, corrosion, and UV rays
-
Integrated door, designed in consultation with RNLI, provides easy-access and fast deployment of the lifebuoy and rescue line
-
Mounting Pole Option I: sub-surface GRP poles that are installed below the ground/water surface to provide a stable and secure foundation
-
Mounting Pole Option II: hard-surface GRP poles that are fitted directly to a hard surface, providing a stable and secure foundation
-
Mounting Option III:1 x set of rail clamps that can be used to fasten your lifebuoy housing directly to the railing. Includes two galvanised U-bolts, along with M10 nuts and washers
-
Low-maintenance sub-surface / hard surface GRP poles, reducing the need for regular maintenance
-
Includes a user instruction adhesive sticker for easy reference
-
Compliant with safety regulations and guidelines for water safety equipment.
-
Overall height when mounted: 1806mm (to fit 24" Lifebuoy), or 1858mm (to fit 30" lifebuoy)
-
Integrated Housing Depth: 175mm (to fit 24" lifebuoy), or 210mm (to fit 30" lifebuoy)
-
Integrated Housing Weight: 6.5kg (to fit 24 inch lifebuoy), or 12.5kg (to fit 30 inch lifebuoy)
-
Colour: Orange
Contact Us
Need any help? Get in touch with an expert via the contact form below.
What Comes in a Lifebuoy Set?
Each lifebuoy set includes, as standard, a lifebuoy—either a non-SOLAS 24" (1.3kg) lifebuoy or a SOLAS/MED approved 30" (2.5kg) lifebuoy. All lifebuoys come with an encapsulated throwing line or floating line, a durable housing cabinet, and mounting accessories such as poles for hard or soft ground, depending on your installation requirements.
What Lifebuoy Housing Options Are Available?
We offer a wide range of lifebuoy housing solutions suitable for 24" and 30" lifebuoys, designed to provide versatile protection across various marine and waterside environments. Options include an open-fronted cabinet—with an optional front cover available—or an integrated cabinet with built-in doors for added security and weather protection.
What Materials Are Used to Make the Lifebuoy Housing Cabinets?
All lifebuoy cabinets are made from high-quality, UV-resistant polyethylene, ensuring robust construction and long-lasting protection from the elements.
How Long Is the Throwing Line Provided with the Lifebuoy?
Both the 24-inch and 30-inch lifebuoys come with encapsulated throwing lines securely housed inside the lifebuoy. This design ensures the line remains protected and ready for quick, reliable deployment—20 metres for the 24-inch lifebuoy and 30 metres for the 30-inch version. Alternatively, 30-metre floating lines can be used, which clip directly to the lifebuoy. Longer line lengths are also available and are commonly used for commercial offshore applications, including bespoke throwline solutions.
What Sizes of Lifebuoys Are Available in The Sets?
Our lifebuoy sets include lifebuoys in two standard sizes: a 24-inch (1.3kg) non-SOLAS lifebuoy and a 30-inch (2.5kg) SOLAS and MED approved lifebuoy. Both options come with encapsulated throwing lines and are designed to support effective rescue performance across a wide range of water safety applications.
What Mounting Options Are Available for Lifebuoy Sets?
Cabinets can be wall-mounted by fixing directly through the unit using manual screws. You can also choose from galvanised or GRP sub-surface poles for soft ground, hard-surface base plate poles for concrete or paved areas, or rail clamps to securely attach the cabinet to railings.
What Is the Difference Between Premium and Budget Lifebuoy Sets?
Premium Lifebuoy Sets feature lockable cabinets with hinged doors, high-quality galvanised or GRP poles, and durable, colourfast materials designed for harsh marine environments. Budget Lifebuoy Sets offer essential lifebuoy and throw line equipment with robust, cost-effective housings and mounting options, suitable for standard applications and compliant with surveyor requirements. The premium and integrated cabinets are available in two sizes for 24” and 30” lifebuoys. Both include internal mouldings that securely hold the lifebuoy and encapsulated throwing line. Premium cabinets are open-fronted with an optional cover, while integrated cabinets have hinged doors that conceal the equipment, providing theft deterrence. Budget cabinets come in a single size, fitting lifebuoys up to 30”. The lifebuoy rests on a protruding peg, and an optional front cover is available for added protection.
What Types of Poles and Mounting Options Are Included?
Our lifebuoy sets offer a variety of mounting solutions to suit different installation requirements. Options include galvanised or GRP sub-surface poles for soft ground, hard-surface base plate poles for secure mounting on solid surfaces, and rail clamps for attaching cabinets to railings. You can also choose to mount your lifebuoys with Y-stands with stainless steel brackets.
Can the Lifebuoy Housing Cabinets Be Mounted on Railings?
Yes, the lifebuoy and housing sets come in configurations that can be securely mounted on railings using specially designed rail clamps in both premium and budget versions. This option is ideal for locations where ground installation is not possible or practical, ensuring safe and convenient access to the lifebuoy.
Are These Lifebuoy Sets Compliant with Safety Standards?
All of our lifebuoy and housing sets fully comply with current European standards and regulations for lifebuoy equipment, as established by the National Water Safety Forum (NWSF). This includes BS EN 14144 for lifebuoys and BS EN 14145 for lifebuoy holders, ensuring safety and compliance with International Maritime Organisation (IMO) regulations. Together, these standards guarantee reliable performance and secure housing for effective water rescue, giving you peace of mind as an end-user or surveyor.
How Do I Choose the Right Lifebuoy Set for What I Need?
Consider your installation surface—soft ground requires galvanised or GRP sub-surface poles, hard ground needs base plate poles, and railings require rail clamps. YOu can then choose between premium or budget sets depending on your budget and equipment needs. If you have any questions, please give us a call on +44 (0)1202 657814 or email info@icbrindle.com.
How Should Lifebuoy Sets Be Installed?
Install your lifebuoy sets at a height between 900mm and 1100mm from the ground or water level, ensure they are clearly visible, unobstructed, and spaced no more than 50 meters apart along watersides. At the bottom of our product description we have set out resources from the National Water Safety Forum to give you further guidance on how to install your lifebuoy equipment correctly and in-line with the correct safety parameters.
Who Uses These Lifebuoy Sets?
Our lifebuoy sets are suitable for councils, government agencies, maritime and construction industries, sports clubs, campsites, hotels, schools, and more.
