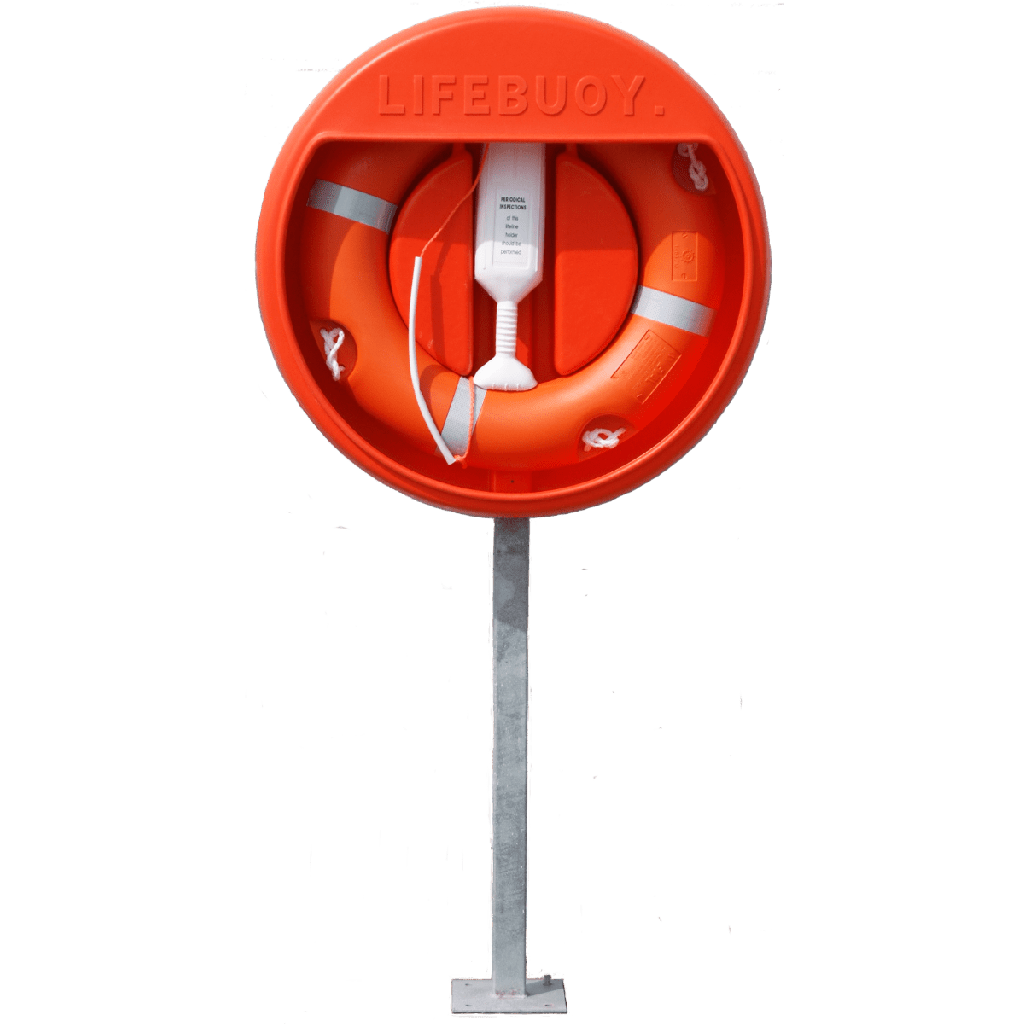

Lifebuoy, Line, Housing & Galv Pole - Hard-Surface Set for Fixing Directly to Hard Ground - Lifering , Cabinet , Throwing Line and Galvanised Base Plate Pole - SET 2D
The 24” or 30” Lifebuoy Set with Throw Line, Housing & Galvanised Base Plate Pole is a complete, ready-to-install water rescue solution designed for hard surfaces such as concrete, asphalt, jetties, and docks. This set makes sure that your essential lifesaving equipment is securely mounted, easily accessible, and highly visible in emergency situations.
LIFEBUOY, ENCAPSULATED THROWING LINE, HOUSING & BASE PLATE POLE - SET 2D
The 24” or 30” Lifebuoy Station with Encapsulated Throw Line, Housing & Fixed Base Plate Pole is a fully equipped water safety solution designed for permanent installation on solid surfaces such as concrete, tarmac, piers, and marinas. This lifesaving equipment set provides a secure, highly visible, and easily accessible rescue point, ensuring rapid response in water emergencies.
Each set includes a durable polyethylene lifebuoy, available in 24-inch (80N buoyancy) or 30-inch (180N buoyancy), both fitted with grab lines and retro-reflective tape for visibility in all conditions. The encapsulated throwing line—20m for the 24” lifebuoy and 30m for the 30” lifebuoy—is designed for quick deployment to assist someone in distress. A standard open-fronted lifebuoy housing cabinet protects the lifebuoy while allowing easy access when needed. The galvanised base plate pole provides a sturdy, bolt-down installation for securing the station in place, ensuring it remains upright and reliable in high-traffic public areas or exposed locations.
This lifebuoy station is built for long-term durability in both freshwater and saltwater environments, making it ideal for use by local authorities, marinas, water companies, and commercial operators. Designed to RNLI guidelines, it provides a trusted, compliant solution for riversides, canals, lakes, ports, and other waterside locations where fast, effective water rescue equipment is essential.
Key Features & Equipment Benefits:
- Durable, Weather-Resistant Lifebuoy: Made from tough polyethylene for long-lasting performance in harsh weather and marine environments.
- PU Foam-Filled Core: Provides superior buoyancy, ensuring effective water rescue in emergencies.
- High-Visibility Retro-Reflective Tape: Class 1 reflective bands enhance visibility in low-light and poor weather conditions.
- Integrated Grab Lines: Allows secure handhold for casualties, improving stability while awaiting rescue.
- Encapsulated Throwing Line: Tangle-free 20m (24” lifebuoy) or 30m (30” SOLAS lifebuoy) line for quick and accurate deployment.
- Open-Front Lifebuoy Housing: Protects the lifebuoy while ensuring rapid access during emergencies.
- Galvanised Base Plate Pole: Bolts securely to hard surfaces (concrete, tarmac, jetties), preventing movement and tampering.
- Stable & Permanent Mounting: Keeps the lifebuoy station upright and secure, ideal for public spaces and high-traffic areas.
- Freshwater & Saltwater Compatible: Designed for rivers, canals, lakes, ports, and marine environments.
- RNLI Guideline Compliance: Trusted by local authorities, marinas, and water safety organisations for public safety.
Technical Information
- Buoyancy 80 Newtons (24") or 180 Newtons (30")
- Outside diameter: 560mm (24") or 730mm (30")
- Depth: 90mm (24") or 115mm (30")
- Weight: 1.3kg (24") or 2.5kg (30")
Looking for different lifebuoy sets with housings? *Available Here*
Need advice and guidance on the right lifebuoy set for you? *CONTACT US*
National Waterside Safety Guidlines:
Before installing life-saving equipment like lifebuoys and lifebuoy housings, it's crucial to conduct a thorough risk assessment, following the guidelines recommended by the National Water Safety Forum. At I.C. Brindle, we firmly believe that focusing on preventing water accidents is just as important as having the right rescue gear.
Should the decision be made to install lifebuoys and lifebuoy equipment, adherence to the following guidelines set forth by the National Water Safety (https://www.nationalwatersafety.org.uk/) is essential:
- Strategic Positioning: Lifebuoys should be strategically positioned in easily accessible locations, clearly visible, and preferably in the distinct colours of red or yellow to enhance visibility.
- Optimal Height: Ensure that lifebuoys are mounted at a maximum height of 1.7 metres above ground level for easy accessibility.
- Regular Maintenance: Regular inspections of lifebuoys and their housings are essential. Any signs of wear, damage, or tampering should prompt immediate replacement to guarantee their effectiveness in rescue situations.
- Considered Placement: The placement and spacing of life-saving equipment should be determined based on identified risks, Areas where people congregate or are prone to accidents should be given priority. Generally, spacing lifebuoys at intervals of 100 metres is recommended under standard conditions, ensuring that potential rescuers are not more than 50 metres away from the equipment at any given time.
SPECIFICATION
Lifebuoy:
- Sizes: 24-inch or 30-inch
- Buoyancy: 80 Newtons (24-inch); 180 Newtons (30-inch)
- Outside Diameter: 560mm (24-inch); 730mm (30-inch)
- Depth: 90mm (24-inch); 115mm (30-inch)
- Weight: 1.3kg (24-inch); 2.5kg (30-inch)
Encapsulated Throwing Line:
- Length: 20m (for 24-inch lifebuoy); 30m (for 30-inch lifebuoy)
Galvanised Base Plate Pole:
- Material: Galvanised steel
- Installation: Designed for secure surface mounting on hard ground using a base plate
This lifebuoy set ensures that safety equipment is both accessible and securely installed, giving you peace of mind.
Contact Us
Need any help? Get in touch with an expert via the contact form below.
What Comes in a Lifebuoy Set?
Each lifebuoy set includes, as standard, a lifebuoy—either a non-SOLAS 24" (1.3kg) lifebuoy or a SOLAS/MED approved 30" (2.5kg) lifebuoy. All lifebuoys come with an encapsulated throwing line or floating line, a durable housing cabinet, and mounting accessories such as poles for hard or soft ground, depending on your installation requirements.
What Lifebuoy Housing Options Are Available?
We offer a wide range of lifebuoy housing solutions suitable for 24" and 30" lifebuoys, designed to provide versatile protection across various marine and waterside environments. Options include an open-fronted cabinet—with an optional front cover available—or an integrated cabinet with built-in doors for added security and weather protection.
What Materials Are Used to Make the Lifebuoy Housing Cabinets?
All lifebuoy cabinets are made from high-quality, UV-resistant polyethylene, ensuring robust construction and long-lasting protection from the elements.
How Long Is the Throwing Line Provided with the Lifebuoy?
Both the 24-inch and 30-inch lifebuoys come with encapsulated throwing lines securely housed inside the lifebuoy. This design ensures the line remains protected and ready for quick, reliable deployment—20 metres for the 24-inch lifebuoy and 30 metres for the 30-inch version. Alternatively, 30-metre floating lines can be used, which clip directly to the lifebuoy. Longer line lengths are also available and are commonly used for commercial offshore applications, including bespoke throwline solutions.
What Sizes of Lifebuoys Are Available in The Sets?
Our lifebuoy sets include lifebuoys in two standard sizes: a 24-inch (1.3kg) non-SOLAS lifebuoy and a 30-inch (2.5kg) SOLAS and MED approved lifebuoy. Both options come with encapsulated throwing lines and are designed to support effective rescue performance across a wide range of water safety applications.
What Mounting Options Are Available for Lifebuoy Sets?
Cabinets can be wall-mounted by fixing directly through the unit using manual screws. You can also choose from galvanised or GRP sub-surface poles for soft ground, hard-surface base plate poles for concrete or paved areas, or rail clamps to securely attach the cabinet to railings.
What Is the Difference Between Premium and Budget Lifebuoy Sets?
Premium Lifebuoy Sets feature lockable cabinets with hinged doors, high-quality galvanised or GRP poles, and durable, colourfast materials designed for harsh marine environments. Budget Lifebuoy Sets offer essential lifebuoy and throw line equipment with robust, cost-effective housings and mounting options, suitable for standard applications and compliant with surveyor requirements. The premium and integrated cabinets are available in two sizes for 24” and 30” lifebuoys. Both include internal mouldings that securely hold the lifebuoy and encapsulated throwing line. Premium cabinets are open-fronted with an optional cover, while integrated cabinets have hinged doors that conceal the equipment, providing theft deterrence. Budget cabinets come in a single size, fitting lifebuoys up to 30”. The lifebuoy rests on a protruding peg, and an optional front cover is available for added protection.
What Types of Poles and Mounting Options Are Included?
Our lifebuoy sets offer a variety of mounting solutions to suit different installation requirements. Options include galvanised or GRP sub-surface poles for soft ground, hard-surface base plate poles for secure mounting on solid surfaces, and rail clamps for attaching cabinets to railings. You can also choose to mount your lifebuoys with Y-stands with stainless steel brackets.
Can the Lifebuoy Housing Cabinets Be Mounted on Railings?
Yes, the lifebuoy and housing sets come in configurations that can be securely mounted on railings using specially designed rail clamps in both premium and budget versions. This option is ideal for locations where ground installation is not possible or practical, ensuring safe and convenient access to the lifebuoy.
Are These Lifebuoy Sets Compliant with Safety Standards?
All of our lifebuoy and housing sets fully comply with current European standards and regulations for lifebuoy equipment, as established by the National Water Safety Forum (NWSF). This includes BS EN 14144 for lifebuoys and BS EN 14145 for lifebuoy holders, ensuring safety and compliance with International Maritime Organisation (IMO) regulations. Together, these standards guarantee reliable performance and secure housing for effective water rescue, giving you peace of mind as an end-user or surveyor.
How Do I Choose the Right Lifebuoy Set for What I Need?
Consider your installation surface—soft ground requires galvanised or GRP sub-surface poles, hard ground needs base plate poles, and railings require rail clamps. YOu can then choose between premium or budget sets depending on your budget and equipment needs. If you have any questions, please give us a call on +44 (0)1202 657814 or email info@icbrindle.com.
How Should Lifebuoy Sets Be Installed?
Install your lifebuoy sets at a height between 900mm and 1100mm from the ground or water level, ensure they are clearly visible, unobstructed, and spaced no more than 50 meters apart along watersides. At the bottom of our product description we have set out resources from the National Water Safety Forum to give you further guidance on how to install your lifebuoy equipment correctly and in-line with the correct safety parameters.
Who Uses These Lifebuoy Sets?
Our lifebuoy sets are suitable for councils, government agencies, maritime and construction industries, sports clubs, campsites, hotels, schools, and more.
