Markus Overboard Rescue Nets MS.05 to MS.30 - Markusnets in Red PVC Container - Markusnet MS SOLAS - LR Type Approved Man Overboard
The MarkusNet is a versatile rescue device designed for rapid and effective man overboard (MOB) recovery along a ship's side or quay. This water rescue net enables a single rescuer to lift or hoist a casualty in seconds, regardless of the vessel's freeboard height, significantly reducing the risks during emergency situations. It is also compatible with crane systems for added versatility. The MarkusNet supports lifting or hoisting individuals in both standing and seated positions, ensuring efficient recovery.
For unconscious casualties, it facilitates a horizontal recovery position, meeting best practice standards to prevent further injury. This makes the MarkusNet an essential tool for reliable and safe MOB recovery operations.
MARKUS OVERBOARD RESCUE NETS
The MarkusNet is a rescue device that enables one person to react immediately and effectively to a man overboard situation along a ship side or quay. It enables rescuers to lift the victim in seconds, despite the freeboard height of the vessel, thereby greatly decreasing the level of danger—this man overboard (MOB) rescue net can also be used with a crane. The MarkusNet type MS is mandatory equipment on decked vessels in several countries. The MOB net is also standard equipment in all harbors in Iceland and is now the model for international standards. This rapid deployment MOB equipment provides the ability to lift/hoist crew while standing or siting in the net, it can also be used to lift/hoist unconscious crew in a horizontal position.
MarkusNet Type MS: LR / SOLAS Approved
- MS.05 - for use up to 5m freeboard height (Product no. 1 150 500)
- MS.10 - for use up to 10m freeboard height (Product no. 1 151 000)
- MS.20 - for use up to 20m freeboard height (Product no. 1 152 000)
- MS.30 - for use up to 30m freeboard height (Product no. 1 153 000)
- Lloyd's Registry / SOLAS type approved versions
- Packed in rigid case, preventing damage to MOB equipment
Key Features & Equipment Benefits
- Single-Person Deployment: Easily deployed by a single deck crew for quick response.
- Dual Operation Modes: Lifts an MOB manually with a deck hand or using a mechanical hoisting system (short boom and winch).
- Versatile Rescue Positions: Suitable for standing, sitting, or horizontal MOB rescues, manually or hoist-assisted.
- Emergency Ladder Capability: Can function as an emergency ladder on deck boats with low freeboards.
- Complete Rescue Kit: Includes a weighted throw line (25 metres) and lift lines (up to 40 metres) for safe in-water rescue operations.
- Safe Transfer Options: Once secured in the MarkusNet, the MOB can be transferred to an FRC, SOLAS vessel, or SAR airlift.
- Customisable Versions: Manufactured in multiple versions tailored to different freeboard heights.
- Type-Approved Options: Available in four standard LR/SOLAS type-approved versions for compliance and reliability.
- Compact Storage: Supplied in a container measuring L70 x W21 x H50 cm, occupying just 0.075 cubic metres.
Knots on lifting lines
Knots on the lifting lines are spaced every 50 cm, allowing up to four people to assist in lifting a casualty weighing up to 120 kg. These knots provide a secure grip, enabling rescuers to focus their strength on lifting rather than gripping the rope. For single-handed rescues, the weight can be split between the lines. By fastening each line and hoisting one metre at a time, rescuers can manage the lift more efficiently. An average casualty weighs 80–110 kg when lifted from the sea. With the knots' support, one person can realistically manage 50–60 kg manually.

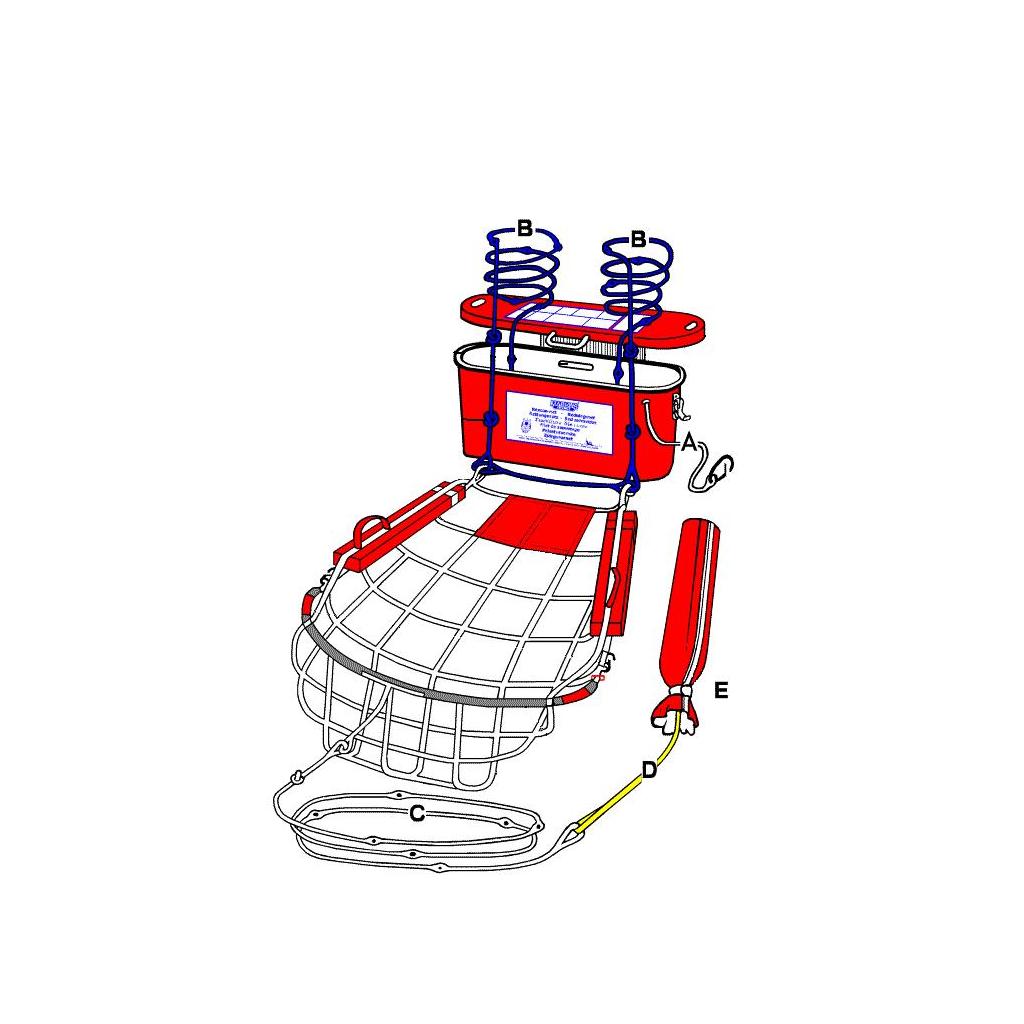

| Specification | MS.00 | MS.10 | MS.20 | MS.30 | MS.40 |
| A. Attachment Line | Variable | 14m | 14m | 14m | 14m |
| B. Two Lifting Lines Each | 0m | 10m | 20m | 30m | 40m |
| C. Lifting Lines with Knots | 0m | 5m | 5m | 5m | 5m |
| D. Throw-Line with Safety Loop | 25m | 25m | 25m | 25m | 25m |
| E. Safety-Loop for In-Water Rescue | 0.07m | 0.07m | 0.07m | 0.07m | 0.07m |
| Length of Net Structure | 1.8m | 1.8m | 1.8m | 1.8m | 1.8m |
| Buoyancy | 10kg | 10kg | 10kg | 10kg | 10kg |
| Strength | 500kg | 500kg | 500kg | 500kg | 500kg |
| Weight of Net Structure with Floats | 2kg | 2kg | 2kg | 2kg | 2kg |
| Total weight of Unit in Transport | 10kg | 12.5kg | 14.5kg | 16kg | 18kg |
SPECIFICATION
-
Weight of net structure: 4 Kg
-
Rigid container size: L70 x H51 x W21 cm
-
Total Weight:
| Product No. | For Heights up to | Total Weight Kg |
| 40020137-1 | 5m | 9 |
| 40020137-2 | 10m | 13 |
| 40020137-3 | 20m | 14 |
| 40020137-4 | 30m | 16 |
-
Pack includes:
- Screw pack
- Instruction poster
- Man overboard safety training guide
- Brochure and description sheet
- Lloyd´s Register EMEA approval document
- 7 min CD training video
Contact Us
Need any help? Get in touch with an expert via the contact form below.
What is a MarkusNet man overboard recovery net?
MarkusNet is a marine rescue system designed to help recover a person who has fallen overboard and bring them back aboard a vessel. The net supports the casualty during recovery and can be used with different lifting arrangements, depending on the model and the vessel's setup.
The range includes recovery nets for leisure boats, commercial vessels and offshore installations, as well as scramble nets, emergency ladders, Fast Rescue Craft (FRC) nets and evacuation nets.
How does a MarkusNet work?
A MarkusNet is deployed over the side of a vessel so that the casualty can be brought into or supported by the net. The crew can then recover the person manually or use a suitable lifting arrangement, depending on the model and the casualty's condition.
The MS series can support recovery in standing, seated or horizontal positions. For an unconscious casualty, the net can be used with a suitable lifting arrangement to support horizontal recovery. Some models can also be used as an emergency ladder.
The equipment must be installed and operated in accordance with the manufacturer's instructions. Crew should practise the recovery procedure as part of the vessel's man overboard plan.
What are the benefits of MarkusNet recovery equipment?
MarkusNet provides recovery options for different vessel types and operational requirements. Depending on the model, features include:
-
Different recovery positions: Selected systems support recovery in standing, seated or horizontal positions.
-
Manual or assisted lifting: Models can be used with suitable manual or mechanical lifting arrangements.
-
Multiple applications: Certain nets can also be used as scramble nets or emergency ladders.
-
Options for different freeboards: The range includes systems for smaller boats and vessels with higher recovery points.
-
Compact storage: Products are supplied in suitable storage bags or containers, depending on the model.
The available features and intended uses vary across the range, so check the specifications for the individual product before choosing equipment.
Can a MarkusNet be used as both a ladder and a recovery net?
Some MarkusNet products are designed for more than one application. Depending on the model, the equipment may be used to recover a person from the water, provide a scramble net for climbing aboard or act as an emergency ladder.
For example, the MS series can support casualty recovery and can also serve as an emergency ladder in suitable low-freeboard applications. The SCN scramble net range is designed for climbing and recovery, including horizontal recovery using an appropriate parbuckling arrangement.
Not every model has the same functions or approvals. Check the manufacturer's instructions to confirm the intended applications of the product you require.
What MarkusNet products do you stock and have in your range?
I.C. Brindle supplies a range of MarkusNet products for man overboard recovery, emergency access and specialist marine applications.
-
MS.00 Sailing and MS.02 Boating rescue nets: Recovery systems designed for smaller leisure boats, including sailing yachts and boats with suitable lifting arrangements.
-
MS.05 to MS.30 recovery nets: Systems for vessels and offshore installations with recovery heights of up to 5 m, 10 m, 20 m or 30 m, depending on the model.
-
SCN6-SCN12 scramble nets: Nets designed for climbing and casualty recovery, available in different configurations.
-
SCN4 escape and climbing net: A four-mesh-wide net designed for emergency climbing and relevant water-to-deck applications.
-
Fast Rescue Craft (FRC) nets: Nets designed for compatible rescue boats, including suitable RIBs and SOLAS-type rescue craft.
-
Emergency ladders: Ladders that allow a person in the water, where physically able, to climb back aboard.
-
Evacuation nets: Specialist systems designed for emergency evacuation arrangements on offshore vessels and platforms.
-
Accessories and fixing kits: Components such as link pipes, ropes and compatible fixing arrangements.
-
Markus Lifenet Servicing: I.C. Brindle also offers MarkusNet servicing through its approved UK service station
Which MarkusNet product should I choose?
The right product depends on the vessel, the distance between the water and the recovery point, the intended recovery method and any applicable approval requirements.
The right MarkusNet depends on the vessel, recovery height and intended application. The range includes the MS recovery nets for different vessel types, alongside a selection of scramble and escape nets.
The SCN4 MOB Net is designed for escape and climbing applications, with lengths available from 1.5 m to 12 m. The SCN6, SCN8, SCN10 and SCN12 scramble nets are available in different widths, from 1.2 m to 2.4 m, with vertical lengths from 4.5 m to 12 m for the larger versions. These models provide options for different vessel layouts and recovery requirements.
Other products include FRC nets for compatible rescue craft and direct access MOB emergency ladders for helping people climb back aboard where they are physically able to do so.
Need help choosing the right MarkusNet? Contact I.C. Brindle with your vessel type, measured freeboard, intended recovery arrangement and any approval requirements. Our team can help you identify suitable products and configurations.
What approvals does the MarkusNet range have?
Selected MarkusNet products hold marine approvals for specific applications. The MS.05 to MS.30 models are listed with Lloyd's Register type approval. Certain scramble net and FRC configurations also have specific information regarding adherance to SOLAS III /-17.
Any certification, approvals or acceptance depends on the product, model and intended application. Not every item in the MarkusNet range should be assumed to have the same status. Before ordering, check the relevant certificate and confirm that the selected equipment meets the requirements applicable to your vessel, its flag state and intended use.
What types of vessels carry or can use MarkusNet equipment?
MarkusNet offers recovery equipment for different vessel types and freeboards. The MS.00 Sailing and MS.02 Boating are designed for suitable smaller boats, while the MS.05 to MS.30 range covers different recovery heights for larger vessels.
The SCN4 provides an escape and climbing net option suitable for workboats and lifeboats, while the SCN6-SCN12 scramble nets offer different widths for larger vessels such as cargo ships, where higher freeboards can make recovery more challenging. Dedicated FRC nets are also available for compatible Fast Rescue Craft and RIBs which are close from water-to-deck.
The right model depends on your vessel's freeboard, attachment points, recovery arrangements and any applicable approval requirements.
Need help choosing the right MarkusNet? Contact I.C. Brindle with your vessel type, measured freeboard and intended application, and our team can help identify suitable options.
Does MarkusNet equipment require servicing or maintenance?
Follow the manufacturer's instructions for inspecting, cleaning, storing and maintaining your MarkusNet equipment. Check it regularly for damage or wear, and arrange an assessment if its condition is uncertain or it has been used in a rescue.
I.C. Brindle offers MarkusNet servicing - Contact I.C. Brindle with the product model and any available service history so we can discuss the appropriate next steps.
What MarkusNet spares and accessories are available?
I.C. Brindle supplies MarkusNet accessories, including SCN link pipes with ropes for compatible scramble nets. These are available for the SCN6, SCN8, SCN10 and SCN12 models. Fixing arrangements and other components depend on the net and vessel configuration.
What are MarkusNet link pipes used for?
MarkusNet link pipes with ropes provide an attachment arrangement for compatible scramble nets, helping crews deploy the equipment on the vessel. The correct link pipe depends on the net model, so check compatibility before ordering.
How do I choose the correct MarkusNet accessory?
The correct accessory depends on your MarkusNet model and the vessel's installation or deployment arrangement. For example, SCN link pipes are specific to the SCN6, SCN8, SCN10 and SCN12 net configurations. Check the product specifications or contact our team if you are unsure which component you need.
Where can I buy MarkusNet equipment from stock?
I.C. Brindle supplies a range of MarkusNet products, with selected products from the range in stock ready for despatch, including a wide range of recovery nets, scramble nets, FRC nets, emergency ladders, evacuation nets and compatible accessories.
Looking for MarkusNet equipment for your vessel? Contact I.C. Brindle with your vessel type, freeboard, intended application and any required approvals. Our team can help you identify the relevant products and available configurations.
