Jason's Cradle - Man Overboard Cradle, SOLAS Approved Jasons Cradle Retrieval System
SOLAS approved specialised MOB retrieval system. The Jason's Cradle is designed to retrieve / rescue people from the water horizontally, and at speed — even with high freeboard*.
*To determine the right sized cradle for you - typically allow 1m below the water line, and 1m above the freeboard. Allowing an additional length of 2m over the freeboard height - select this through our drop-down menu.
If unsure, please give us a call on +44 (0)1202 657814 or email info@icbrindle.com.

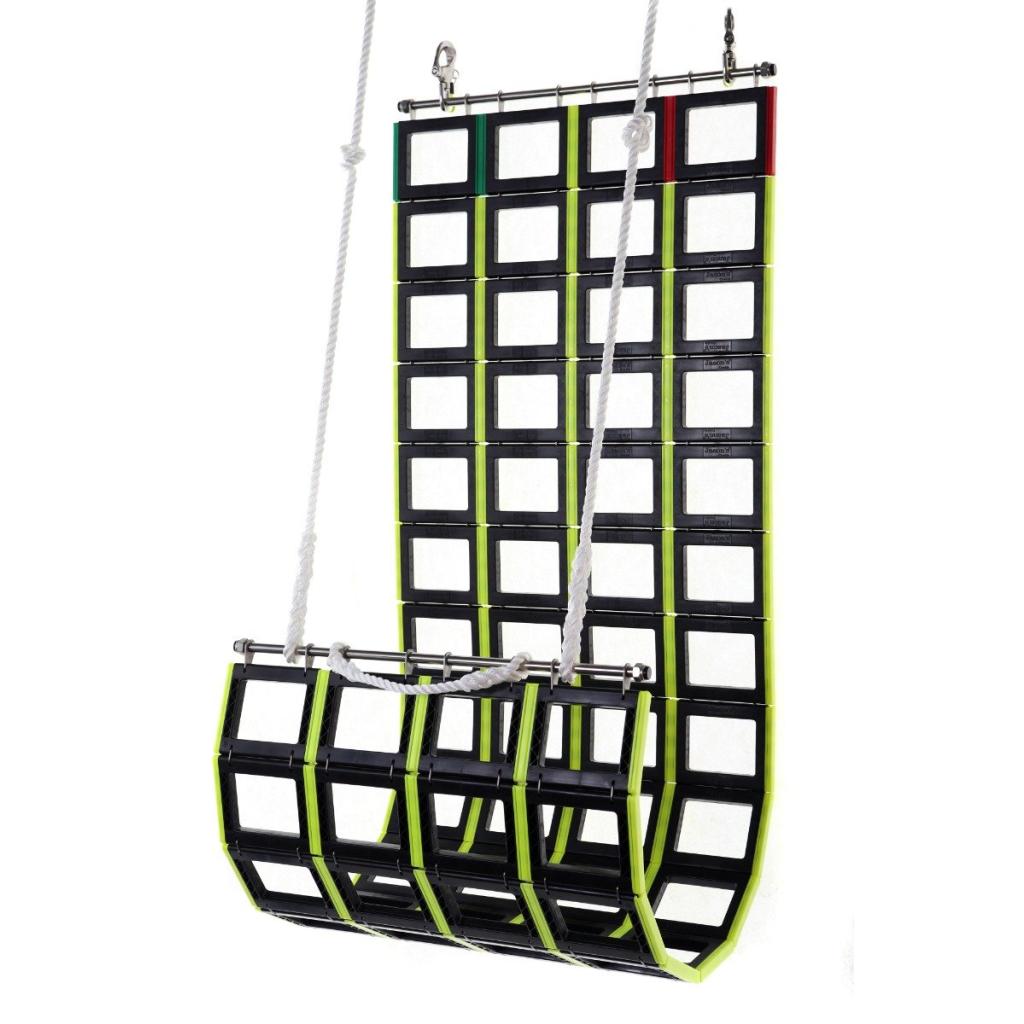

Jason's Cradle - MOB System
The Jason's Cradle is a maritime rescue device & Cradle MOB system used globally in every military, commercial, rescue, and leisure area within the marine sector. Using the Jasons Cradle as your preferred recovery system -allows you to retrieve casualties who are unable to assist themselves due to injury, or high freeboard.
What Size Cradle Do I Need?
To determine the right sized cradle for you - typically allow 1m below the water line, and 1m above the freeboard. Allowing an additional length of 2m over the freeboard height - select this through our drop-down menu.
How does the Jason's Cradle work?
- The Standard Cradle is simply fixed to the deck or rail enables for rapid deployment within seconds
- The Standard Cradle can be easily rolled up for
stowage - Deployment of the Cradle forms a non-collapsible scoop
- The casualty is guided into the cradle head first
- A Strop and/or Hauling lines are pulled to close the loop
- A co-ordinated & methodical lift takes place.
- Casualty is retrieved by rolling onto the deck in the medically preferred horizontal position
Key Features and Equipment Benefits:
- SOLAS Approved
- Complies with LSA code, Regulation I/1.2
- The Standard unit is suitable for most vessels with up to 5m freeboard.
- Offers 3 width options: The FRC Kit, The Scramble net, The Stretcher unit
- Available in widths up to 1.05m / 1050mm
- Reduces the possibility of “dry drowning” - known as Circum Rescue Collapse.
- Recovering a horizontal casualty in the water to survival craft or ship
Technical Information:
- SOLAS approved by Lloyd’s Register
- Suitable for 5m of freeboard
- 3 width options: The FRC Kit, The Scramble Net, The Stretcher unit
- Available in widths up to 1.05m
- Polythene HDPE, LDPE caps
- 16 stainless steel link components
- Delrin 100T High Tensile Plastic Rungs
- Breaking load: 3200k
- 25” rope strop & 5m—16mm hauling lines
- Supplied with snap shackles
- Tensile tested in excess of 1 metric tonne
|
Product Code: |
Product Description | Price (£) |
| 1MC-JCSTD03A |
Jason’s Cradle 530mm W x 2290mm L - Up to 1m |
2,040.27 |
| 1MC-JCSTD03B | Jason’s Cradle 530mm W x 2860mm L - 1m to 1.5m | 2,423.87 |
| 1MC-JCSTD03C | Jason’s Cradle 530mm W x 3430mm L - 1.5m to 2m | 2,184.00 |
| 1MC-JCSTD03D | Jason’s Cradle 530mm W x 4000mm L - 2m to 2.5m | 3,204.13 |
| 1MC-JCSTD03E | Jason’s Cradle 530mm W x 4570mm L - 2.5m to 3m | 3,456.55 |
| 1MC-JCSTD04A | Jason’s Cradle 710mm W x 2290mm L - Up to 1m | 2,040.27 |
| 1MC-JCSTD04B | Jason’s Cradle 710mm W x 2860mm L - 1m to 1.5m | 2,423.87 |
| 1MC-JCSTD04C | Jason’s Cradle 710mm W x 3430mm L - 1.5m to 2m | 2,814.00 |
| 1MC-JCSTD04D | Jason’s Cradle 710mm W x 4000mm L - 2m to 2.5m | 3,204.13 |
| 1MC-JCSTD04E | Jason’s Cradle 710mm W x 4570mm L - 2.5m to 3m | 3,599.87 |
| 1MC-JCSTD04F | Jason’s Cradle 710mm W x 5140mm L - 3m to 3.5m | 3,973.20 |
| 1MC-JCSTD04G | Jason’s Cradle 710mm W x 5710mm L - 3.5m to 4m | 4,354.00 |
| 1MC-JCSTD04H | Jason’s Cradle 710mm W x 6290mm L - 4m to 4.5m |
4,775.87 |
| 1MC-JCSTD04I | Jason’s Cradle 710mm W x 6870mm L - 4.5m to 5m | 5,144.53 |
| 1MC-JCSTD05A | Jason’s Cradle 880mm W x 2290mm L - Up to 1m | 2,404.27 |
| 1MC-JCSTD05B | Jason’s Cradle 880mm W x 2860mm L - 1m to 1.5m |
2,860.67 |
| 1MC-JCSTD05C | Jason’s Cradle 880mm W x 3430mm L - 1.5m to 2m | 3,346.00 |
| 1MC-JCSTD05D | Jason’s Cradle 880mm W x 4000mm L - 2m to 2.5m | 3,829.47 |
| 1MC-JCSTD05E | Jason’s Cradle 880mm W x 4570mm L - 2.5m to 3m | 4,289.93 |
| 1MC-JCSTD05F | Jason’s Cradle 880mm W x 5140mm L - 3m to 3.5m | 4,750.67 |
| 1MC-JCSTD05G | Jason’s Cradle 880mm W x 5710mm L - 3.5m to 4m | 5,232.67 |
| 1MC-JCSTD05H | Jason’s Cradle 880mm W x 6290mm L - 4m to 4.5m | 5,747.47 |
| 1MC-JCSTD05I | Jason’s Cradle 880mm W x 6870mm L - 4.5m to 5m | 6,216.00 |
| 1MC-JCSTD06A | Jason’s Cradle 1050mm W x 2290mm L - Up to 1m | 2,769.20 |
| 1MC-JCSTD06B | Jason’s Cradle 1050mm W x 2860mm L - 1m to 1.5m | 3,317.67 |
| 1MC-JCSTD06C | Jason’s Cradle 1050mm W x 3430mm L - 1.5m to 2m | 3,903.20 |
| 1MC-JCSTD06D | Jason’s Cradle 1050mm W x 4000mm L - 2m to 2.5m | 4,432.40 |
| 1MC-JCSTD06E | Jason’s Cradle 1050mm W x 4570mm L - 2.5m to 3m |
5,020.40 |
| 1MC-JCSTD06F | Jason’s Cradle 1050mm W x 5140mm L - 3m to 3.5m | 5,540.27 |
| 1MC-JCSTD06G | Jason’s Cradle 1050mm W x 5710mm L - 3.5m to 4m | 6,098.40 |
| 1MC-JCSTD06H | Jason’s Cradle 1050mm W x 6290mm L - 4m to 4.5m | 6,707.87 |
| 1MC-JCSTD06I | Jason’s Cradle 1050mm W x 6870mm L - 4.5m to 5m | 7,250.13 |
Specification
Features
-
Complies with LSA code, Regulation I/1.2
-
The Standard unit is suitable for most vessels with up to 5m freeboard.
-
Offers 3 width options: The FRC Kit, The Scramble net, The Stretcher unit
-
Available in widths up to 1.05m / 1050mm
-
Reduces the possibility of “dry drowning” - known as Circum Rescue Collapse.
-
Recovering a horizontal casualty in the water to survival craft or ship
-
SOLAS approved by Lloyd’s Register
-
Suitable for 5m of freeboard
-
3 width options: The FRC Kit, The Scramble Net, The Stretcher unit
-
Available in widths up to 1.05m
-
Polythene HDPE, LDPE caps
-
16 stainless steel link components
-
Delrin 100T High Tensile Plastic Rungs
-
Breaking load: 3200k
-
25” rope strop & 5m—16mm hauling lines
-
Supplied with snap shackles
-
Tensile tested in excess of 1 metric tonne
|
Product Code: |
Description |
Price (£) |
|
1MC-JCSTD03A |
Jason’s Cradle 530mm W x 2290mm L - Up to 1m |
2,040.27 |
|
1MC-JCSTD03B |
Jason’s Cradle 530mm W x 2860mm L - 1m to 1.5m |
2,423.87 |
|
1MC-JCSTD03C |
Jason’s Cradle 530mm W x 3430mm L - 1.5m to 2m |
2,184.00 |
|
1MC-JCSTD03D |
Jason’s Cradle 530mm W x 4000mm L - 2m to 2.5m |
3,204.13 |
|
1MC-JCSTD03E |
Jason’s Cradle 530mm W x 4570mm L - 2.5m to 3m |
3,456.55 |
|
1MC-JCSTD04A |
Jason’s Cradle 710mm W x 2290mm L - Up to 1m |
2,040.27 |
|
1MC-JCSTD04B |
Jason’s Cradle 710mm W x 2860mm L - 1m to 1.5m |
2,423.8 |
|
1MC-JCSTD04C |
Jason’s Cradle 710mm W x 3430mm L - 1.5m to 2m |
2,814.00 |
|
1MC-JCSTD04D |
Jason’s Cradle 710mm W x 4000mm L - 2m to 2.5m |
3,204.13 |
|
1MC-JCSTD04E |
Jason’s Cradle 710mm W x 4570mm L - 2.5m to 3m |
3,599.87 |
|
1MC-JCSTD04F |
Jason’s Cradle 710mm W x 5140mm L - 3m to 3.5m |
3,973.20 |
|
1MC-JCSTD04G |
Jason’s Cradle 710mm W x 5710mm L - 3.5m to 4m |
4,354.00 |
|
1MC-JCSTD04H |
Jason’s Cradle 710mm W x 6290mm L - 4m to 4.5m |
4,775.87 |
|
1MC-JCSTD04I |
Jason’s Cradle 710mm W x 6870mm L - 4.5m to 5m |
5,144.53 |
|
1MC-JCSTD05A |
Jason’s Cradle 880mm W x 2290mm L - Up to 1m |
2,404.27 |
|
1MC-JCSTD05B |
Jason’s Cradle 880mm W x 2860mm L - 1m to 1.5m |
2,860.67 |
|
1MC-JCSTD05C |
Jason’s Cradle 880mm W x 3430mm L - 1.5m to 2m |
3,346.00 |
|
1MC-JCSTD05D |
Jason’s Cradle 880mm W x 4000mm L - 2m to 2.5m |
3,829.47 |
|
1MC-JCSTD05E |
Jason’s Cradle 880mm W x 4570mm L - 2.5m to 3m |
4,289.93 |
|
1MC-JCSTD05F |
Jason’s Cradle 880mm W x 5140mm L - 3m to 3.5m |
4,750.67 |
|
1MC-JCSTD05G |
Jason’s Cradle 880mm W x 5710mm L - 3.5m to 4m |
5,232.67 |
|
1MC-JCSTD05H |
Jason’s Cradle 880mm W x 6290mm L - 4m to 4.5m |
5,747.47 |
|
1MC-JCSTD05I |
Jason’s Cradle 880mm W x 6870mm L - 4.5m to 5m |
6,216.00 |
|
1MC-JCSTD06A |
Jason’s Cradle 1050mm W x 2290mm L - Up to 1m |
2,769.20 |
|
1MC-JCSTD06B |
Jason’s Cradle 1050mm W x 2860mm L - 1m to 1.5m |
3,317.67 |
|
1MC-JCSTD06C |
Jason’s Cradle 1050mm W x 3430mm L - 1.5m to 2m |
3,903.20 |
|
1MC-JCSTD06D |
Jason’s Cradle 1050mm W x 4000mm L - 2m to 2.5m |
4,432.40 |
|
1MC-JCSTD06E |
Jason’s Cradle 1050mm W x 4570mm L - 2.5m to 3m |
5,020.40 |
|
1MC-JCSTD06F |
Jason’s Cradle 1050mm W x 5140mm L - 3m to 3.5m |
5,540.27 |
|
1MC-JCSTD06G |
Jason’s Cradle 1050mm W x 5710mm L - 3.5m to 4m |
6,098.40 |
|
1MC-JCSTD06H |
Jason’s Cradle 1050mm W x 6290mm L - 4m to 4.5m |
6,707.87 |
|
1MC-JCSTD06I |
Jason’s Cradle 1050mm W x 6870mm L - 4.5m to 5m |
7,250.13 |
